The torque installed be ckecked on your actual joint
and at normal production rate.
Adjust the setting if necessary.

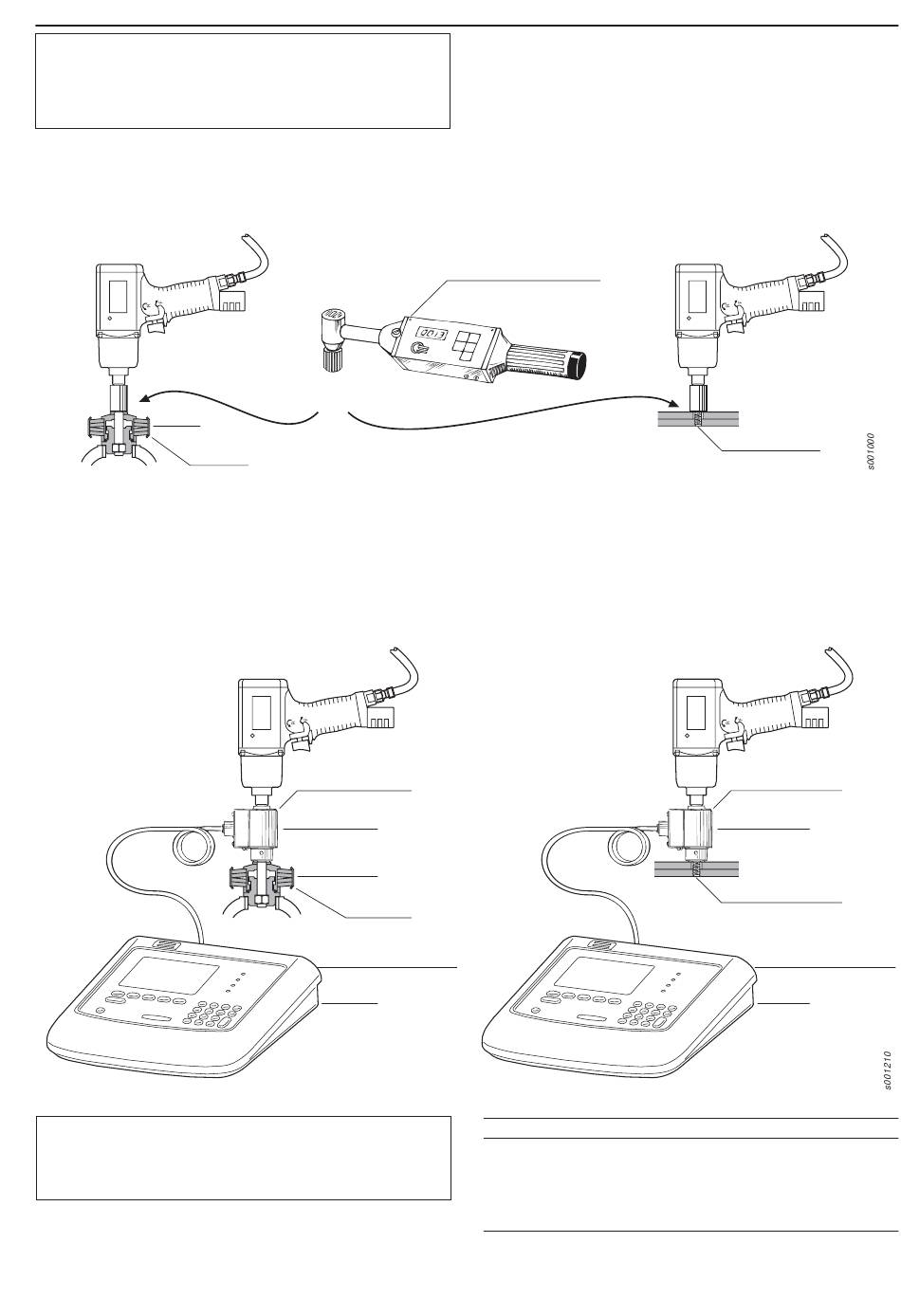

Fig. 17 Test method 1
Static measurement 1
Workshop
332
Test joint
Fig. 18 Test method 1
Dynamic measurement 1
Always verify the dynamic measurement by a
static check with a torque wrench (electronic).
Check the
torque installed
Workshop
Torque transducer
331
332
Test joint
Torque testing instrument
ACTA 3000
330
Atlas Copco Tools – No. 9836 1501 02
Torque wrench (electronic)
Ref. No. Ordering No.
330 –
331 8092 1129 25
332 4080 0790 92

Technical Instructions

Assembly line
Your actual joint
Assembly line
Torque transducer
Your actual joint
Torque testing instrument
NB Qty Description
1 Torque testing read-out
instrument
(Type : ACTA 3000)
1 In-line rotary transducer
(Type :IRTT 75 – 10)
1 Test joint
331
ACTA 3000
330
27
