TCS Compact

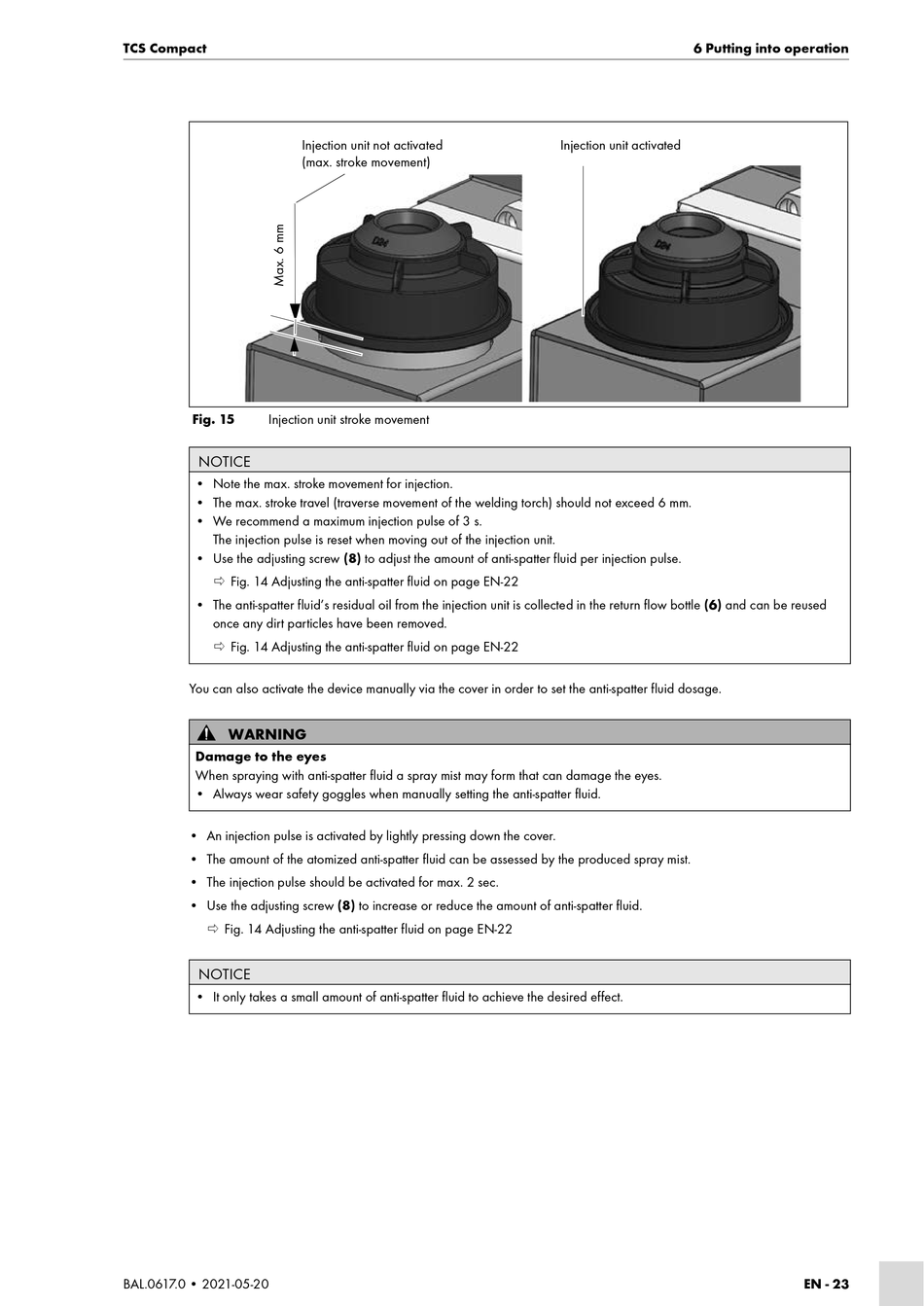

Fig. 15 Injection unit stroke movement
NOTICE
• Note the max. stroke movement for injection.
• The max. stroke travel (traverse movement of the welding torch) should not exceed 6 mm.
• We recommend a maximum injection pulse of 3 s.
The injection pulse is reset when moving out of the injection unit.
• Use the adjusting screw (8) to adjust the amount of anti-spatter fluid per injection pulse.
 Fig. 14 Adjusting the anti-spatter fluid on page EN-22
• The anti-spatter fluid's residual oil from the injection unit is collected in the return flow bottle (6) and can be reused
once any dirt particles have been removed.
 Fig. 14 Adjusting the anti-spatter fluid on page EN-22
You can also activate the device manually via the cover in order to set the anti-spatter fluid dosage.
WARNING
Damage to the eyes
When spraying with anti-spatter fluid a spray mist may form that can damage the eyes.
• Always wear safety goggles when manually setting the anti-spatter fluid.
• An injection pulse is activated by lightly pressing down the cover.
• The amount of the atomized anti-spatter fluid can be assessed by the produced spray mist.
• The injection pulse should be activated for max. 2 sec.
• Use the adjusting screw (8) to increase or reduce the amount of anti-spatter fluid.
 Fig. 14 Adjusting the anti-spatter fluid on page EN-22
NOTICE
• It only takes a small amount of anti-spatter fluid to achieve the desired effect.
BAL.0617.0 • 2021-05-20
Injection unit not activated
(max. stroke movement)
6 Putting into operation
Injection unit activated
EN - 23
