6 Putting into operation
6.3.4 Mounting the reamer
2
7
1 Reamer
2
Motor protection cap
3 Motor output shaft

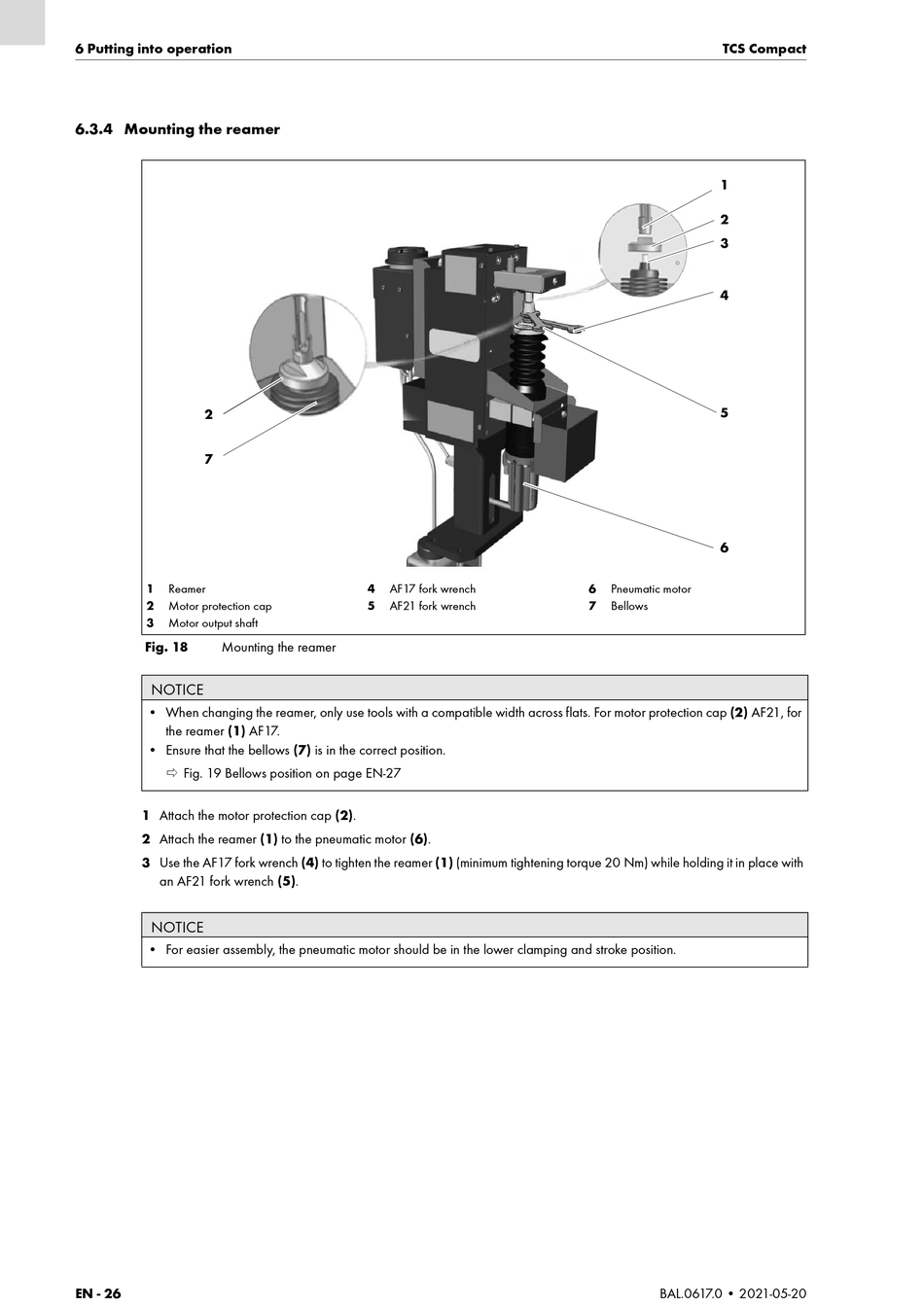

Fig. 18
Mounting the reamer
NOTICE
• When changing the reamer, only use tools with a compatible width across flats. For motor protection cap (2) AF21, for
the reamer (1) AF17.
• Ensure that the bellows (7) is in the correct position.
 Fig. 19 Bellows position on page EN-27
1 Attach the motor protection cap (2).
2 Attach the reamer (1) to the pneumatic motor (6).
3 Use the AF17 fork wrench (4) to tighten the reamer (1) (minimum tightening torque 20 Nm) while holding it in place with
an AF21 fork wrench (5).
NOTICE
• For easier assembly, the pneumatic motor should be in the lower clamping and stroke position.
EN - 26
4 AF17 fork wrench
5
AF21 fork wrench
TCS Compact
1
2
3
4
5
6
6 Pneumatic motor
7
Bellows
BAL.0617.0 • 2021-05-20
