6 Putting into operation
6.3 Injection unit
NOTICE
• Before setting up the injection unit, please check that a compatible gas nozzle seal is being used. This depends on the
gas nozzle diameter used.
• Inflowing compressed air sucks in the anti-spatter fluid and mixes it with the compressed air flow. Recommendation: The
period needed to sufficiently wet the gas nozzle/welding torch should not exceed 2-3 seconds.
1 Injection unit cover
2 Rubber seal for welding torch gas nozzle

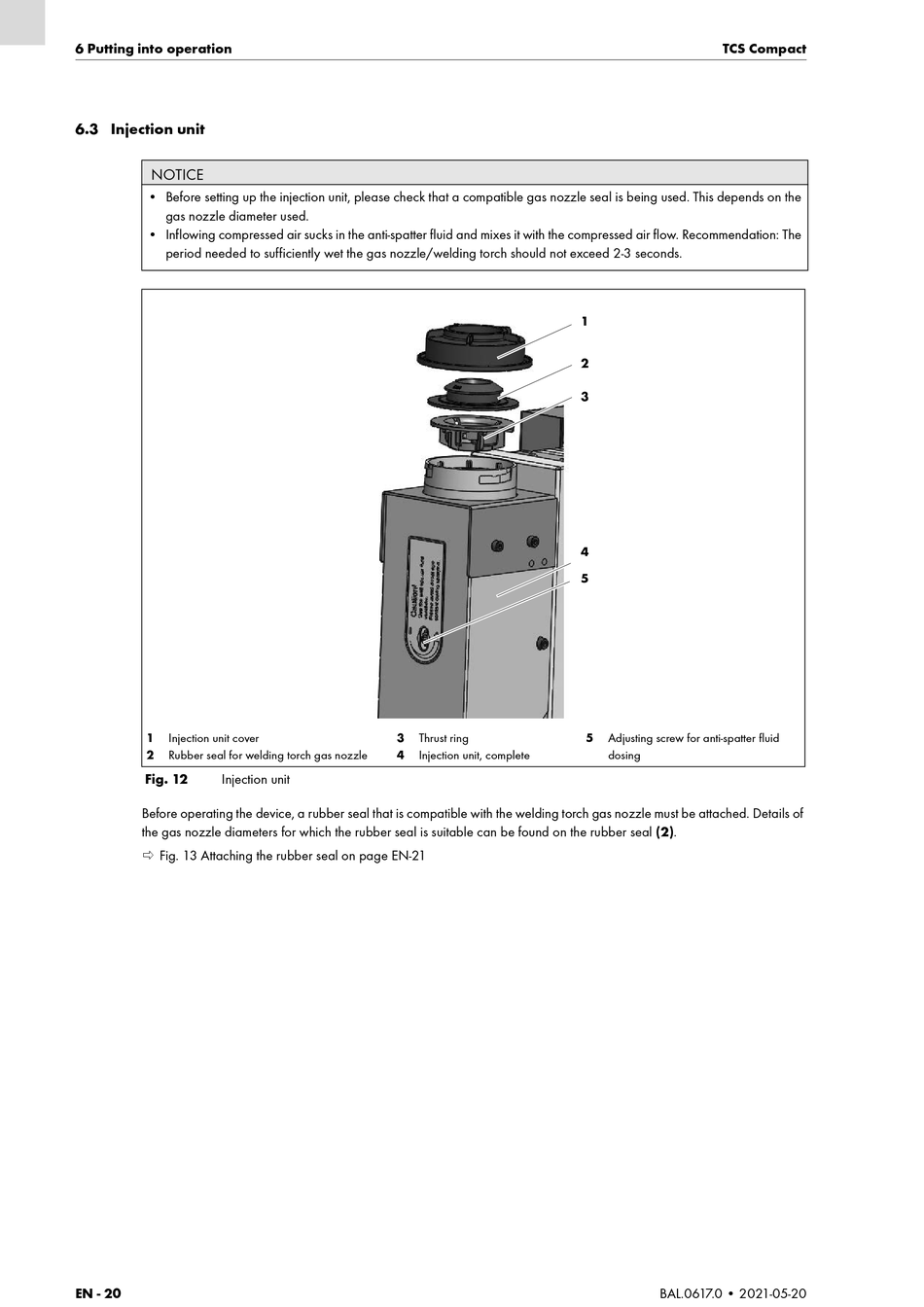

Fig. 12 Injection unit
Before operating the device, a rubber seal that is compatible with the welding torch gas nozzle must be attached. Details of
the gas nozzle diameters for which the rubber seal is suitable can be found on the rubber seal (2).
 Fig. 13 Attaching the rubber seal on page EN-21
EN - 20
3 Thrust ring
4 Injection unit, complete
TCS Compact
1
2
3
4
5
5 Adjusting screw for anti-spatter fluid
dosing
