6 Putting into operation
6.4 Setting up the pneumatic motor
9
1 Cleaning station
2 Welding torch

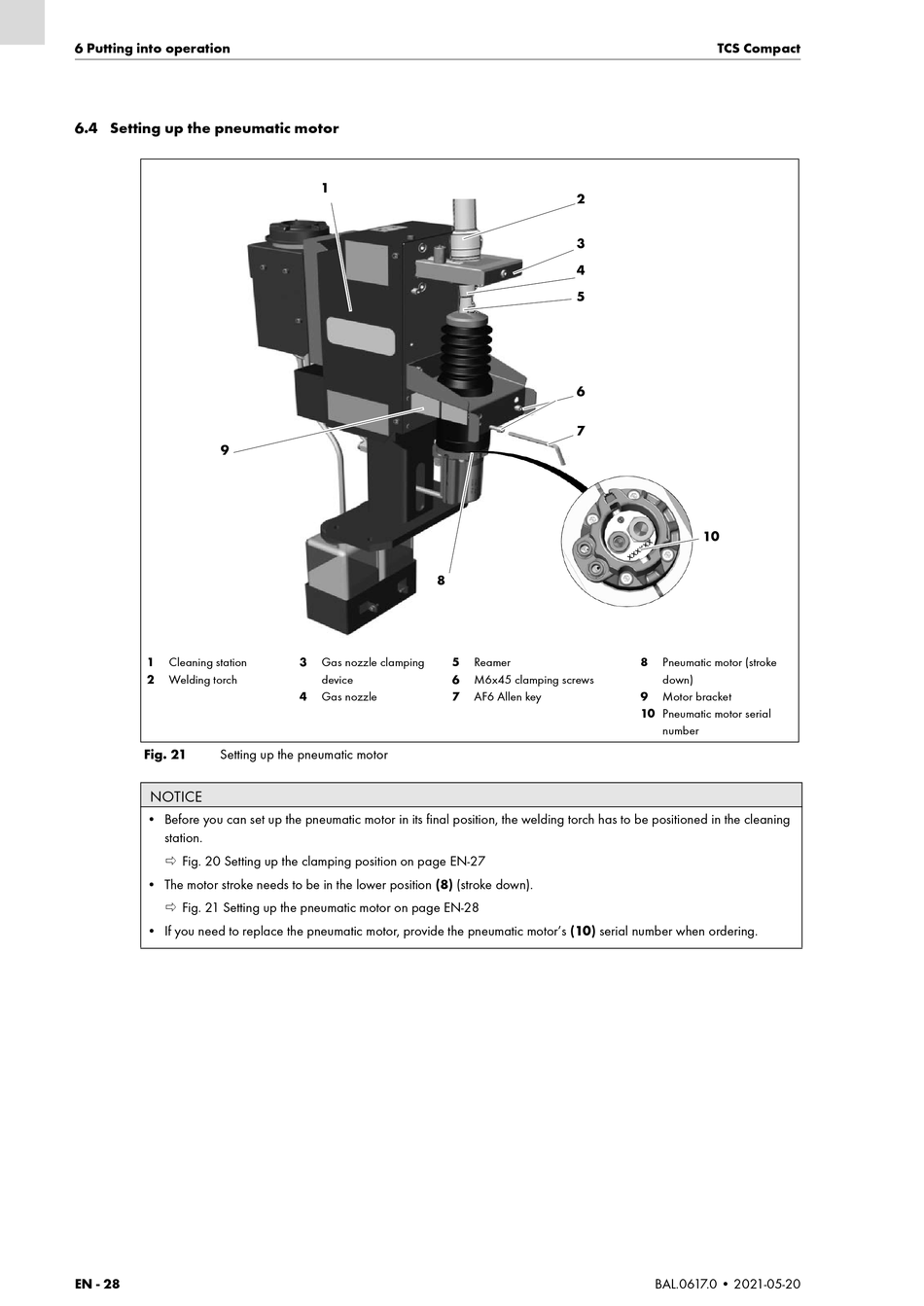

Fig. 21 Setting up the pneumatic motor
NOTICE
• Before you can set up the pneumatic motor in its final position, the welding torch has to be positioned in the cleaning
station.
 Fig. 20 Setting up the clamping position on page EN-27
• The motor stroke needs to be in the lower position (8) (stroke down).
 Fig. 21 Setting up the pneumatic motor on page EN-28
• If you need to replace the pneumatic motor, provide the pneumatic motor's (10) serial number when ordering.
EN - 28
1
8
3 Gas nozzle clamping 5
device 6
4 7
Gas nozzle
2
3
4
5
6
7
Reamer 8
M6x45 clamping screws
9
AF6 Allen key
10 Pneumatic motor serial
TCS Compact
10
Pneumatic motor (stroke
down)
Motor bracket
number
