TCS Compact

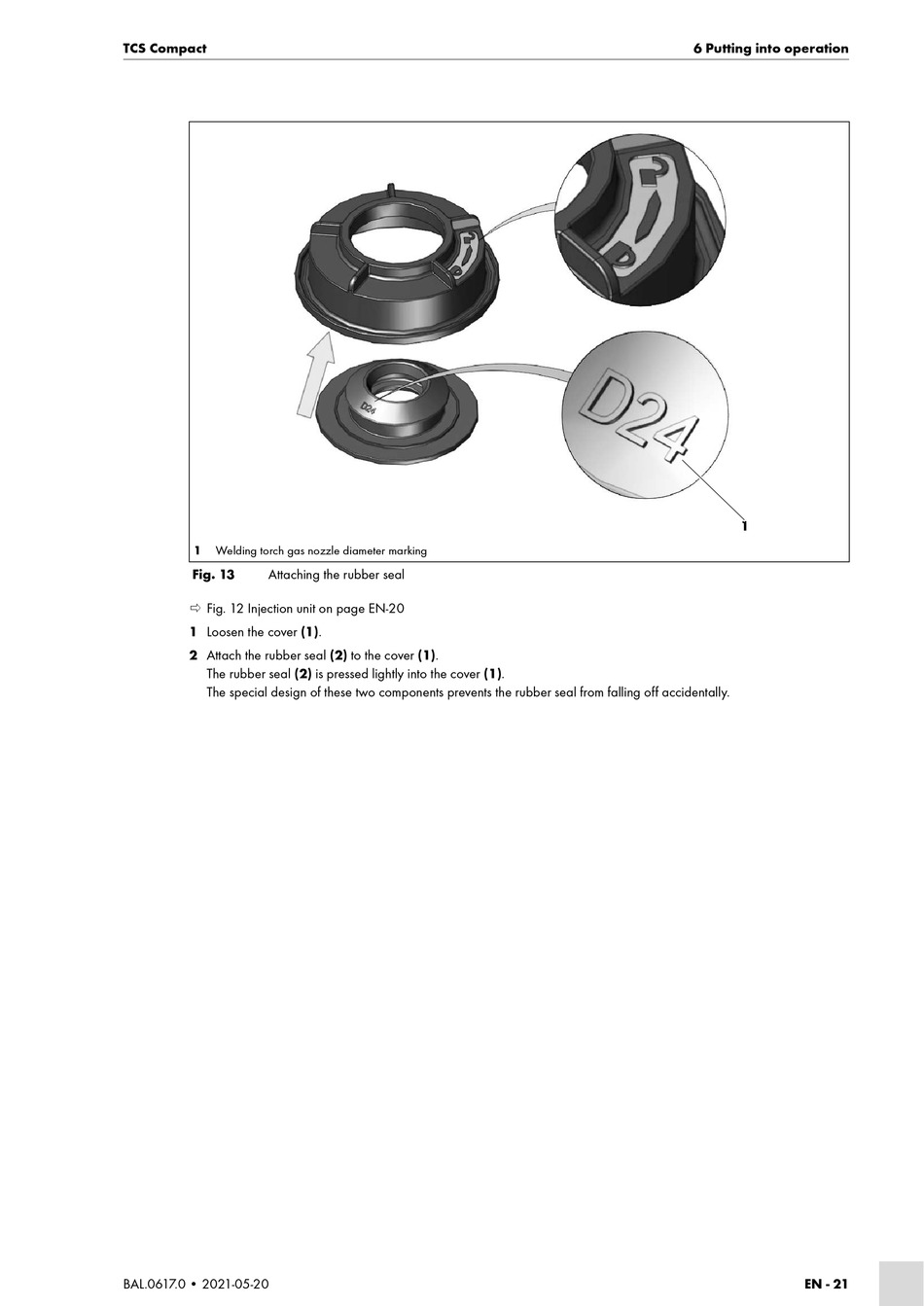

1 Welding torch gas nozzle diameter marking
Fig. 13
Attaching the rubber seal
 Fig. 12 Injection unit on page EN-20
1 Loosen the cover (1).
2 Attach the rubber seal (2) to the cover (1).
The rubber seal (2) is pressed lightly into the cover (1).
The special design of these two components prevents the rubber seal from falling off accidentally.
BAL.0617.0 • 2021-05-20
6 Putting into operation
1
EN - 21
