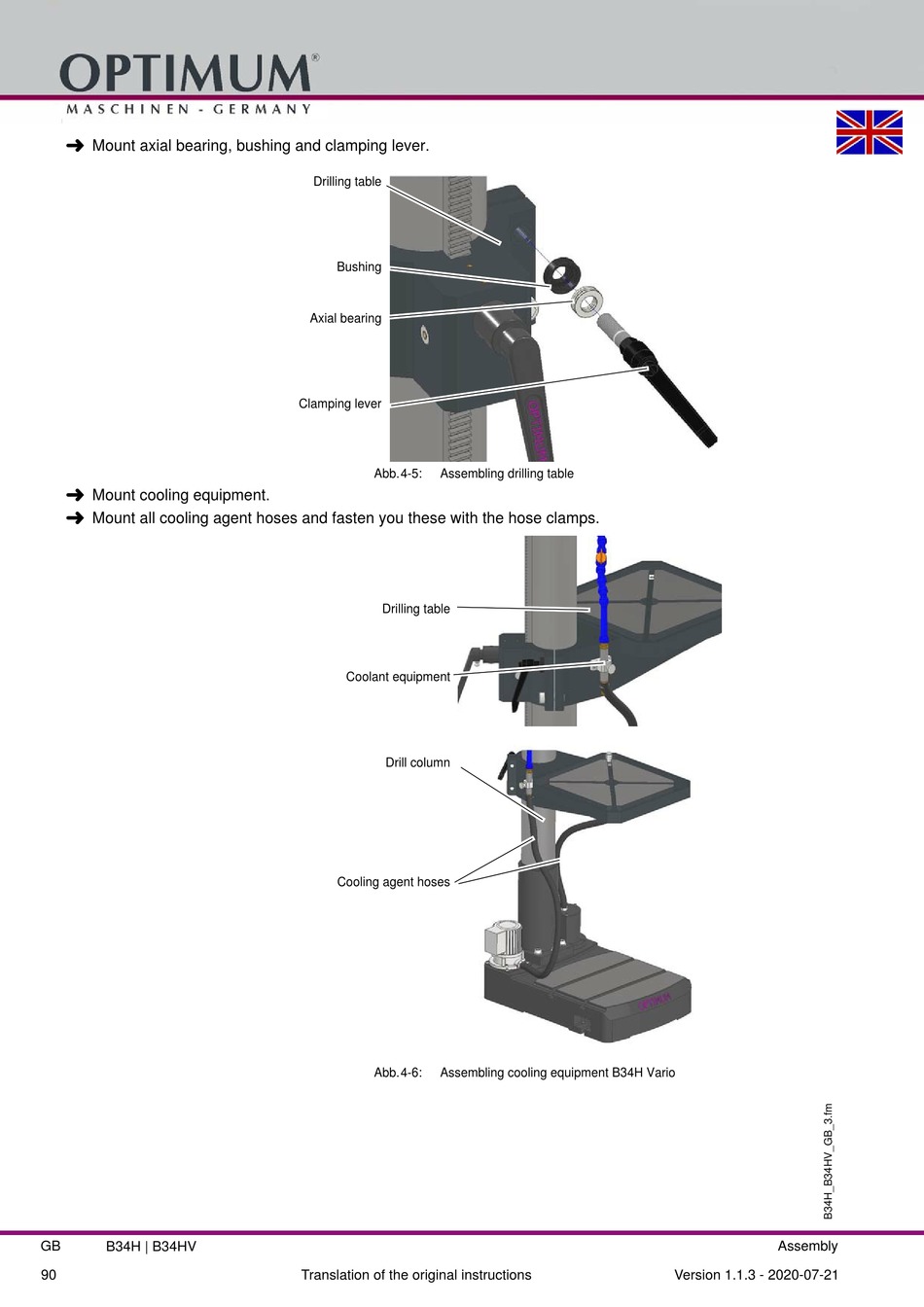

Mount axial bearing, bushing and clamping lever.

Mount cooling equipment.

Mount all cooling agent hoses and fasten you these with the hose clamps.
GB B34H | B34HV
90
Drilling table
Bushing
Axial bearing
Clamping lever
Abb.4-5: Assembling drilling table
Drilling table
Coolant equipment
Drill column
Cooling agent hoses
Abb.4-6: Assembling cooling equipment B34H Vario
