4.2

Safety

Use the machine only under the following conditions:

The machine is in proper working order.

The machine is used as prescribed.

The operating manual is followed.

All safety devices are installed and activated.
All failures should be eliminated immediately. Stop the machine immediately in the event of any
anomaly in operation and make sure it cannot be started up accidentally or without authoriza-
tion
Notify the person responsible immediately of any modification.

Safety measures during operation on page 62
4.2.1

Control panel

Gear selector switch
Speed table
Coolant pump ON / OFF
Step switch and change-over
switch motor
Push button
rotation direction change
Push button "OFF"
Operating mode selection switch
"Threading or Drilling" is selected with the selection switch.
Drill depth stop
The geared drill has two micro switches in the depth stop.
The position of adjustable switching point is adjusted with the drill depth stop screw.
Push button direction of rotation
The push button changes the direction of rotation of the drill spindle. The push button change of
direction is only active in tapping mode.
Steps / rotation switch
With the steps / rotation switch the speed stage or direction of rotation of the motor is selected.
EN B40 GSP
78

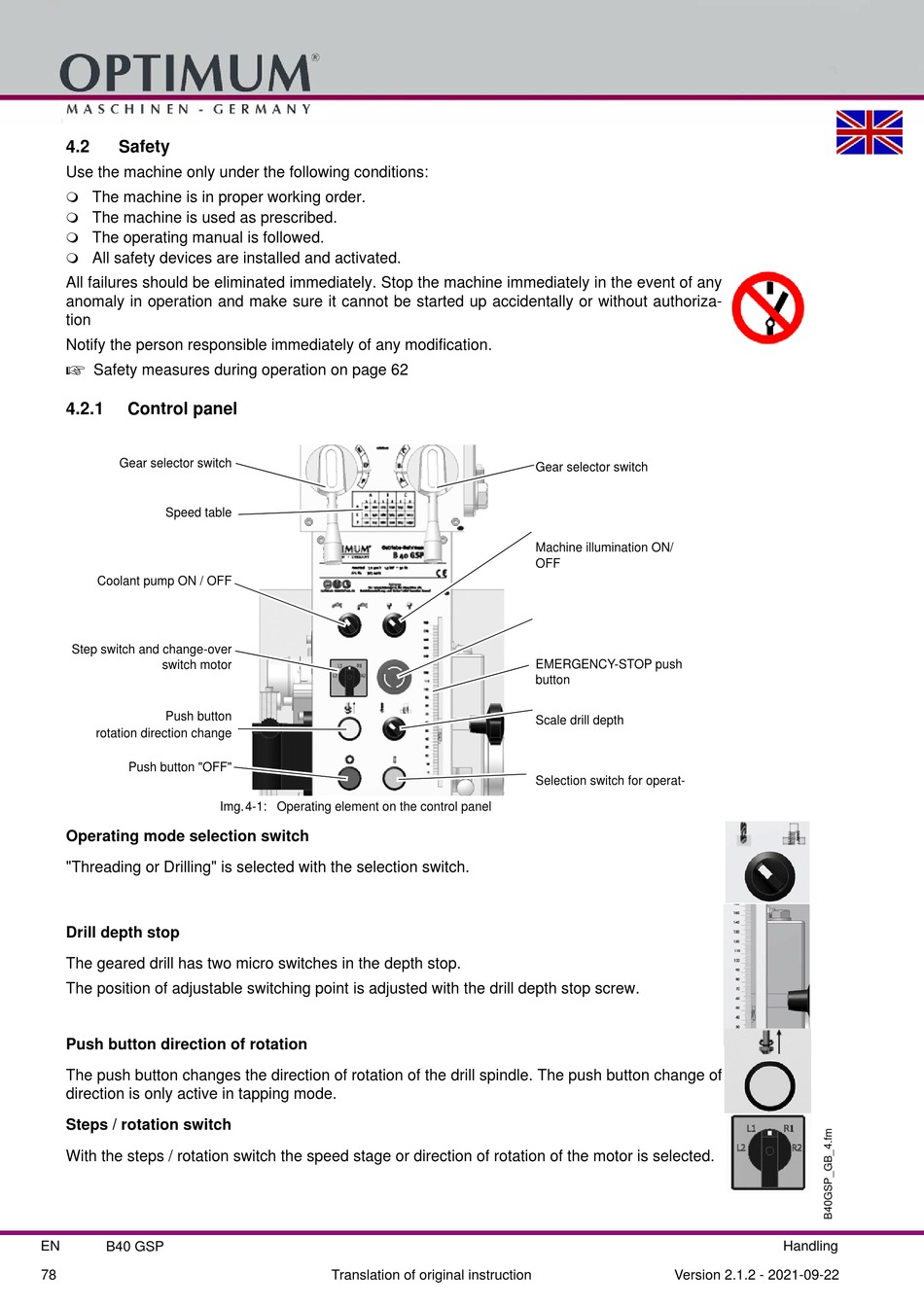

Img.4-1: Operating element on the control panel
Translation of original instruction
Gear selector switch
Machine illumination ON/
OFF
EMERGENCY-STOP push
button
Scale drill depth
Selection switch for operat-
