Interval Where?
Start of shift
after every
maintenance
or repair work
EN B40 GSP
90
What? How?

Check the oil level in the inspection glass The glass oil level (
deposed ) should be half-covered.

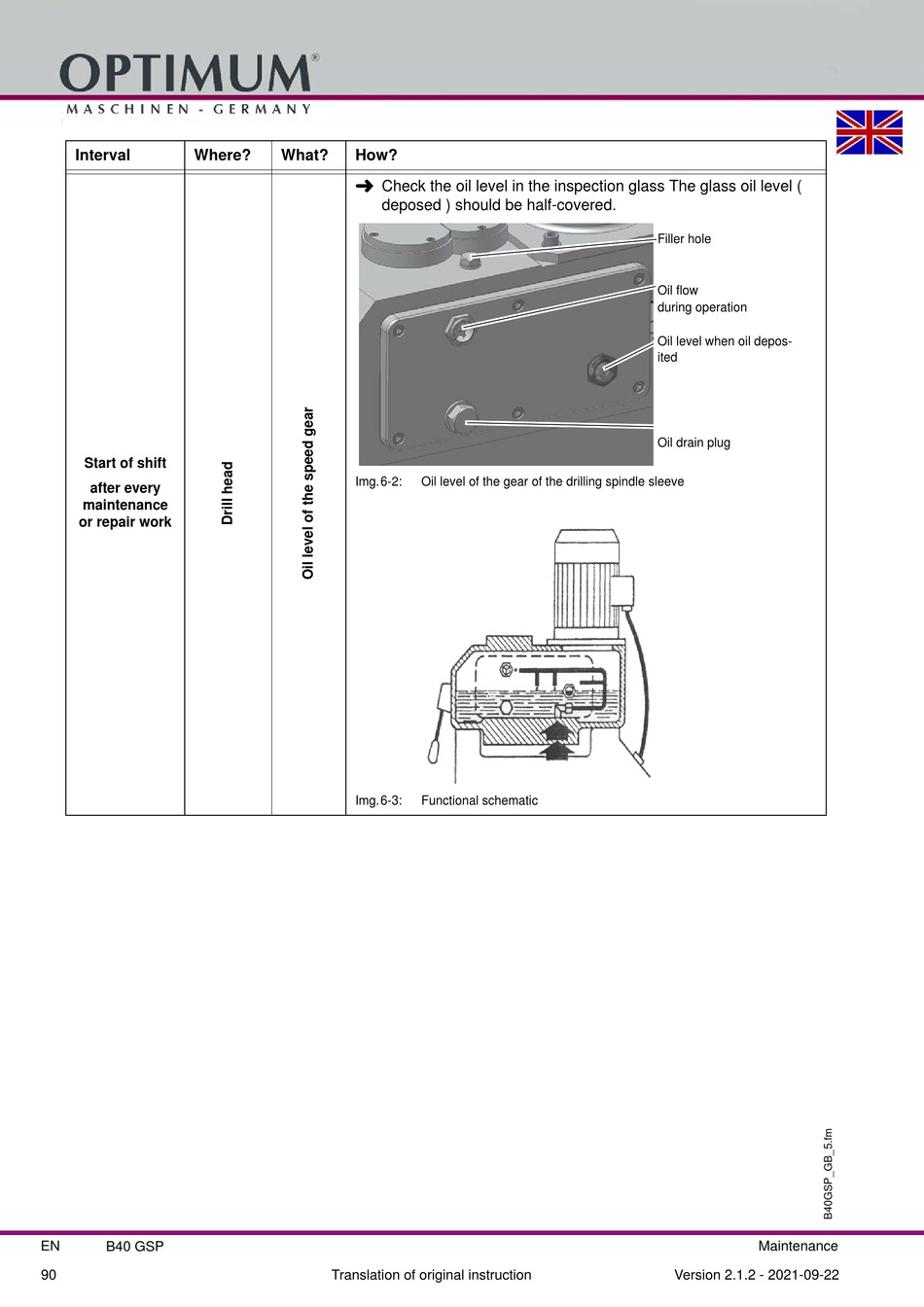

Img.6-2: Oil level of the gear of the drilling spindle sleeve
Img.6-3: Functional schematic
Translation of original instruction
Filler hole
Oil flow
during operation
Oil level when oil depos-
ited
Oil drain plug
