5.2.1

Display

5.2.2

Key assignment

The assignment of the function keys is as follows:
Exit the menu
level
Fig. 19: Key assignment
5.3 Local operation
5.3.1

Enable configuration

If necessary, enter the 4-character user code (see Section 5.3.2).
5.3.2

Lock configuration

Enter a 4-character user code on the control console to lock the device configuration
(see "Description of device functions" on page 90.). Enter the user code using the
CODE function in the menu level SET - BASIC SETTINGS.
Set the sampler using four operating keys. The
function of the keys is shown on the display.
Operation is menu-guided.

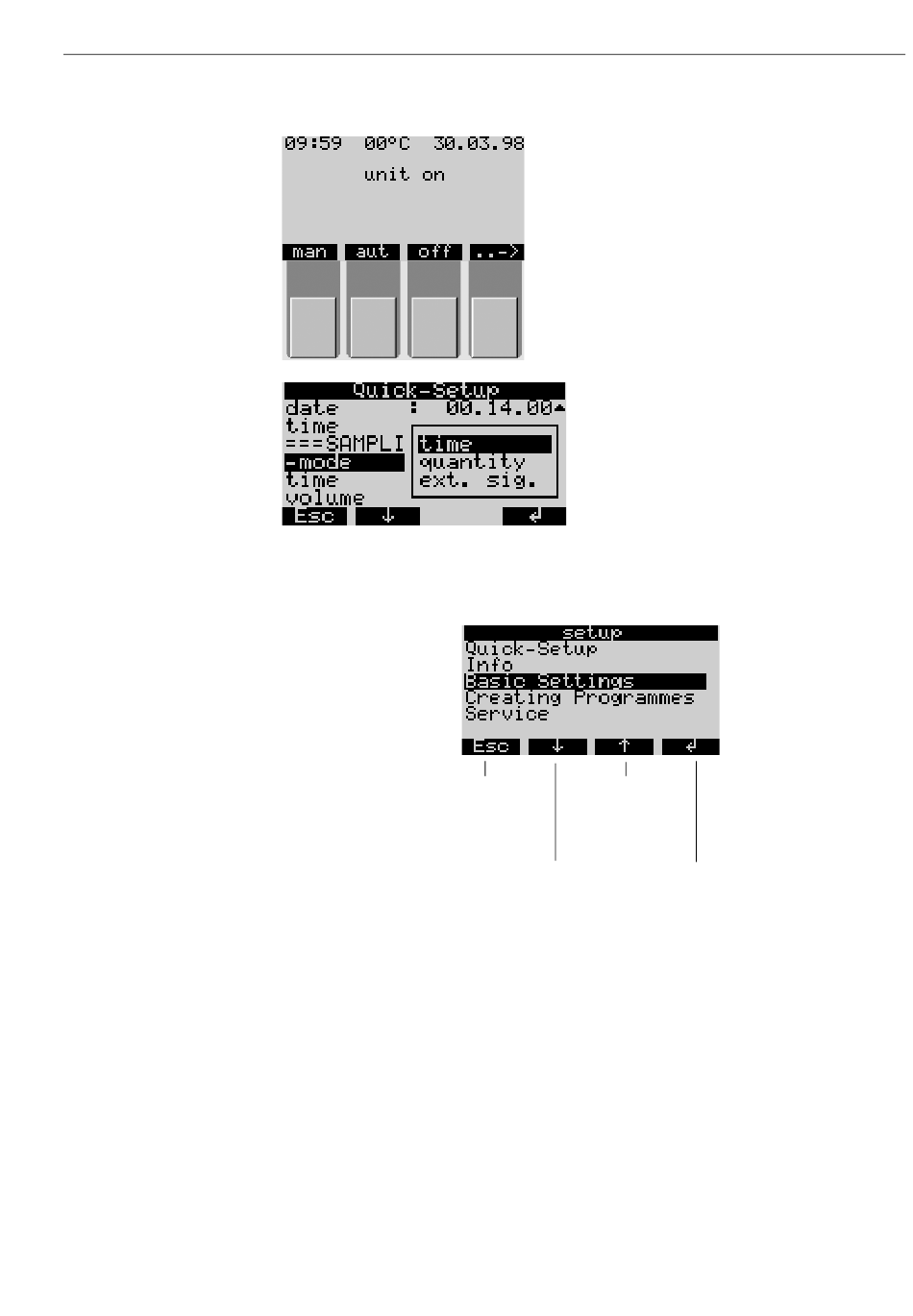

Fig. 17:Display
Picklists automatically display the possible
settings. The selected setting (here time,
quantity, ext. sig.) is indicated by a black bar
(time in the figure).
Fig. 18: Picklists (example: 'Quick Setup')
Move bar up;
increase
active
character or
value
Move bar
Accept selected
down;
setting or value
decrease
active
character or
value
