ASP station 2000
Endress+Hauser
A PC (9-pin SUB-D plug) is connected to the connection socket (4-pin, female) for the
RS232 digital interface using the RS232 interface cable (4-pin, male). The
Endress+Hauser device software ReadWin 2000 allows remote configuration and
measuring data polls.
4.1.8
Connecting an RS485 interface (optional)
The RS485 interface is located on the terminal board.
(Wiring diagram → Page 69: terminal board)
4.1.9
Connecting PROFIBUS-DP (optional)
With Profibus coupler on top-hat rail in electronics compartment, connection via RS232;
baudrate 9600 kBaud.

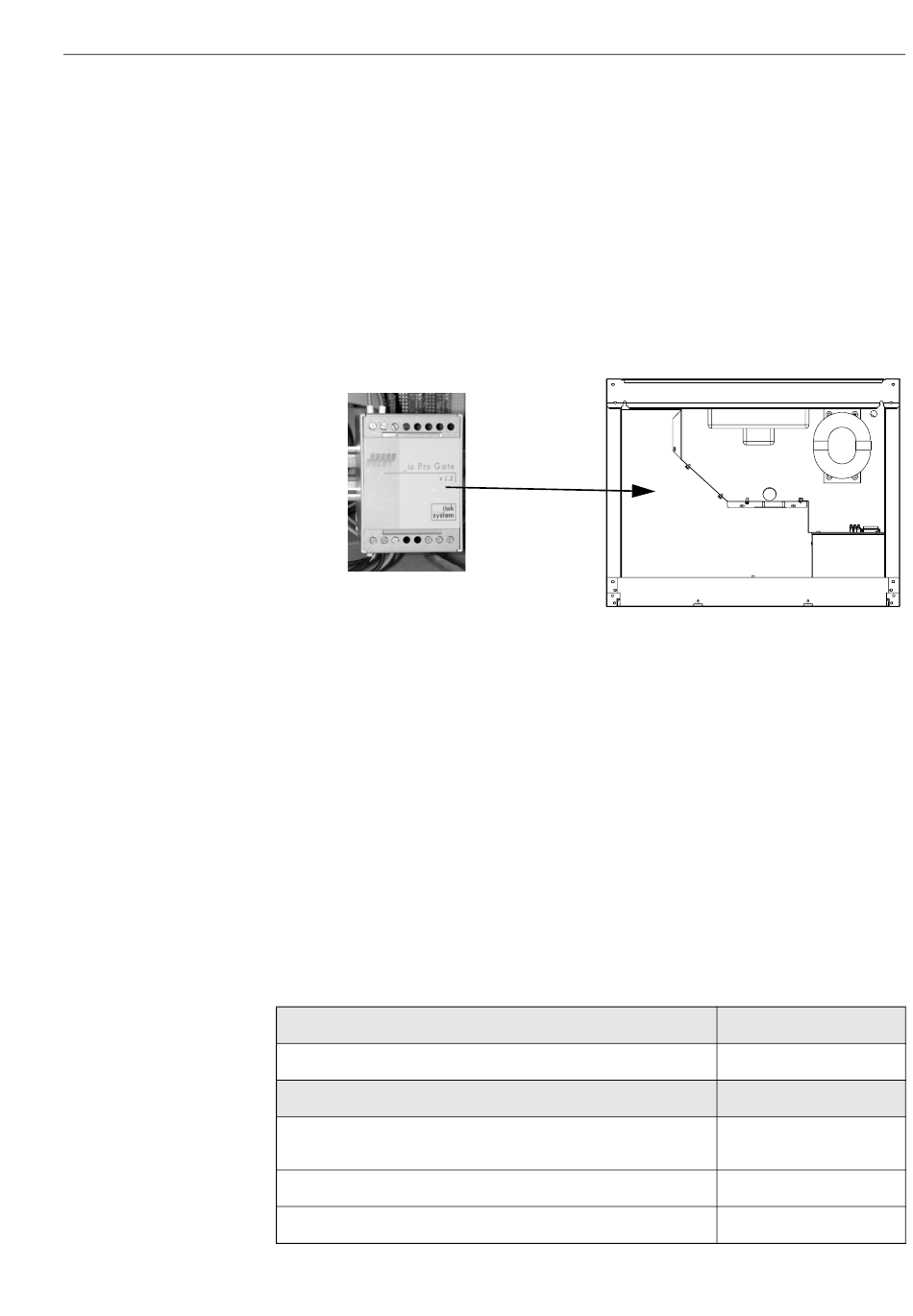

Fig. 14: Profibus coupler
For additional information on the connection and wiring of the Profibus-DP module, see
the additional description in the Operating Instructions of the ASP2000 Profibus coupler
(see 10.10 "Documentation").
4.2
Degree of protection
The individual components meet the requirements of the following protection types:
Controller:
Sample compartment with closed doors:
Electronics compartment:
4.3
Post-connection check
After completing the device's electrical connections, carry out the following checks:
Device status and specifications
Is the device or cable damaged (visual inspection)?
Electrical connection
Does the supply voltage match the information on the nameplate?
Do the cables used meet the relevant specifications?
Are the mounted cables relieved of tension?
IP 65
IP 54
IP 43
Notes
−
Notes
Compare nameplate on the
device
→ Section 4.1
−
4 Wiring
71
