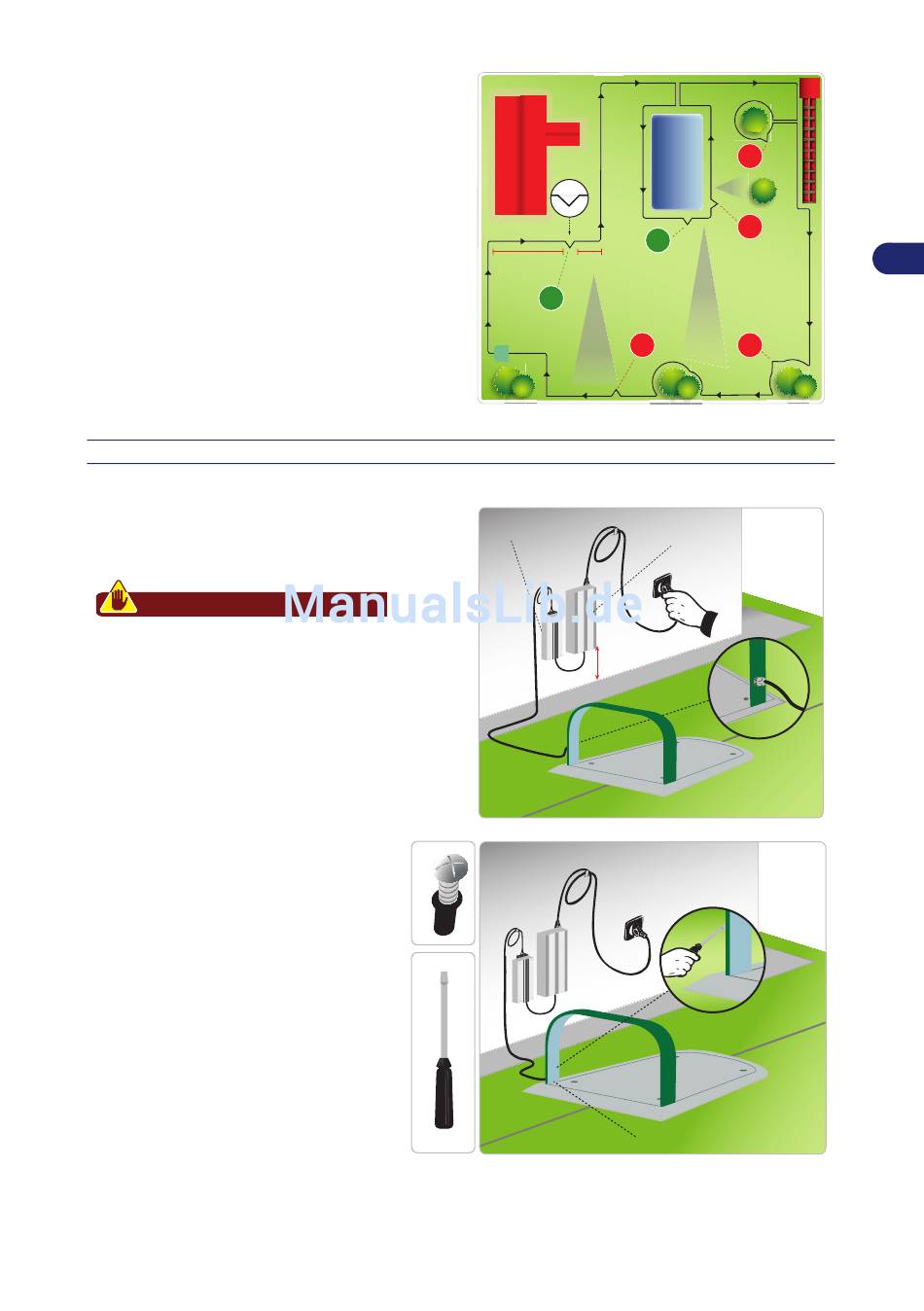

The illustration provides some useful
tips on how to correctly setup the ro-
bot for a quick re-entry.
INSTALLATION OF CHARGING STATION AND POWER SUPPLY-TRANSMITTER UNIT
1. Identify the installation area of
the charging station and power
supply-transmitter unit.
Warning - Caution
Before carrying out any operations,
disconnect the robot from the
mains power. Position the power
supply-transmitter unit in an area
that cannot be reached by children.
For example, at a height above
160 cm. (63.00 in.)
2. Install the power supply-transmitter
unit (A-B).
3. . Remove the protection (L).
50
40 40
min. 200 cm. min. 150 cm.
(78,74 inc.) (59,05 inc.)
OK
(B)
transmitter
H. min. 160 cm
(63.00 inc.)
25
NO
POOL
NO
OK
NO NO
(A)
current power supply unit
protection (L)
User's manual
