- There must be a straight area of 200 cm (78.74 in.) in front of the base.
• The charging station must be well fastened to the ground. To prevent a small step from for-
ming in front of the base, position a small piece of fake grass at its entrance as prevention.
Alternatively, remove part of the grassy surface and install the base fl ush with the grass.
The charging station is connected to the power supply-transmitter unit via a cord that must
move away from the charging station on the outside of the cutting area.
• Position the power supply-transmitter unit
according to the following rules:
- In a well-ventilated area protected against
atmospheric agents and direct sunlight.
- Preferably inside your home, a garage or
shed.
- If positioned outdoors, make sure it is
protected in a well-ventilated box away
from direct sunlight and water. Do not
position in direct contact with the ground
or in humid environments.
- Position it on the outside of the lawn and
not inside.
- Position it at least 200 cm (78.74 in.) from
the charging station.
- Stretch out the excess cord going from
the charging station to the power supply-
transmitter unit. Do not shorten or leng-
then the cord.
• The incoming section of the wire must be
straight and aligned perpendicularly to
the charging station by at least 200 cm
(78.74 in.) and the outgoing section must
move away from the charging station as
shown in the fi gure; this allows the correct
re-entry of the robot.

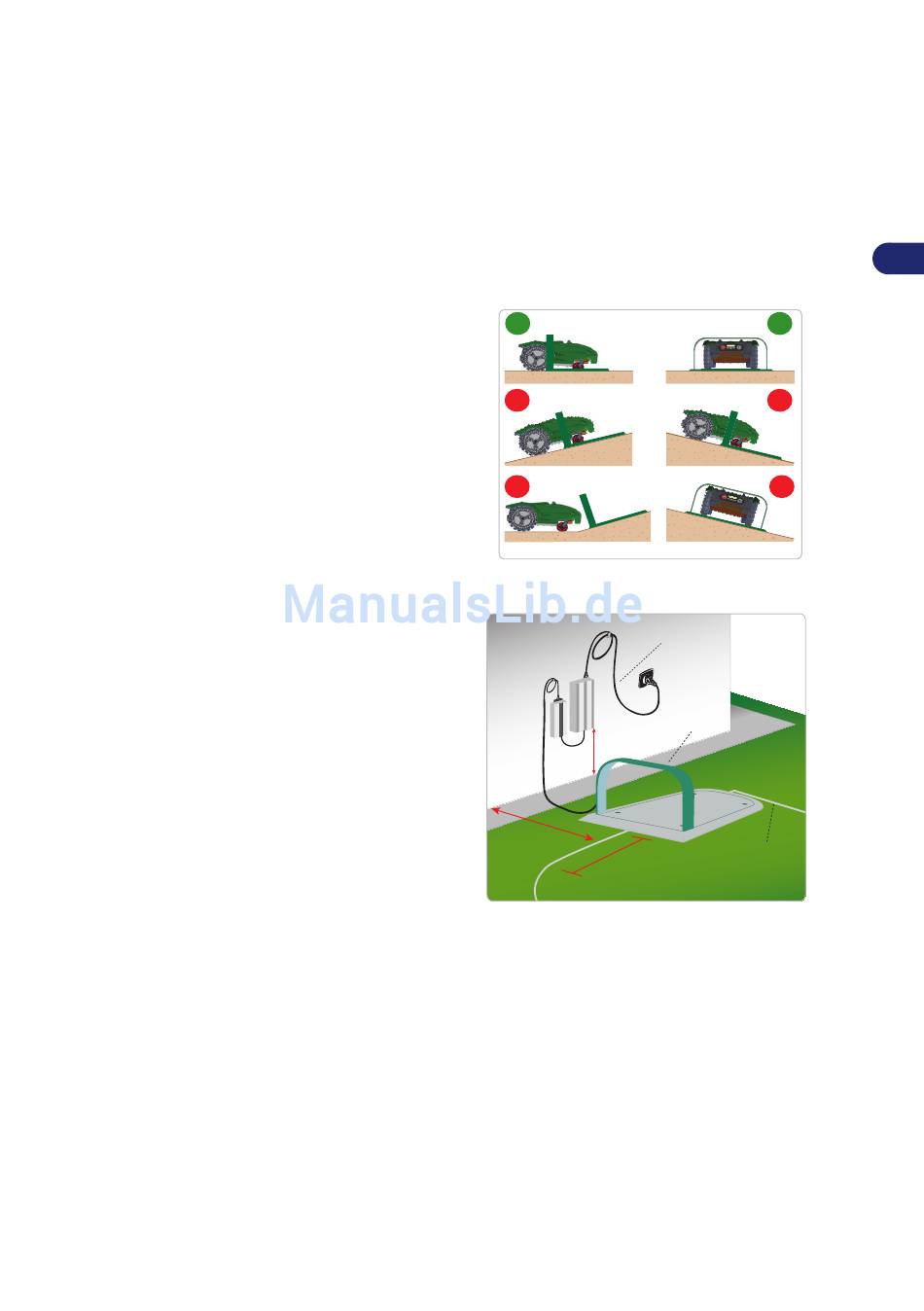

OK
NO
NO
min height 160 cm
/ 63 inc.
min distance
200 cm
/ 78,74 inc.
min distance
200 cm
/ 78,74 inc.
17
OK
NO
NO
power supply-transmitter unit
charging station
perimeter wire
