Operating procedure of laying cycle

General is it the drivers obligation (of the support vehicle) to have at every time the complete working area of
the support frame and the attachment in his field of view.
He must ensure, that in the danger zone are either persons nor objects
●
Lifting up the HVZ-ECO using the support frame till the clamp is hanging free.
●
RESET procedure of the HVZ-ECO accomplish:
●
Move hydraulic control lever (of the carrier  excavator) on "position 1" and hold it in this position until the
springs of the ADV (ADV = pushing-off device) are visible (see  in Fig. 1 ).
Take care, that there is nobody in the danger zone, especially swing range of the side clamp arms.
DANGER OF ACCIDENTS!
51400034 V3

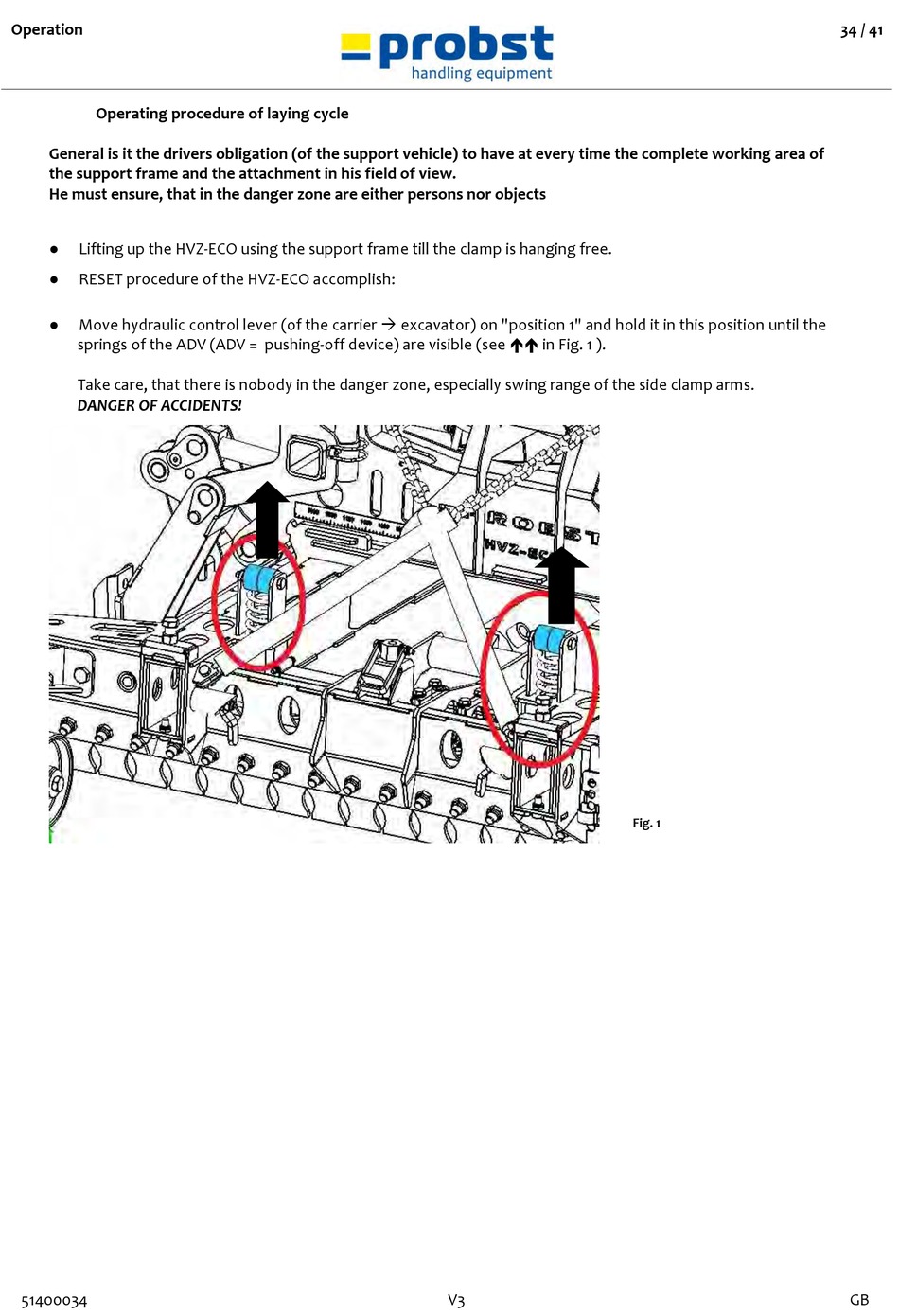

Fig. 1
