6.5

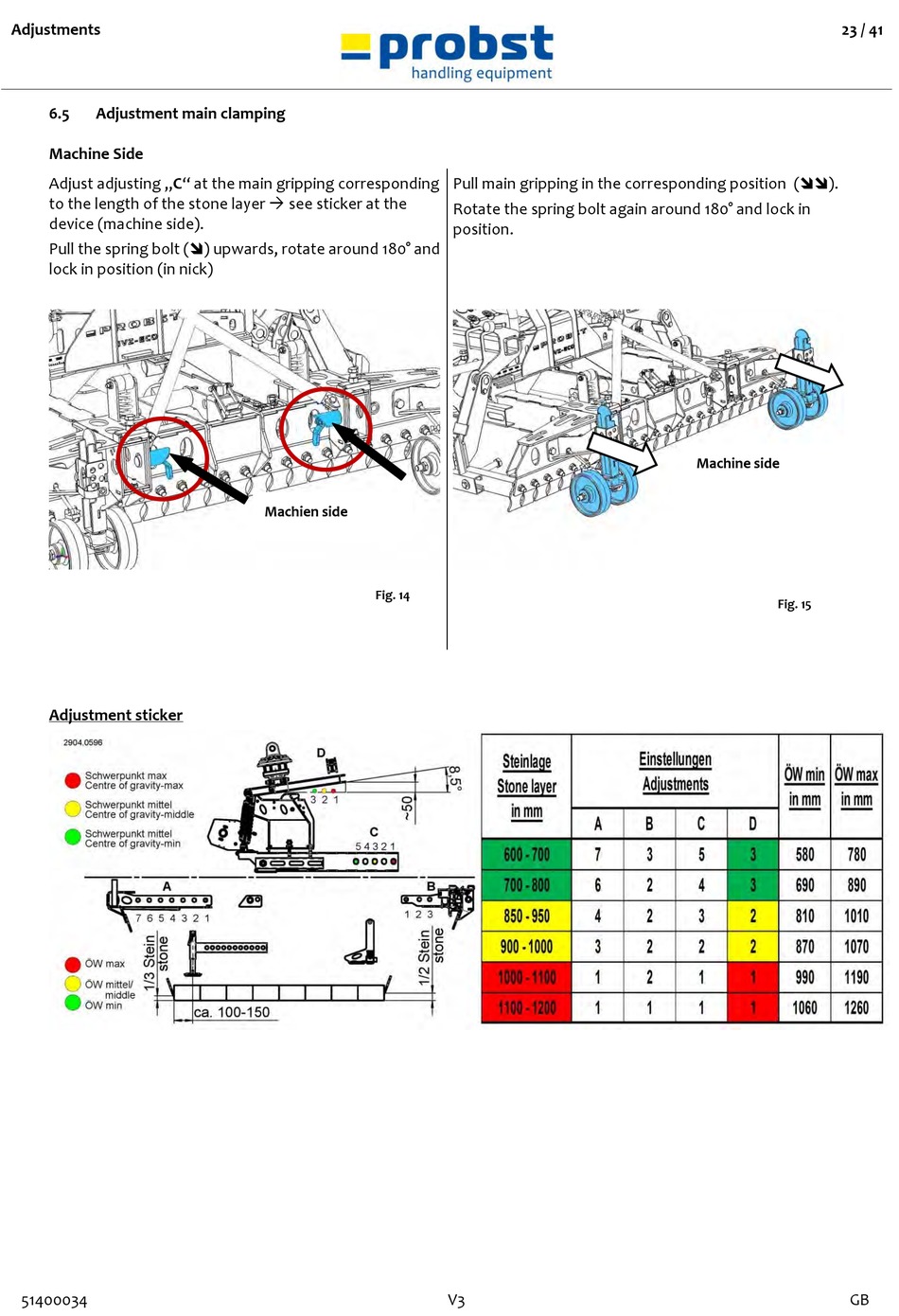

Adjustment main clamping

Machine Side
Adjust adjusting „C" at the main gripping corresponding
to the length of the stone layer  see sticker at the
device (machine side).
Pull the spring bolt () upwards, rotate around 180° and
lock in position (in nick)
Adjustment sticker
51400034
Machien side
Fig. 14
Pull main gripping in the corresponding position ().
Rotate the spring bolt again around 180° and lock in
position.
