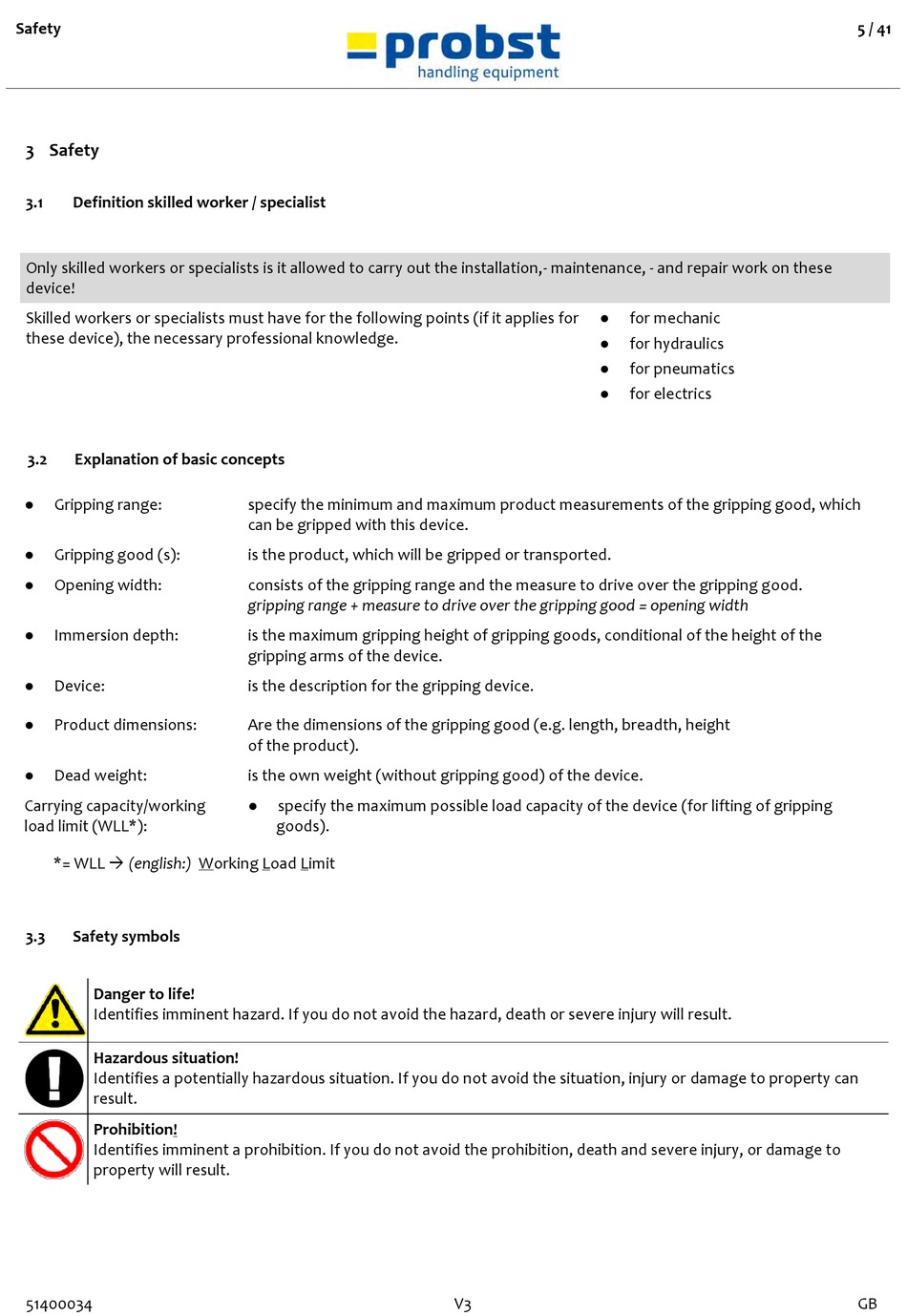

Safety

3 Safety
3.1

Definition skilled worker / specialist

Only skilled workers or specialists is it allowed to carry out the installation,- maintenance, - and repair work on these
device!
Skilled workers or specialists must have for the following points (if it applies for
these device), the necessary professional knowledge.
3.2

Explanation of basic concepts

●
Gripping range:
●
Gripping good (s):
●
Opening width:
●
Immersion depth:
●
Device:
●
Product dimensions:
●
Dead weight:
Carrying capacity/working
load limit (WLL*):
*= WLL  (english:) Working Load Limit
3.3

Safety symbols

Danger to life!
Identifies imminent hazard. If you do not avoid the hazard, death or severe injury will result.
Hazardous situation!
Identifies a potentially hazardous situation. If you do not avoid the situation, injury or damage to property can
result.
Prohibition!
Identifies imminent a prohibition. If you do not avoid the prohibition, death and severe injury, or damage to
property will result.
51400034
specify the minimum and maximum product measurements of the gripping good, which
can be gripped with this device.
is the product, which will be gripped or transported.
consists of the gripping range and the measure to drive over the gripping good.
gripping range + measure to drive over the gripping good = opening width
is the maximum gripping height of gripping goods, conditional of the height of the
gripping arms of the device.
is the description for the gripping device.
Are the dimensions of the gripping good (e.g. length, breadth, height
of the product).
is the own weight (without gripping good) of the device.
●
specify the maximum possible load capacity of the device (for lifting of gripping
goods).
●
●
●
●
V3
for mechanic
for hydraulics
for pneumatics
for electrics
5 / 41
