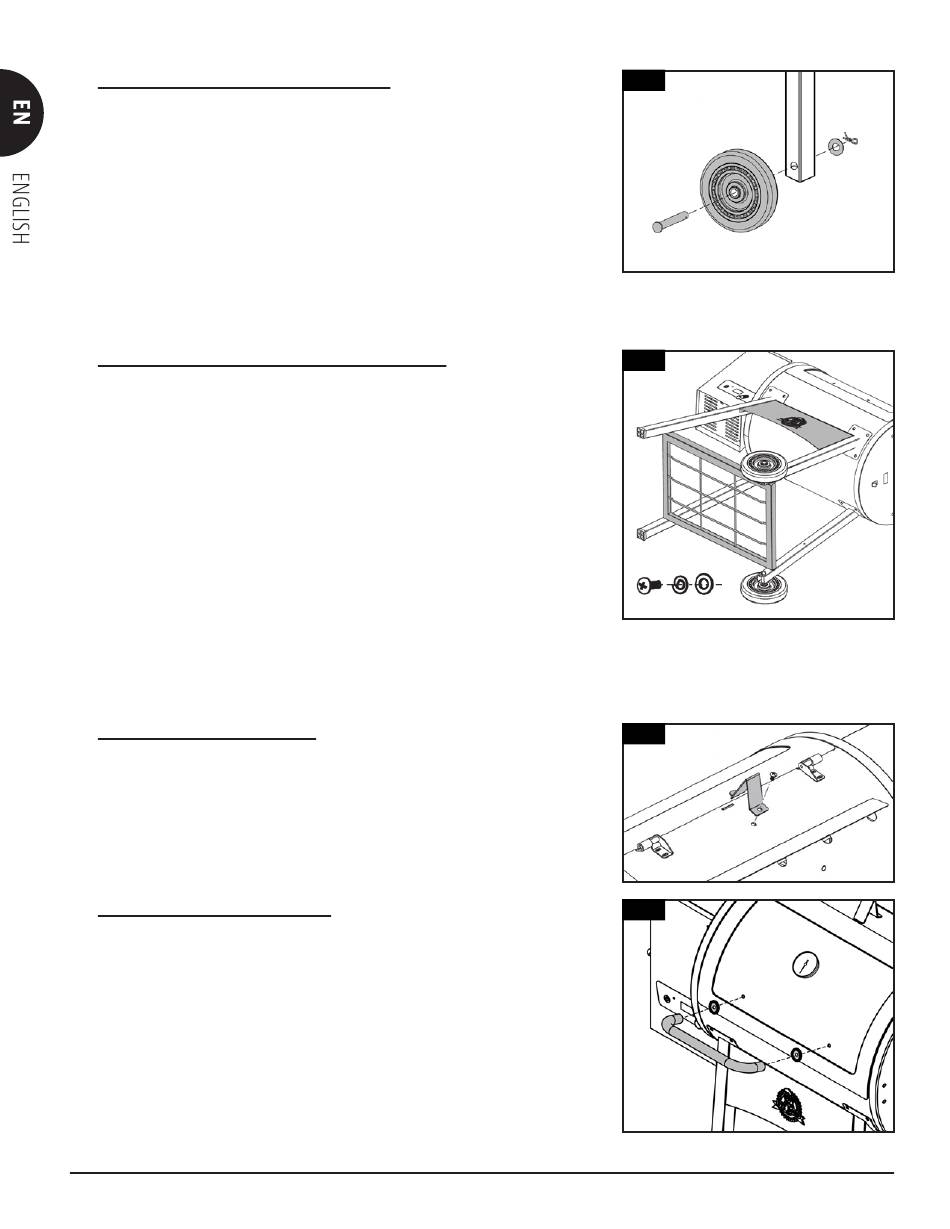

2. MOUNTING THE WHEELS TO THE LEGS

Parts Required:
2 x Wheel (#9)
2 x Wheel Cotter Pin (xD)
2 x Wheel Washer (xE)
2 x Wheel Axle Pin (xF)
Installation:
• Attach the wheel to the leg by inserting the wheel axle pin through
the wheel, then the leg hole, wheel washer, and finally secure using
the wheel cotter pin. Note illustration for order. Repeat installation for
the other wheel.

3. INSTALLING THE BOTTOM SHELF, CART PLATE

Parts Required:
1 x Bottom Shelf (#15)
1 x Cart Plate (#13)
4 x Screw (#A)
Locking Washer (#C)
4 x
Washer (#B)
4 x
4 x Screw (#G)
Installation:
• From underneath, secure the bottom shelf to each leg using a screw,
locking washer, and washer. Ensure the flatter surface of the grid shelf
is facing up.
• Install the cart plate to the front two support legs of the unit using
another four screws. Plate will be flush with front two legs once secure.
• Once the shelf is secure, carefully lift the grill into an upright position.

4. SECURING THE LID STOPPER

Parts Required:
Lid Stopper (#3)
1 x
Installation:
• Secure the lid stopper onto the top of the main barrel using the pre-
installed screw on the top of the main barrel.

5. ASSEMBLING THE LID HANDLE

Parts Required:
Lid Handle (#8)
1 x
Bezel (#7)
2 x
Installation:
• Remove the pre-installed screws from the lid handle. From inside the
barrel lid, insert one screw to protrude to the outside. Add a bezel on the
screw, then hand-tighten the screw (from the inside) into the lid handle.
• Repeat same installation for other end of lid handle.
8
2
3
A C B
4
5
G
