LISTA DEI COMPONENTI - LIST OF COMPONENTS - TEILELISTE
LISTE DES PIECES DETACHEES - LISTA DE PIEZAS
Tavola N°G - Rev. 0
RAVAGLIOLI S.p.A.

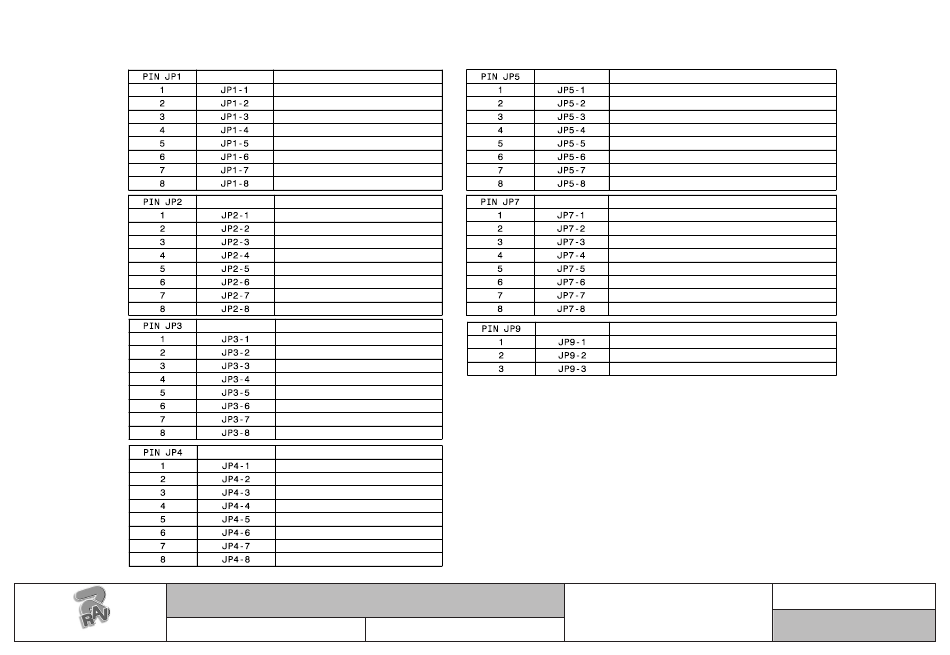

RECEIVING CARD 18962 IN/OUT
FUNCTION
Q1 TOOL CARRIAGE BACKWARD
OV for Q1
Q2 TOOL CARRIAGE FORWARD
OV for Q2
Q3 MANDREL CARRIAGE FORWARD
OV for Q3
Q4 MANDREL CARRIAGE BACKWARD
OV for Q4
FUNCTION
Q5 MANDREL CLOSING
OV for Q5
Q6 MANDREL OPENING
OV for Q6
Q7 MANDREL ARM DESCENT
OV for Q7
Q8 MANDREL ARM RISE
OV for Q8
FUNCTION
Q9 TOOL COUNTERCLOCKWISE ROT.
OV for Q9
Q10 TOOL CLOCKWISE ROTATION
OV for Q10
Q11 TOOL ARM DESCENT
OV for Q11
Q12 TOOL ARM RISE
OV for Q12
FUNCTION
Q13 OIL RECIRCULATION
OV for Q13
N.U.
N.U.
N.U.
N.U.
N.U.
N.U.
752205690
NUMBER FUNCTION
N.U.
N.U.
0 Vac
KM5 2V HYDR. POWER UNIT ROTATION CONTROL
KM4 2V STAR TYPE HYDR. POWER UNIT MOTOR ROT. CONTR.
KM3 1V HYDRAULIC POWER UNIT ROT. CONTROL
KM2 MANDREL CLOCKWISE ROTATION CONTROL
KM1 MANDREL COUNTERCLOCKWISE ROT. CONTROL
NUMBER FUNCTION
CONNECTED TO JP7-2
CONNECTED TO JP7-1
N.U.
N.U.
N.U.
N.U.
N.U.
N.U.
NUMBER FUNCTION
0 Vac
N.U.
19 Vac
SCHEMA ELETTRICO 4/19
ELECTRICAL SCHEME 4/19
SCHALTPLAN 4/19
SCHEMA ELECTRIQUE 4/19
ESQUEMA ELECTRICO 4/19
(G9256.15SL) (VARIANTE INVERTER)
Pag. 96 di 168
G9256.11SL - G9256.11ST - G9256.15 - G9256T.15
G9256A.15 - G9256D.15 - G9256TD.15 - G9256.15SL
G10360.15 - G10360T.15 - G10360A.15
G10360D.15 - G10360TD.15
7522-M001-14_R
