LISTA DEI COMPONENTI - LIST OF COMPONENTS - TEILELISTE
LISTE DES PIECES DETACHEES - LISTA DE PIEZAS
Tavola N°G - Rev. 0
RAVAGLIOLI S.p.A.

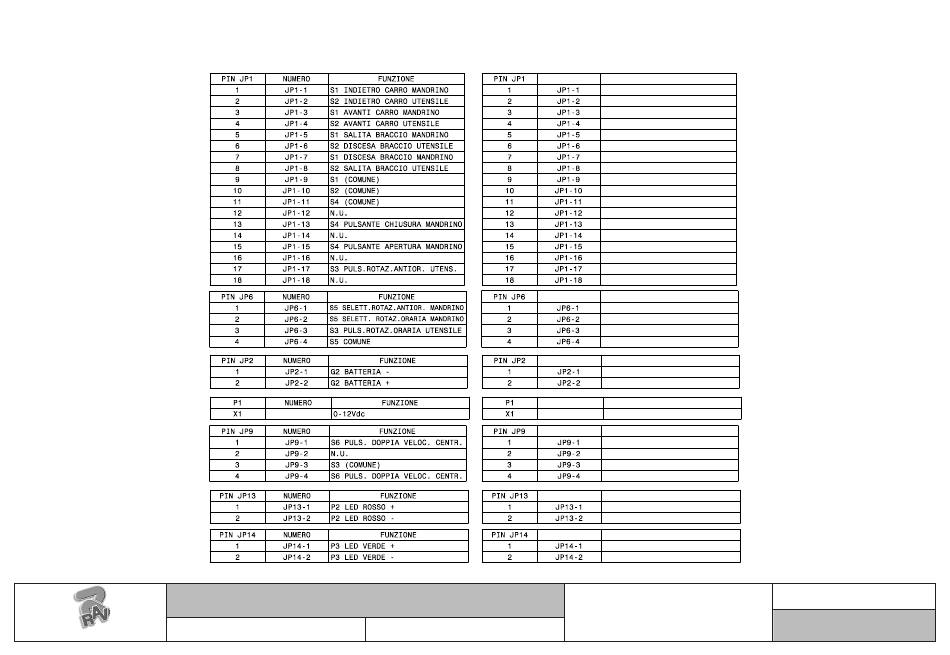

IN / OUT SCHEDA TRASMITTENTE 18961
TRANSMITTING CARD 18961 IN/OUT
752205690
NUMBER
FUNCTION
S1 MANDREL CARRIAGE BACKWARD
S2 TOOL CARRIAGE BACKWARD
S1 MANDREL CARRIAGE FORWARD
S2 TOOL CARRIAGE FORWARD
S1 MANDREL ARM RISE
S2 TOOL ARM DESCENT
S1 MANDREL ARM DESCENT
S2 TOOL ARM RISE
S1 (COMMON)
S2 (COMMON)
S4 (COMMON)
N.U.
S4 MANDREL CLOSING PUSHBUTTON
N.U.
S4 MANDREL OPENING PUSHBUTTON
N.U.
S3 TOOL COUNTERCLOCKWISE ROT. PUSHBUTTON
N.U.
NUMBER
FUNCTION
S5 MANDREL COUNTERCLOCKWISE ROT. SELECTOR
S5 MANDREL CLOCKWISE ROT. SELECTOR
S3 TOOL CLOCKWISE ROT. PUSHBUTTON
S5 COMMON
NUMBER
FUNCTION
G2 BATTERY -
G2 BATTERY +
NUMBER
FUNCTION
0 - 12Vdc
NUMBER
FUNCTION
S6 HYDR. POWER UNIT DOUBLE SPEED PUSHBUTTON
N.U.
S3 (COMMON)
S6 HYDR. POWER UNIT DOUBLE SPEED PUSHBUTTON
NUMBER
FUNCTION
P2 RED LED +
P2 RED LED -
NUMBER
FUNCTION
P3 GREEN LED +
P3 GREEN LED -
SCHEMA ELETTRICO 13/19
ELECTRICAL SCHEME 13/19
SCHALTPLAN 13/19
SCHEMA ELECTRIQUE 13/19
ESQUEMA ELECTRICO 13/19
(G9256.15SL) (VARIANTE INVERTER)
Pag. 105 di 168
G9256.11SL - G9256.11ST - G9256.15 - G9256T.15
G9256A.15 - G9256D.15 - G9256TD.15 - G9256.15SL
G10360.15 - G10360T.15 - G10360A.15
G10360D.15 - G10360TD.15
7522-M001-14_R
