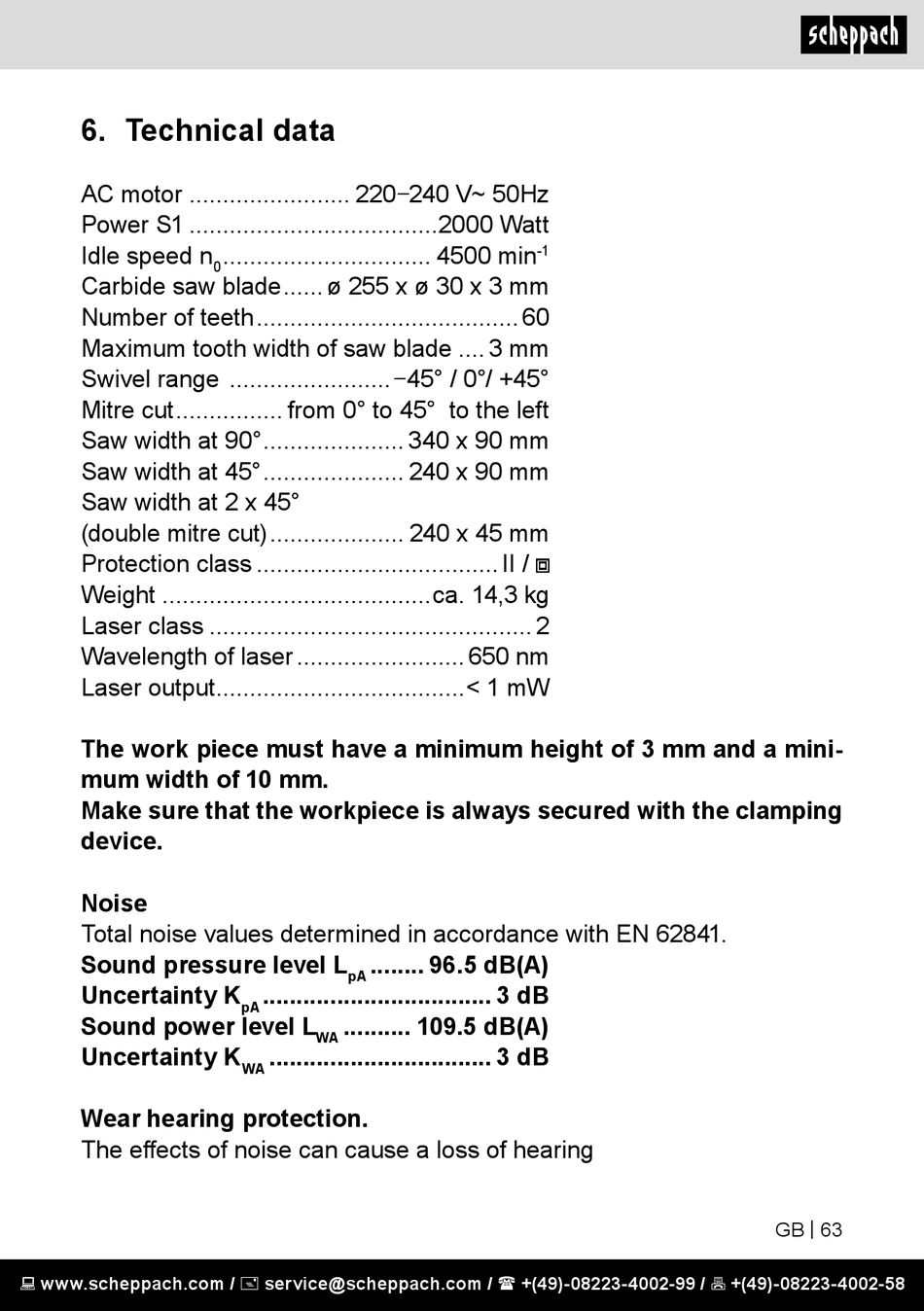

6. Technical data

AC motor ........................ 220−240 V~ 50Hz
Power S1 .....................................2000 Watt
Idle speed n
Carbide saw blade ...... ø 255 x ø 30 x 3 mm
Number of teeth ....................................... 60
Maximum tooth width of saw blade .... 3 mm
Swivel range ........................−45° / 0°/ +45°
Mitre cut ................ from 0° to 45° to the left
Saw width at 90° ..................... 340 x 90 mm
Saw width at 45° ..................... 240 x 90 mm
Saw width at 2 x 45°
(double mitre cut) .................... 240 x 45 mm
Protection class .................................... II /
Weight ........................................ca. 14,3 kg
Laser class ................................................ 2
Wavelength of laser ......................... 650 nm
Laser output .....................................< 1 mW
The work piece must have a minimum height of 3 mm and a mini-
mum width of 10 mm.
Make sure that the workpiece is always secured with the clamping
device.
Noise
Total noise values determined in accordance with EN 62841.
Sound pressure level L
Uncertainty K
Sound power level L
Uncertainty K
Wear hearing protection.
The effects of noise can cause a loss of hearing
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
............................... 4500 min
0
........ 96.5 dB(A)
pA
.................................. 3 dB
pA
.......... 109.5 dB(A)
WA
................................. 3 dB
WA
-1
