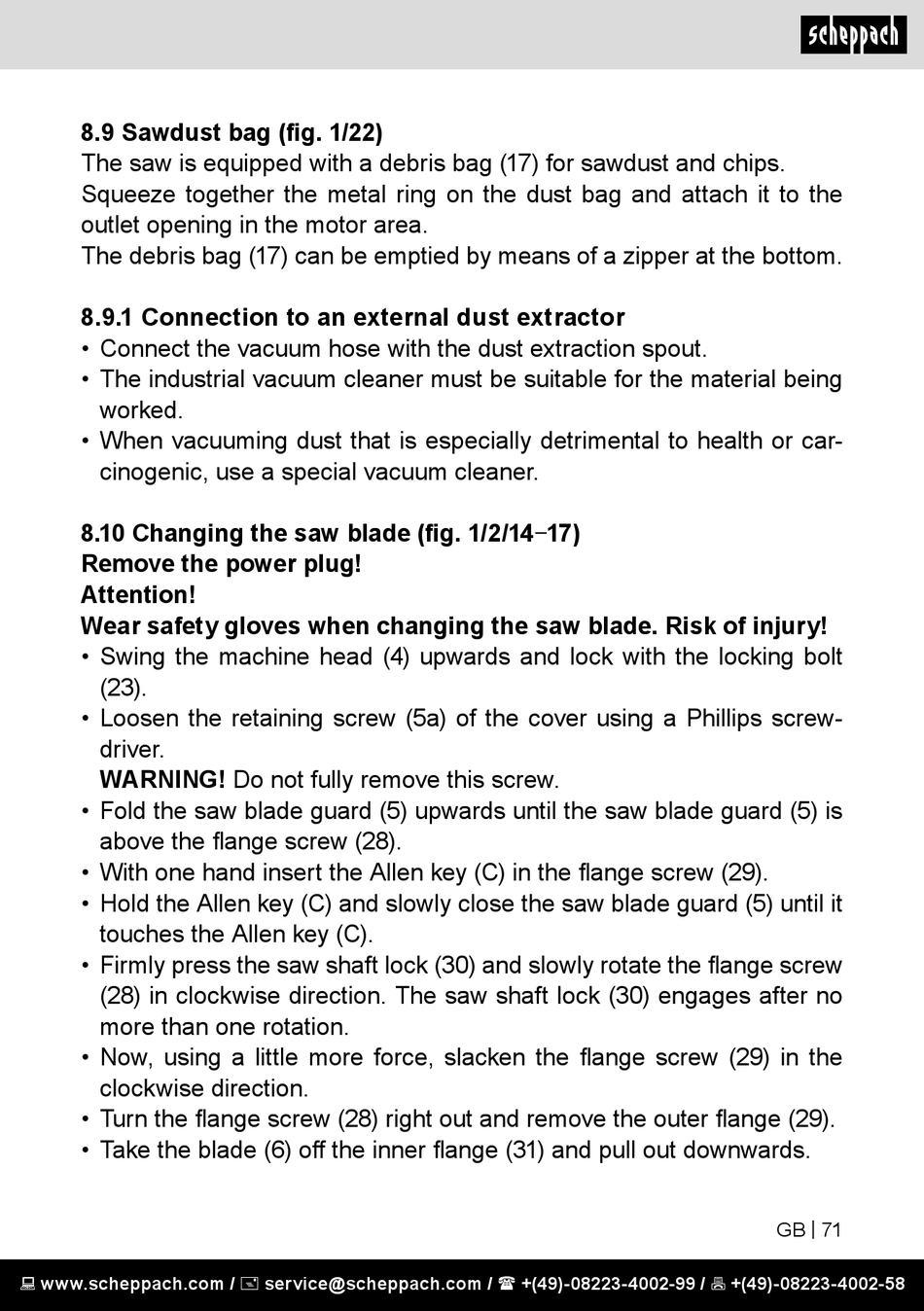

8.9 Sawdust bag (fig. 1/22)
The saw is equipped with a debris bag (17) for sawdust and chips.
Squeeze together the metal ring on the dust bag and attach it to the
outlet opening in the motor area.
The debris bag (17) can be emptied by means of a zipper at the bottom.

8.9.1 Connection to an external dust extractor

• Connect the vacuum hose with the dust extraction spout.
• The industrial vacuum cleaner must be suitable for the material being
worked.
• When vacuuming dust that is especially detrimental to health or car-
cinogenic, use a special vacuum cleaner.
8.10 Changing the saw blade (fig. 1/2/14−17)
Remove the power plug!
Attention!
Wear safety gloves when changing the saw blade. Risk of injury!
• Swing the machine head (4) upwards and lock with the locking bolt
(23).
• Loosen the retaining screw (5a) of the cover using a Phillips screw-
driver.
WARNING! Do not fully remove this screw.
• Fold the saw blade guard (5) upwards until the saw blade guard (5) is
above the flange screw (28).
• With one hand insert the Allen key (C) in the flange screw (29).
• Hold the Allen key (C) and slowly close the saw blade guard (5) until it
touches the Allen key (C).
• Firmly press the saw shaft lock (30) and slowly rotate the flange screw
(28) in clockwise direction. The saw shaft lock (30) engages after no
more than one rotation.
• Now, using a little more force, slacken the flange screw (29) in the
clockwise direction.
• Turn the flange screw (28) right out and remove the outer flange (29).
• Take the blade (6) off the inner flange (31) and pull out downwards.
