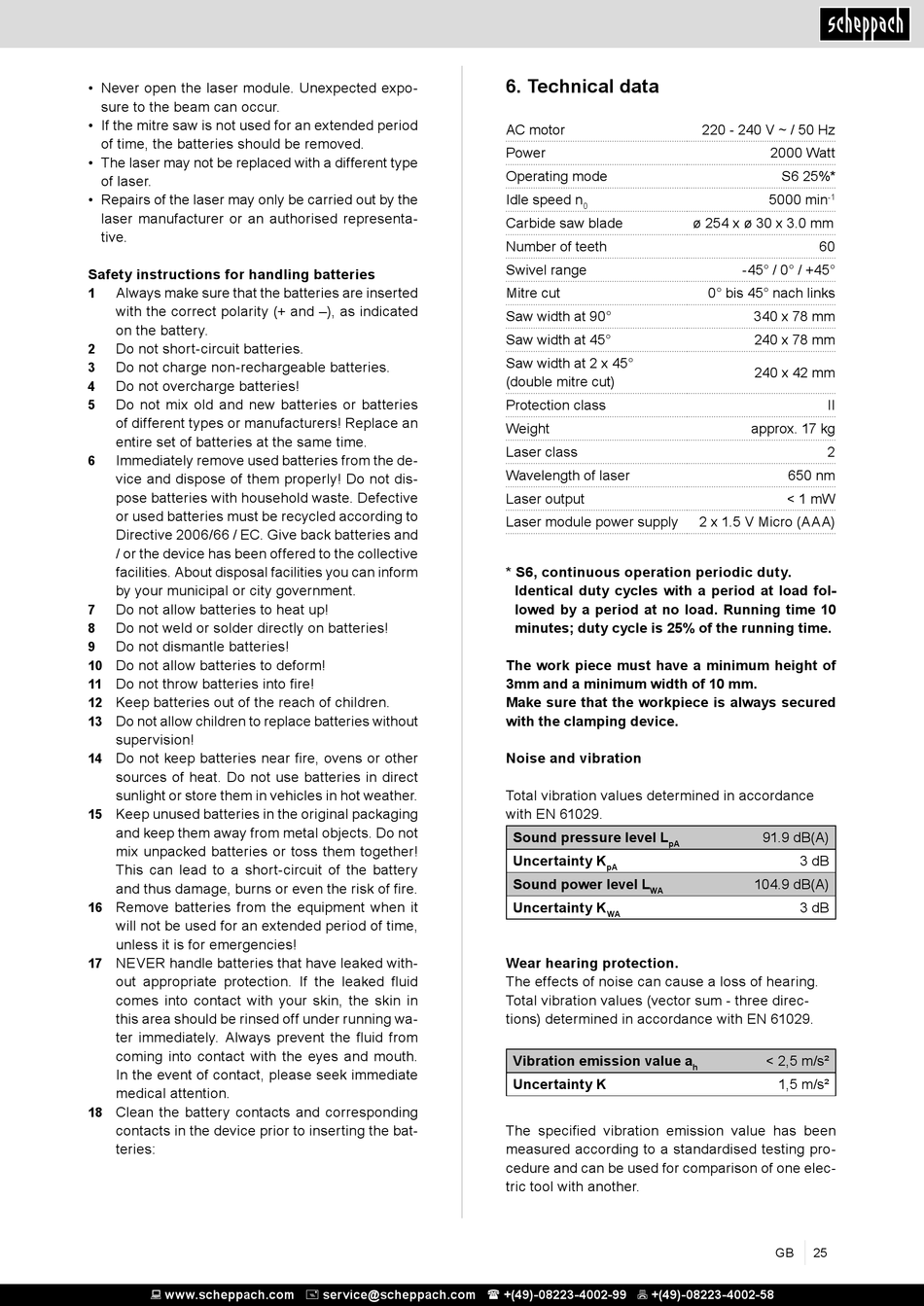

Technical Data - Scheppach HM100LXU Original Bedienungsanleitung

• Never open the laser module. Unexpected expo-
sure to the beam can occur.
• If the mitre saw is not used for an extended period
of time, the batteries should be removed.
• The laser may not be replaced with a different type
of laser.
• Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representa-
tive.
Safety instructions for handling batteries
Always make sure that the batteries are inserted
1
with the correct polarity (+ and –), as indicated
on the battery.
Do not short-circuit batteries.
2
Do not charge non-rechargeable batteries.
3
Do not overcharge batteries!
4
Do not mix old and new batteries or batteries
5
of different types or manufacturers! Replace an
entire set of batteries at the same time.
6 Immediately remove used batteries from the de-
vice and dispose of them properly! Do not dis-
pose batteries with household waste. Defective
or used batteries must be recycled according to
Directive 2006/66 / EC. Give back batteries and
/ or the device has been offered to the collective
facilities. About disposal facilities you can inform
by your municipal or city government.
Do not allow batteries to heat up!
7
Do not weld or solder directly on batteries!
8
Do not dismantle batteries!
9
Do not allow batteries to deform!
10
11 Do not throw batteries into fire!
12 Keep batteries out of the reach of children.
Do not allow children to replace batteries without
13
supervision!
Do not keep batteries near fire, ovens or other
14
sources of heat. Do not use batteries in direct
sunlight or store them in vehicles in hot weather.
15 Keep unused batteries in the original packaging
and keep them away from metal objects. Do not
mix unpacked batteries or toss them together!
This can lead to a short-circuit of the battery
and thus damage, burns or even the risk of fire.
Remove batteries from the equipment when it
16
will not be used for an extended period of time,
unless it is for emergencies!
NEVER handle batteries that have leaked with-
17
out appropriate protection. If the leaked fluid
comes into contact with your skin, the skin in
this area should be rinsed off under running wa-
ter immediately. Always prevent the fluid from
coming into contact with the eyes and mouth.
In the event of contact, please seek immediate
medical attention.
Clean the battery contacts and corresponding
18
contacts in the device prior to inserting the bat-
teries:
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58

6. Technical data

AC motor
Power
Operating mode
Idle speed n
0
Carbide saw blade
Number of teeth
Swivel range
Mitre cut
Saw width at 90°
Saw width at 45°
Saw width at 2 x 45°
(double mitre cut)
Protection class
Weight
Laser class
Wavelength of laser
Laser output
Laser module power supply
* S6, continuous operation periodic duty.
Identical duty cycles with a period at load fol-
lowed by a period at no load. Running time 10
minutes; duty cycle is 25% of the running time.
The work piece must have a minimum height of
3mm and a minimum width of 10 mm.
Make sure that the workpiece is always secured
with the clamping device.
Noise and vibration
Total vibration values determined in accordance
with EN 61029.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Wear hearing protection.
The effects of noise can cause a loss of hearing.
Total vibration values (vector sum - three direc-
tions) determined in accordance with EN 61029.
Vibration emission value a
Uncertainty K
The specified vibration emission value has been
measured according to a standardised testing pro-
cedure and can be used for comparison of one elec-
tric tool with another.
220 - 240 V ~ / 50 Hz
2000 Watt
S6 25%*
5000 min
-1
ø 254 x ø 30 x 3.0 mm
60
-45° / 0° / +45°
0° bis 45° nach links
340 x 78 mm
240 x 78 mm
240 x 42 mm
II
approx. 17 kg
2
650 nm
< 1 mW
2 x 1.5 V Micro (AAA)
91.9 dB(A)
3 dB
104.9 dB(A)
3 dB
< 2,5 m/s²
h
1,5 m/s²
