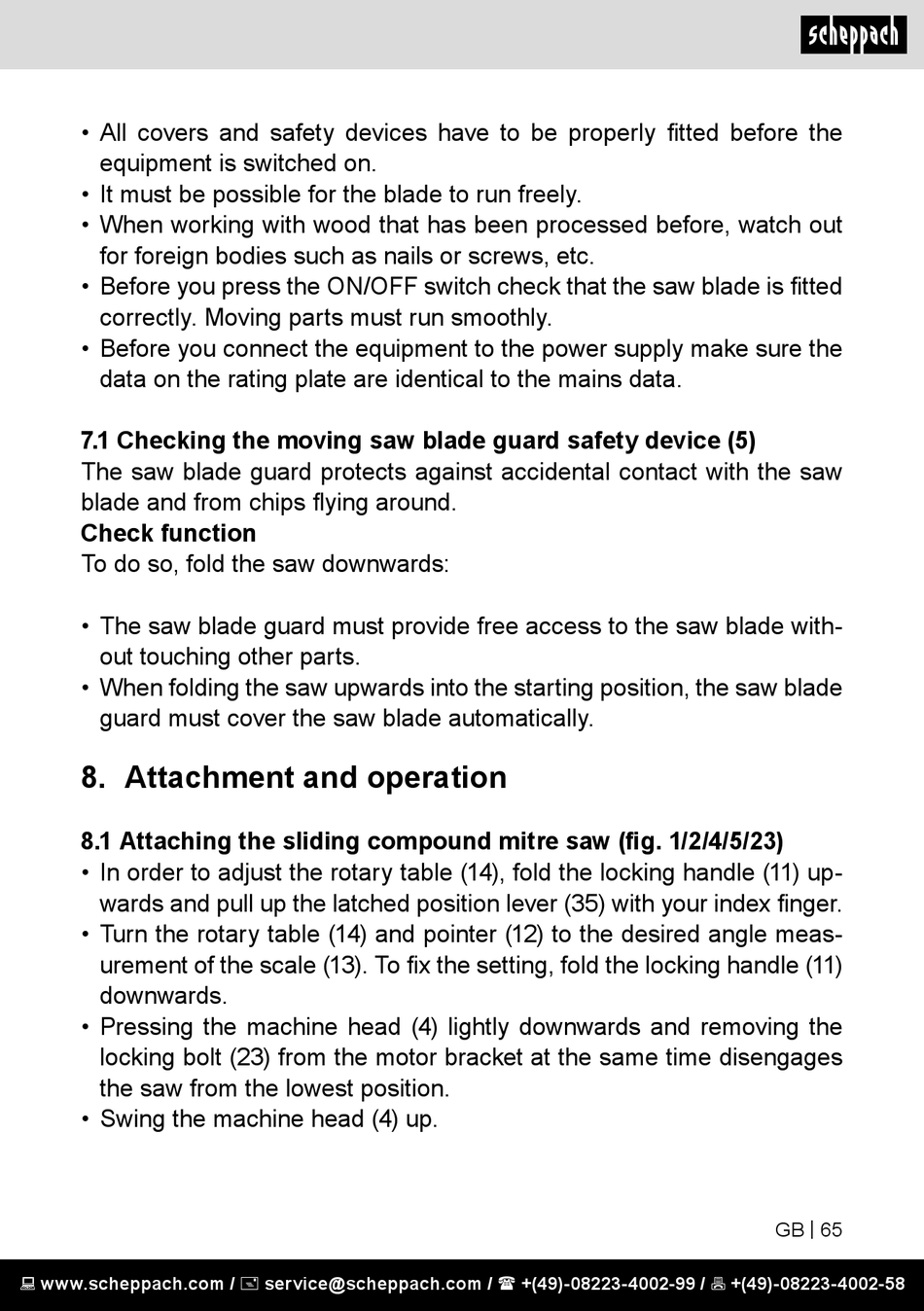

• All covers and safety devices have to be properly fitted before the
equipment is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed before, watch out
for foreign bodies such as nails or screws, etc.
• Before you press the ON/OFF switch check that the saw blade is fitted
correctly. Moving parts must run smoothly.
• Before you connect the equipment to the power supply make sure the
data on the rating plate are identical to the mains data.
7.1 Checking the moving saw blade guard safety device (5)
The saw blade guard protects against accidental contact with the saw
blade and from chips flying around.
Check function
To do so, fold the saw downwards:
• The saw blade guard must provide free access to the saw blade with-
out touching other parts.
• When folding the saw upwards into the starting position, the saw blade
guard must cover the saw blade automatically.

8. Attachment and operation

8.1 Attaching the sliding compound mitre saw (fig. 1/2/4/5/23)
• In order to adjust the rotary table (14), fold the locking handle (11) up-
wards and pull up the latched position lever (35) with your index finger.
• Turn the rotary table (14) and pointer (12) to the desired angle meas-
urement of the scale (13). To fix the setting, fold the locking handle (11)
downwards.
• Pressing the machine head (4) lightly downwards and removing the
locking bolt (23) from the motor bracket at the same time disengages
the saw from the lowest position.
• Swing the machine head (4) up.
