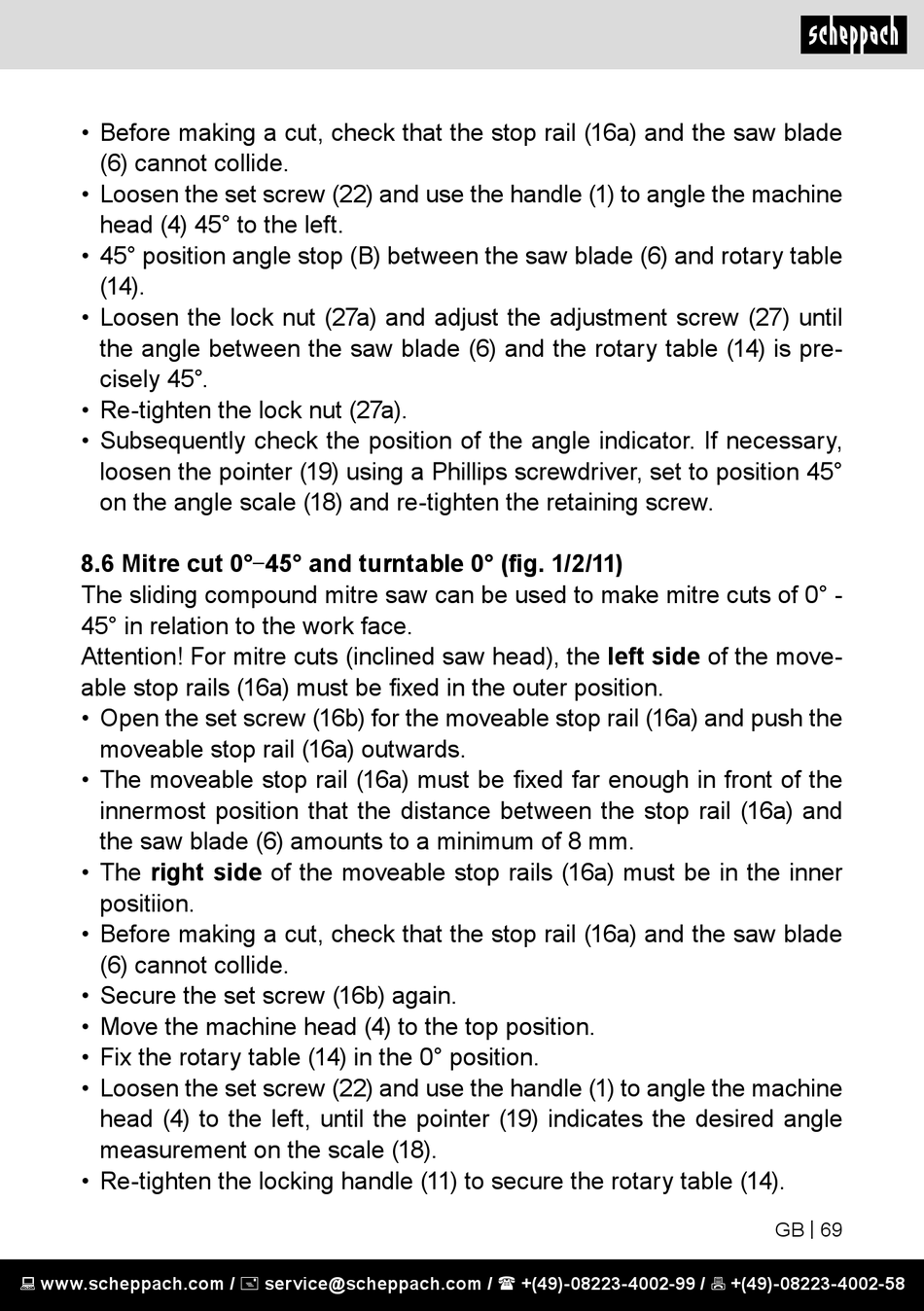

• Before making a cut, check that the stop rail (16a) and the saw blade
(6) cannot collide.
• Loosen the set screw (22) and use the handle (1) to angle the machine
head (4) 45° to the left.
• 45° position angle stop (B) between the saw blade (6) and rotary table
(14).
• Loosen the lock nut (27a) and adjust the adjustment screw (27) until
the angle between the saw blade (6) and the rotary table (14) is pre-
cisely 45°.
• Re-tighten the lock nut (27a).
• Subsequently check the position of the angle indicator. If necessary,
loosen the pointer (19) using a Phillips screwdriver, set to position 45°
on the angle scale (18) and re-tighten the retaining screw.
8.6 Mitre cut 0°−45° and turntable 0° (fig. 1/2/11)
The sliding compound mitre saw can be used to make mitre cuts of 0° -
45° in relation to the work face.
Attention! For mitre cuts (inclined saw head), the left side of the move-
able stop rails (16a) must be fixed in the outer position.
• Open the set screw (16b) for the moveable stop rail (16a) and push the
moveable stop rail (16a) outwards.
• The moveable stop rail (16a) must be fixed far enough in front of the
innermost position that the distance between the stop rail (16a) and
the saw blade (6) amounts to a minimum of 8 mm.
• The right side of the moveable stop rails (16a) must be in the inner
positiion.
• Before making a cut, check that the stop rail (16a) and the saw blade
(6) cannot collide.
• Secure the set screw (16b) again.
• Move the machine head (4) to the top position.
• Fix the rotary table (14) in the 0° position.
• Loosen the set screw (22) and use the handle (1) to angle the machine
head (4) to the left, until the pointer (19) indicates the desired angle
measurement on the scale (18).
• Re-tighten the locking handle (11) to secure the rotary table (14).
