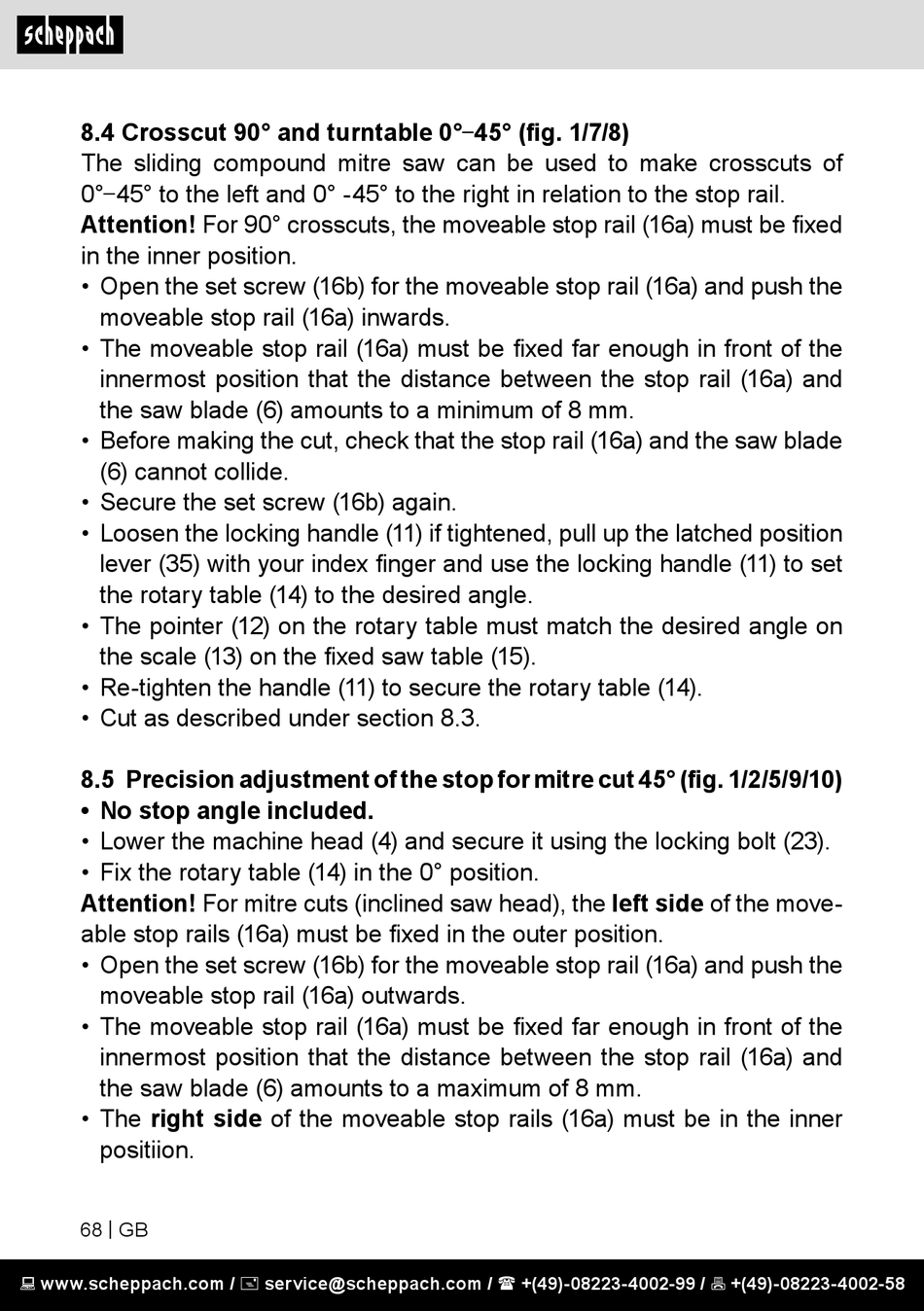

Scheppach MST254 Original Bedienungsanleitung Seite 68

8.4 Crosscut 90° and turntable 0°−45° (fig. 1/7/8)
The sliding compound mitre saw can be used to make crosscuts of
0°−45° to the left and 0° -45° to the right in relation to the stop rail.
Attention! For 90° crosscuts, the moveable stop rail (16a) must be fixed
in the inner position.
• Open the set screw (16b) for the moveable stop rail (16a) and push the
moveable stop rail (16a) inwards.
• The moveable stop rail (16a) must be fixed far enough in front of the
innermost position that the distance between the stop rail (16a) and
the saw blade (6) amounts to a minimum of 8 mm.
• Before making the cut, check that the stop rail (16a) and the saw blade
(6) cannot collide.
• Secure the set screw (16b) again.
• Loosen the locking handle (11) if tightened, pull up the latched position
lever (35) with your index finger and use the locking handle (11) to set
the rotary table (14) to the desired angle.
• The pointer (12) on the rotary table must match the desired angle on
the scale (13) on the fixed saw table (15).
• Re-tighten the handle (11) to secure the rotary table (14).
• Cut as described under section 8.3.
8.5 Precision adjustment of the stop for mitre cut 45° (fig. 1/2/5/9/10)
• No stop angle included.
• Lower the machine head (4) and secure it using the locking bolt (23).
• Fix the rotary table (14) in the 0° position.
Attention! For mitre cuts (inclined saw head), the left side of the move-
able stop rails (16a) must be fixed in the outer position.
• Open the set screw (16b) for the moveable stop rail (16a) and push the
moveable stop rail (16a) outwards.
• The moveable stop rail (16a) must be fixed far enough in front of the
innermost position that the distance between the stop rail (16a) and
the saw blade (6) amounts to a maximum of 8 mm.
• The right side of the moveable stop rails (16a) must be in the inner
positiion.
