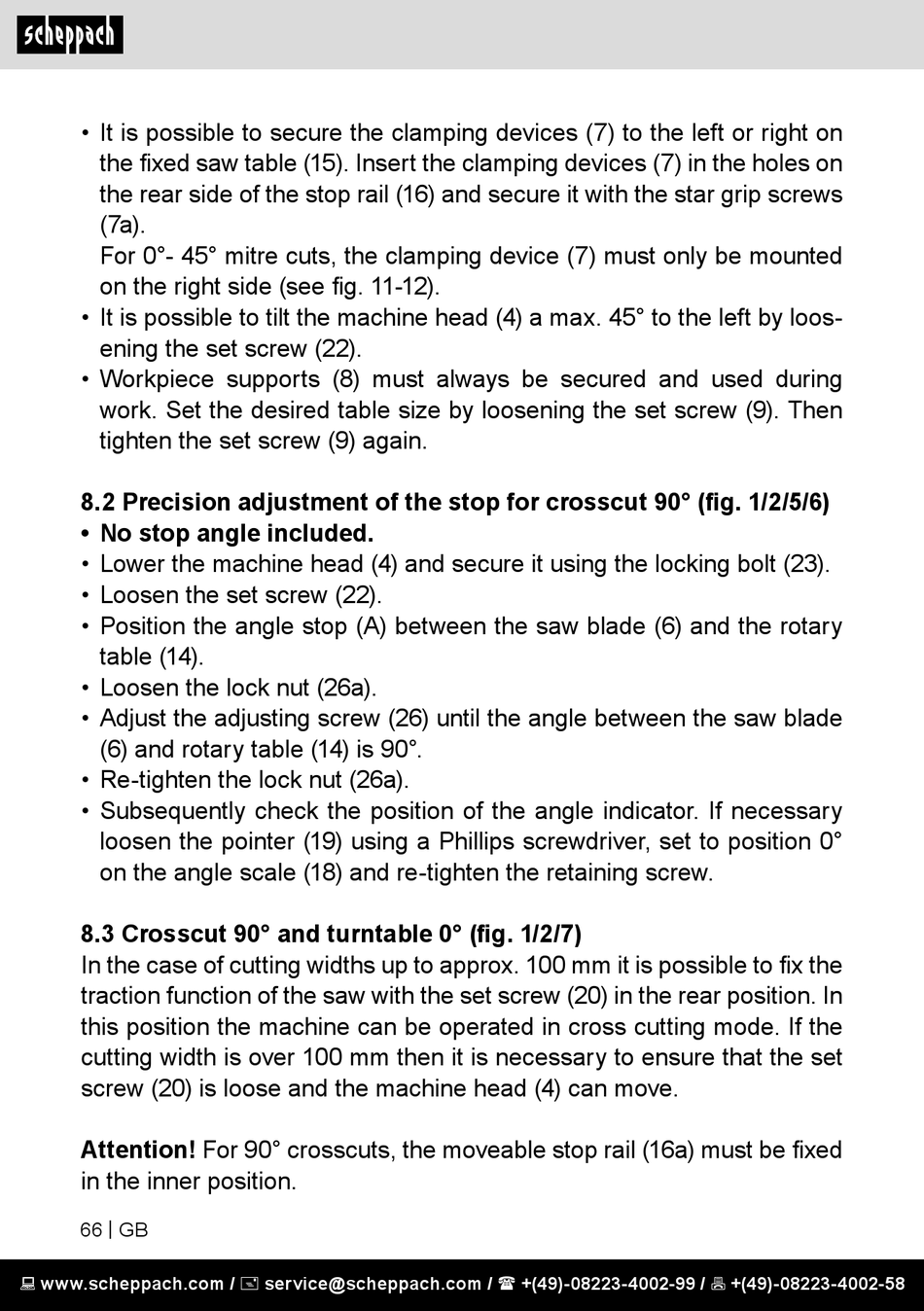

• It is possible to secure the clamping devices (7) to the left or right on
the fixed saw table (15). Insert the clamping devices (7) in the holes on
the rear side of the stop rail (16) and secure it with the star grip screws
(7a).
For 0°- 45° mitre cuts, the clamping device (7) must only be mounted
on the right side (see fig. 11-12).
• It is possible to tilt the machine head (4) a max. 45° to the left by loos-
ening the set screw (22).
• Workpiece supports (8) must always be secured and used during
work. Set the desired table size by loosening the set screw (9). Then
tighten the set screw (9) again.
8.2 Precision adjustment of the stop for crosscut 90° (fig. 1/2/5/6)
• No stop angle included.
• Lower the machine head (4) and secure it using the locking bolt (23).
• Loosen the set screw (22).
• Position the angle stop (A) between the saw blade (6) and the rotary
table (14).
• Loosen the lock nut (26a).
• Adjust the adjusting screw (26) until the angle between the saw blade
(6) and rotary table (14) is 90°.
• Re-tighten the lock nut (26a).
• Subsequently check the position of the angle indicator. If necessary
loosen the pointer (19) using a Phillips screwdriver, set to position 0°
on the angle scale (18) and re-tighten the retaining screw.
8.3 Crosscut 90° and turntable 0° (fig. 1/2/7)
In the case of cutting widths up to approx. 100 mm it is possible to fix the
traction function of the saw with the set screw (20) in the rear position. In
this position the machine can be operated in cross cutting mode. If the
cutting width is over 100 mm then it is necessary to ensure that the set
screw (20) is loose and the machine head (4) can move.
Attention! For 90° crosscuts, the moveable stop rail (16a) must be fixed
in the inner position.
