Changing The Deuterium Lamp - Knauer Smartlibe UV Detector 2500 Handbuch

28

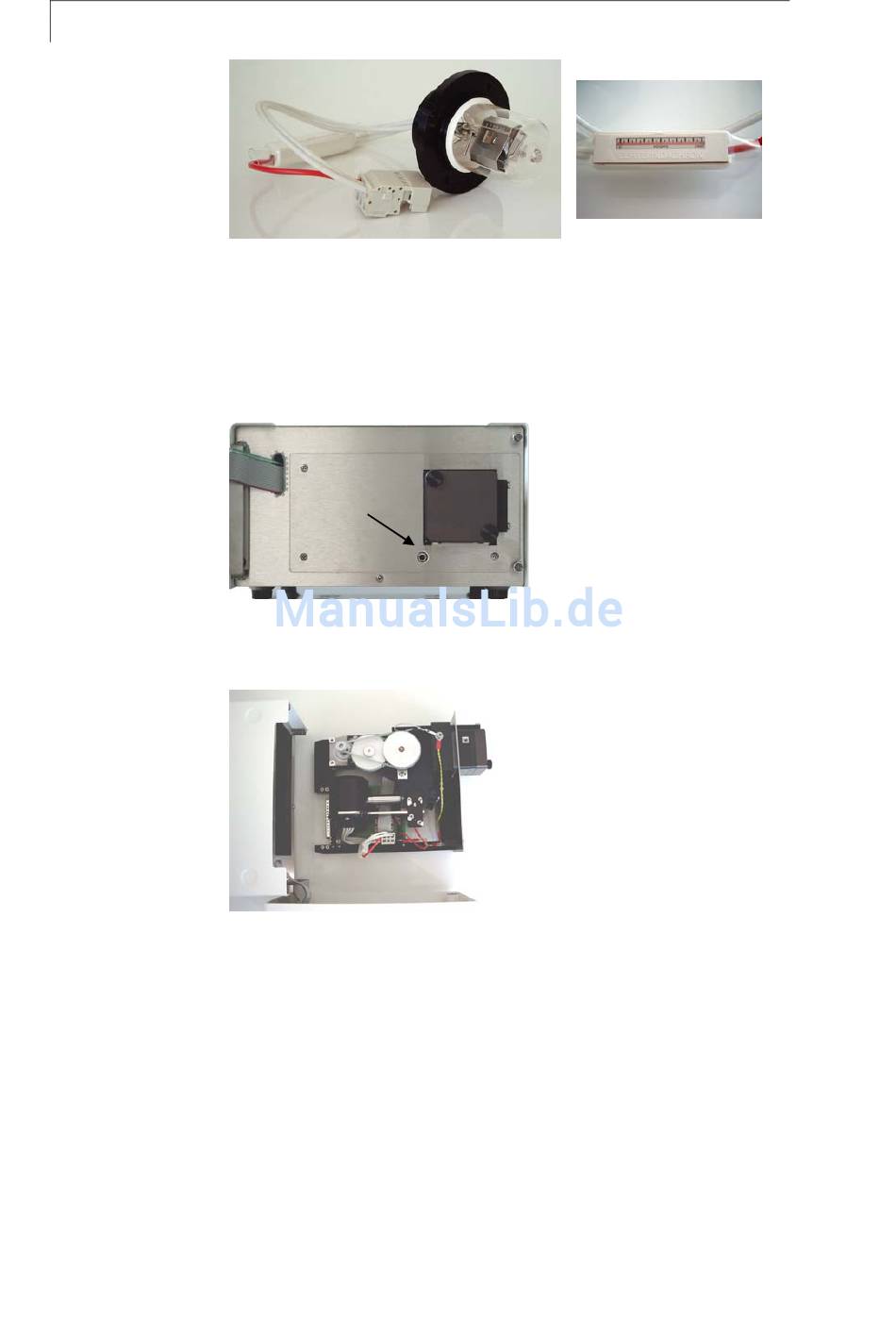

Fig. 25
SOP 7
Fig. 26
Fig. 27
Deuterium lamp with counter (1) and plug

Changing the deuterium lamp.

This instruction applies to the UV-Detector 2500.
1. Open the front door of the detector.
2. Unscrew screw (1) with the supplied allen key (size 4).
1
Detector with open door
3. Pull the optical bench out of the housing.
Detector with optical bench
4. Pull the 3-pole plug (2) of the old lamp. Unscrew the two screws in the
lamp socket (3) with a screw driver and remove the whole lamp from
the instrument including its cables.
