Connecting other Instruments to the UV-Detector 2500

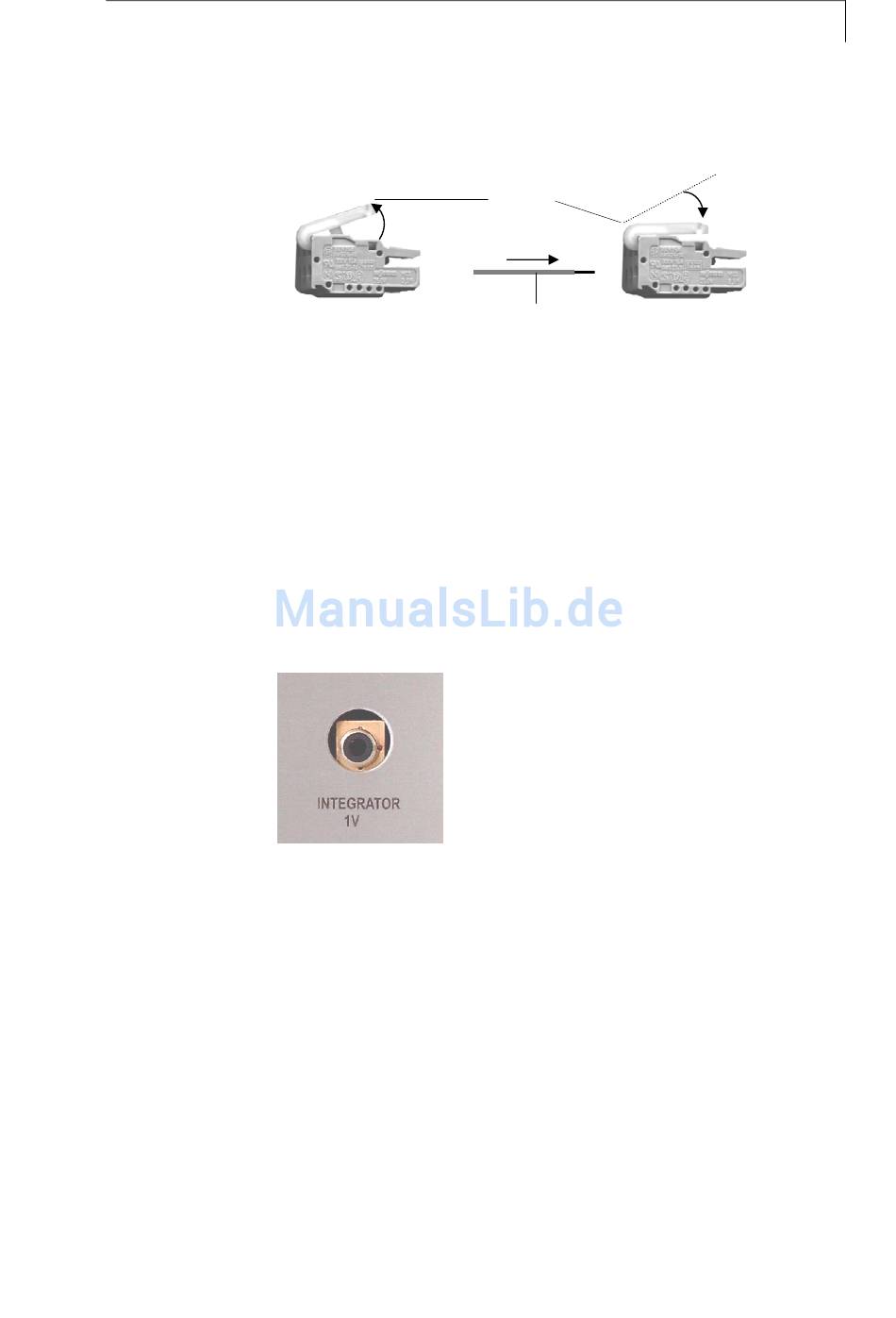

Assembling WAGO plug strips

Fig. 21

SOP 5

The INTEGRATOR output

Fig. 22
For wiring the UV-Detector 2500with other instruments you need cables
with WAGO plug strips. Plug strips with 2, 3 or 4 positions are included in
the standard delivery. They are mounted as follows:.
1
4
plug strip
Assembling plug strips
WAGO plug strip assembling
1. Insert the rounded end of the lever latch into the square opening of the
selected connector of the plug strip.
2. Press the catch down as indicated by arrow.
3. Insert the uninsulated end of the cable into the opening under the
catch.
4. Release the catch and remove the lever latch from the plug.
The cable is now firmly anchored in the plug strip.
Integrator output
The integrator output supplies the current signal value as an analog
voltage (max. 1 V). In the ANALOG OUT menu the signal can be scaled
in 16 steps. The integrator output is connected to other instruments with
the analog connection cable or other special connection cables.
lever latch
3
cable
25
2
