Operating the UV-Detector 2500
Fig. 10
Operating the UV-Detector 2500
Function of Foil Keys
AUTOZERO-key
AUTO
ZERO
Arrow-keys

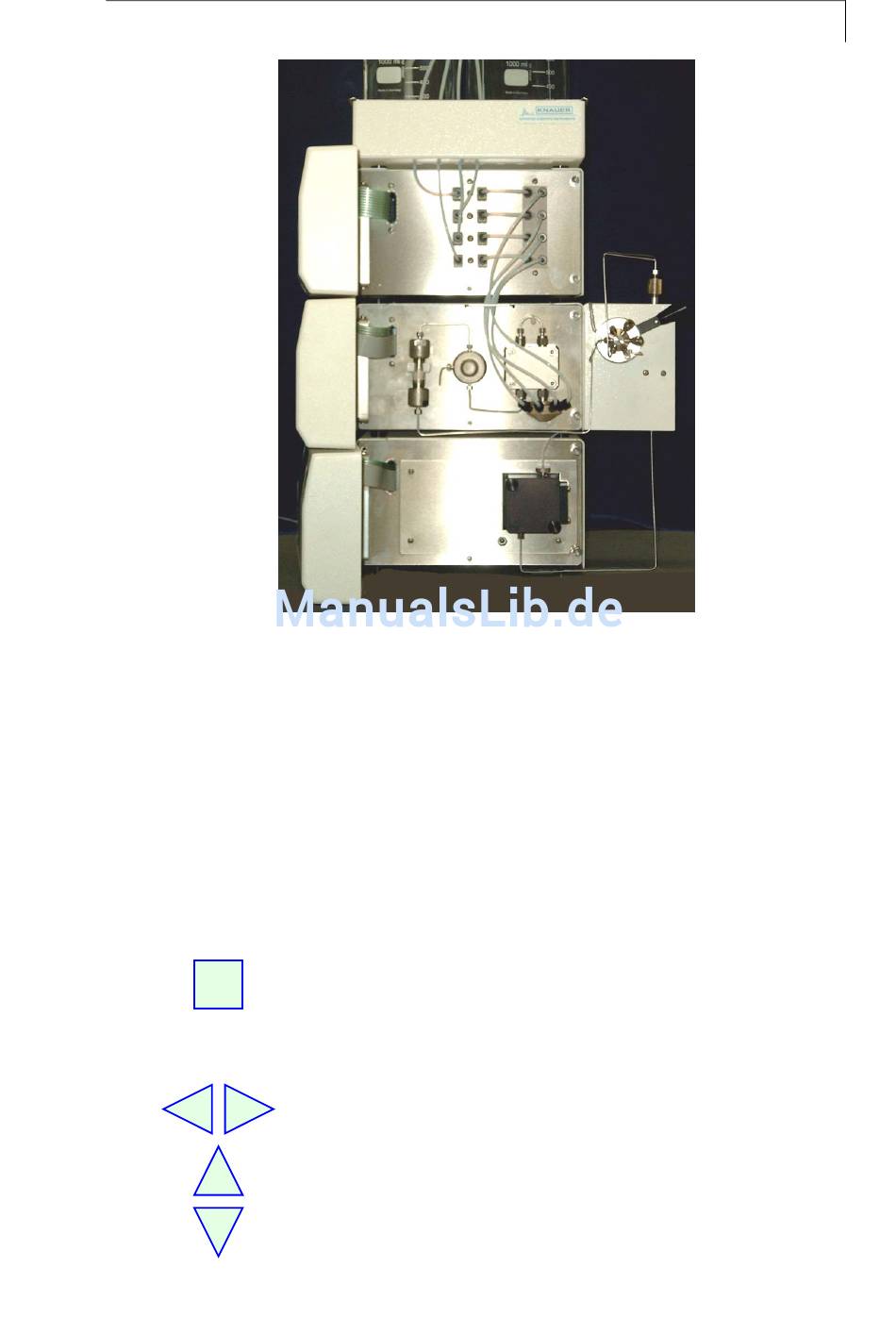

Smartline system (low pressure gradient with manual valve)
The foil key area (2) in Fig. 4 „Front panel of the UV-Detector 2500"
consists of an AUTOZERO key, four arrow keys and a standby key.
Pushing this button will adjust the baseline. Usually the button should be
pressed shortly before starting a chromatographic run. From any displayed
menus the display returns to the SIGNAL-menu.
The arrow keys in light green are used for moving the cursor on the display
and to confirm settings.
Use the arrow keys ► „right" or ◄ "left" to move and to position the
cursor on the display as well as to confirm entered or selected values.
Using the arrow keys ▲ „up" or ▼ „down" you can change the selected
parameter or the available options of it.
11
