Power Connections - Siemens SIMOVERT Master Drives Betriebsanleitung

Connection
3.1

Power connections

Standard rectifier units
DC link
(DC output)
C
L+
U1 V1 W1
L1 L2 L3
Mains
PE

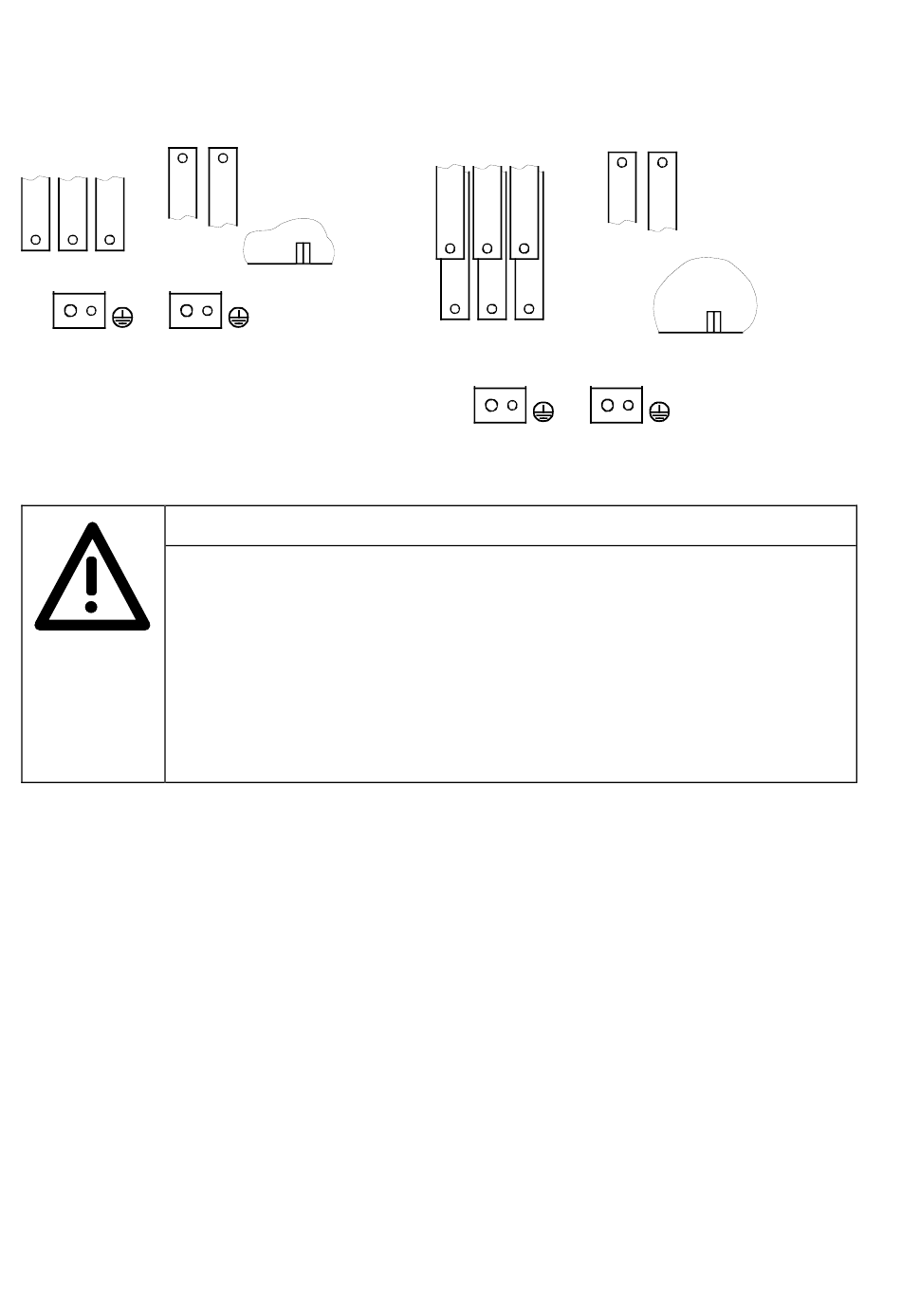

Figure 3.1 Mains connection
Incorrect connection to the mains will destroy the unit!
The excitation coils of contactors and relays connected to the same mains network as the
unit, or which are located in its proximity, must be wired with surge arresters, e.g. RC
networks.
The unit must not be operated via a current-operated earth-leakage circuit-breaker (DIN
VDE 0160).
A voltage may only be applied to the unit after connecting SIMOVERT Master Drives.
Swapping or shorting the dc link terminals will destroy the SIMOVERT Master Drives
inverter!
NOTE:
Type 6SE7036-1EE85-0RA0 double rectifiers must be grounded at both straps owing to the strap current
carrying capacity.
To avoid retroactive effects on the mains and to limit harmonics, the mains should be connected via a 2 %
commutation choke as detailed in Table 3.4. Mains plus commutation activity must be ≥ 3% u
carrying capacity of the dc link capacitors in the inverter).
The units are intended for permanent connection to the mains in conformity with DIN VDE 0160 Section
6.5.2.1. PE conductor connection: minimum cross-section 10mm
The connection cross-sections indicated in Table 3.1 are the maximum cross-sections which can be
connected. The information given is for multi-core cables. The cross-sections actually wired and the
associated connecting elements are to be selected in accordance with the regulations applicable in each
case - e.g. DIN VDE 100 Part 523, DIN VDE 0276 Part 1000, UL, CSA, . . . .
3-2
ENGLISH
D
L-
X19
A23
Mains fan
PE
Double rectifiers
(DC output)
Mains
1U 1V 1W
1L1 1L2 1L3
2U 2V 2W
2L1 2L2 2L3
PE
WARNING
2
.
Siemens AG
Common Rectifier
DC link
C D
L+ L-
X19
Mains fan
PE
(ac load
k
6SE7087-6AE85-0AA0
Operating instructions
02.04
