NL

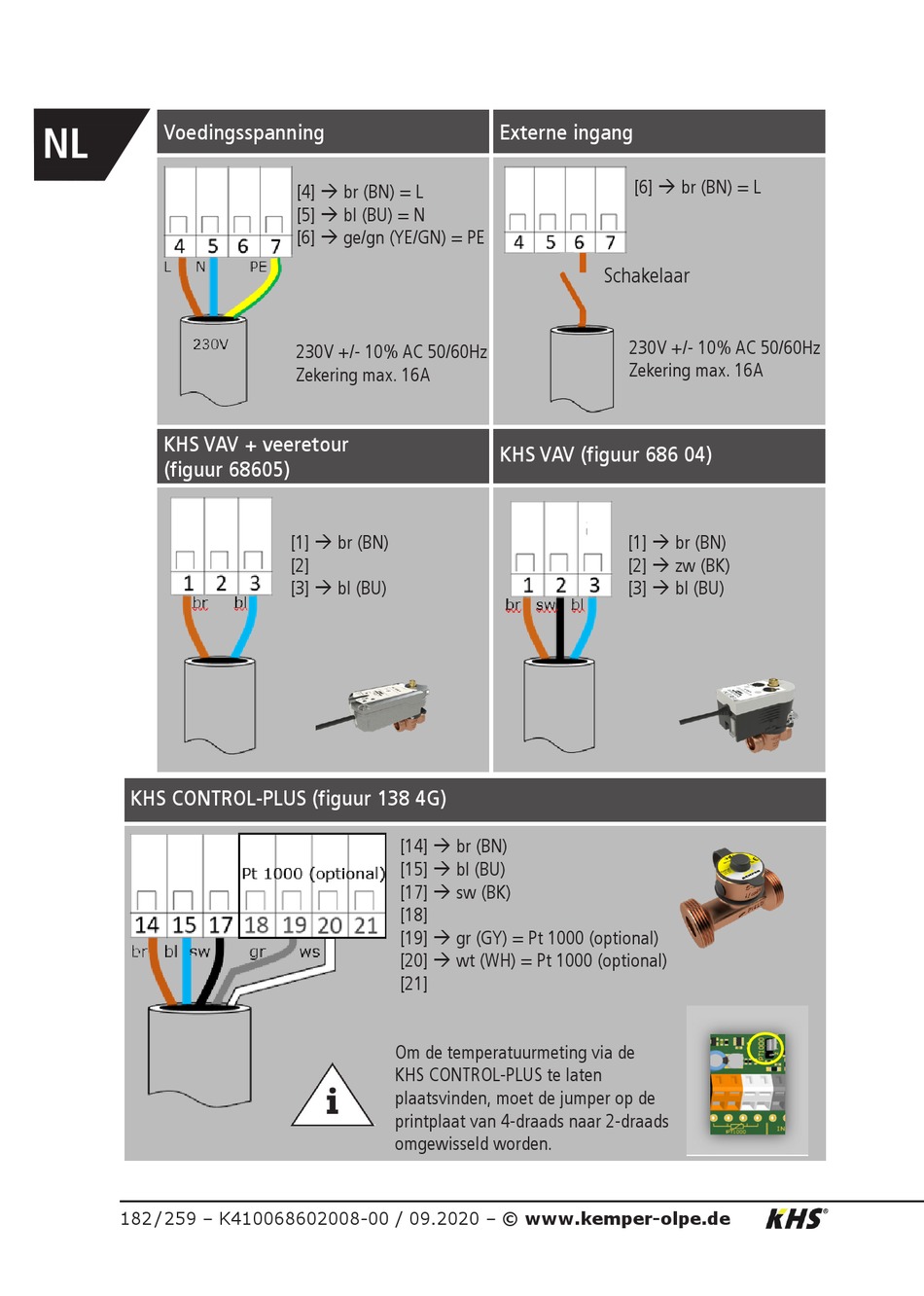

Voedingsspanning
KHS VAV + veeretour
(figuur 68605)
KHS CONTROL-PLUS (figuur 138 4G)
182 / 259 – K410068602008-00 / 09.2020 – © www.kemper-olpe.de
[4]  br (BN) = L
[5]  bl (BU) = N
[6]  ge/gn (YE/GN) = PE
230V +/- 10% AC 50/60Hz
Zekering max. 16A
[1]  br (BN)
[2]
[3]  bl (BU)
[14]  br (BN)
[15]  bl (BU)
[17]  sw (BK)
[18]
[19]  gr (GY) = Pt 1000 (optional)
[20]  wt (WH) = Pt 1000 (optional)
[21]
Om de temperatuurmeting via de
KHS CONTROL-PLUS te laten
plaatsvinden, moet de jumper op de
printplaat van 4-draads naar 2-draads
omgewisseld worden.

Externe ingang

[6]  br (BN) = L
Schakelaar
230V +/- 10% AC 50/60Hz
Zekering max. 16A
KHS VAV (figuur 686 04)
[1]  br (BN)
[2]  zw (BK)
[3]  bl (BU)
