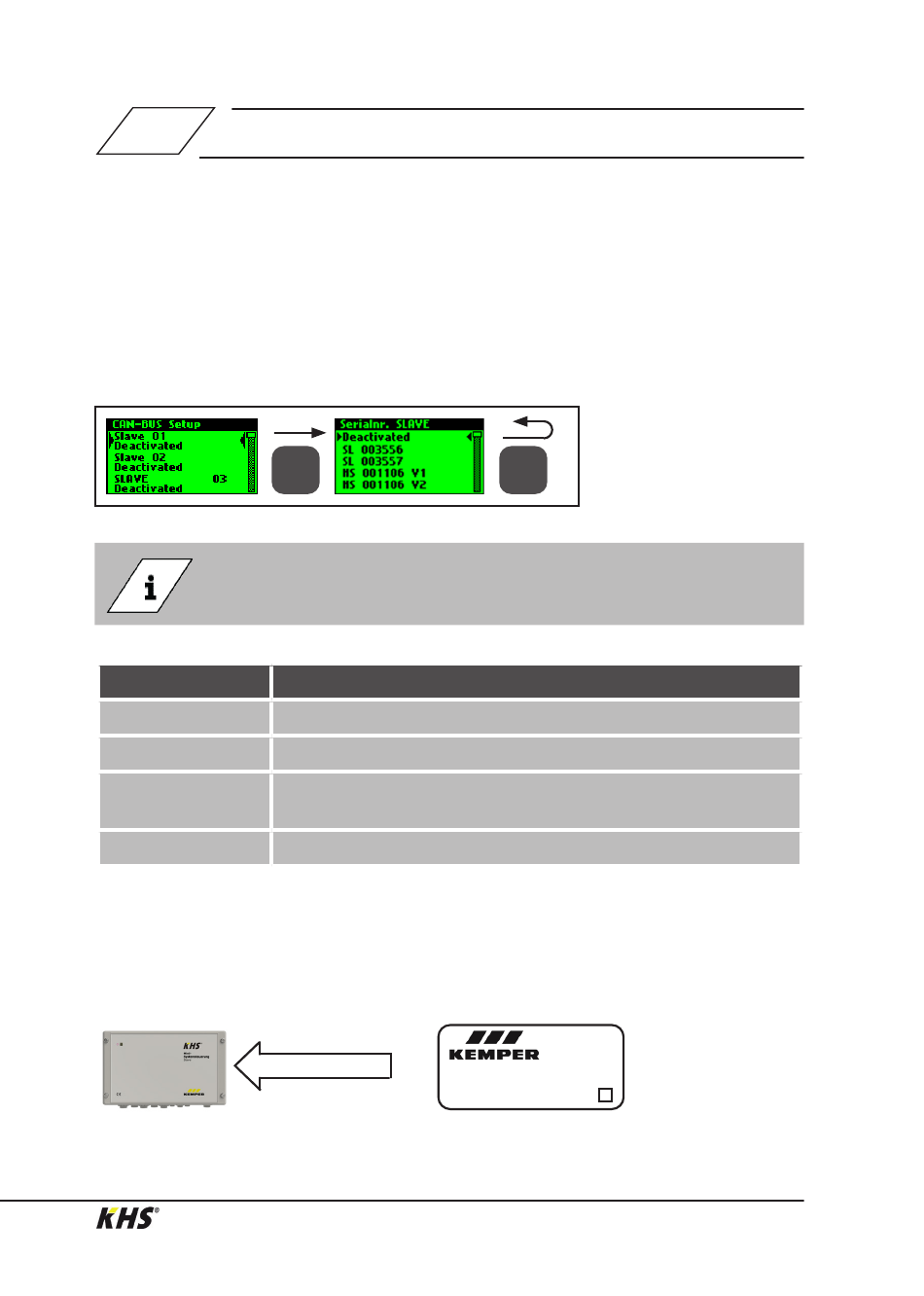

CAN bus setup

Before device settings can be made, the
Control System or hygiene flushing boxes,
which are connected to the MASTER 2.1
by the CAN bus cable, must be added to
the CAN bus network using the menu
Adding devices
Even if the hygiene flushing boxe has two valves, it only has one serial
number.
Term
SL XXXXXX
HS XXXXXX
V1 / V2
V1 / V2
HS XXXXXX
Deactivated
Serial number
Serial number KHS Mini Control System SLAVE
Ser. Nr.: XXXXXX
© www.kemper-olpe.de – 09.2020 / K410068602008-00 – 107 / 259
OK
Meaning
KHS Mini Control System SLAVE including serial number
KHS HS2 hygiene flushing box including serial number
Valve of the KHS HS 2 hygiene flushing box (V2=left; V1=right)
Valve of the KHS Flush Box PRO (V2=right; V1=left)
No device is added to the selected SLAVE
Typ:
Netz:
Art.Nr.: 8210068602006-00
Ser.Nr.: XXXXXX
item „CAN Bus Setup". The serial numbers
of connected devices are automatically
listed, and are assigned to a SLAVE in the
system.
OK
HW 2.XX
SW 2.XX
KW 07/14
KHS Mini Systemsteuerung SLAVE
230/1N/PE/50 Hz/max.3,15A
62
IP 54
