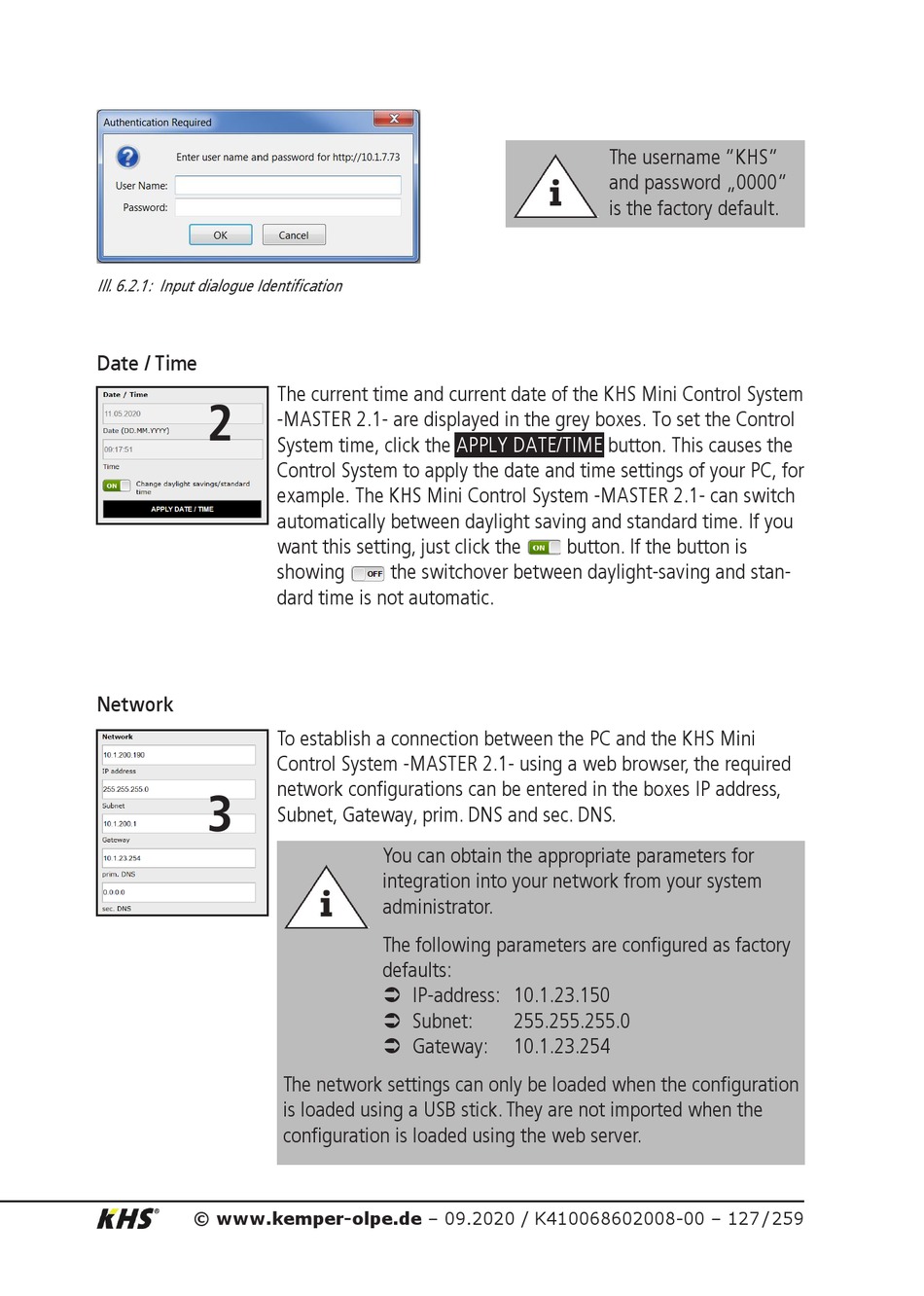

Kemper KHS Mini MASTER 2.1 Montage- Und Bedienungsanleitung Seite 127

Ill. 6.2.1: Input dialogue Identification
Date / Time
2
Network
3
© www.kemper-olpe.de – 09.2020 / K410068602008-00 – 127 / 259
The current time and current date of the KHS Mini Control System
-MASTER 2.1- are displayed in the grey boxes. To set the Control
System time, click the
Control System to apply the date and time settings of your PC, for
example. The KHS Mini Control System -MASTER 2.1- can switch
automatically between daylight saving and standard time. If you
want this setting, just click the
showing the switchover between daylight-saving and stan-
dard time is not automatic.
To establish a connection between the PC and the KHS Mini
Control System -MASTER 2.1- using a web browser, the required
network configurations can be entered in the boxes IP address,
Subnet, Gateway, prim. DNS and sec. DNS.
You can obtain the appropriate parameters for
integration into your network from your system
administrator.
The following parameters are configured as factory
defaults:
 IP-address: 10.1.23.150
 Subnet:
 Gateway:
The network settings can only be loaded when the configuration
is loaded using a USB stick. They are not imported when the
configuration is loaded using the web server.
The username "KHS"
and password „0000"
is the factory default.
APPLY DATE/TIME button. This causes the
button. If the button is
255.255.255.0
10.1.23.254
