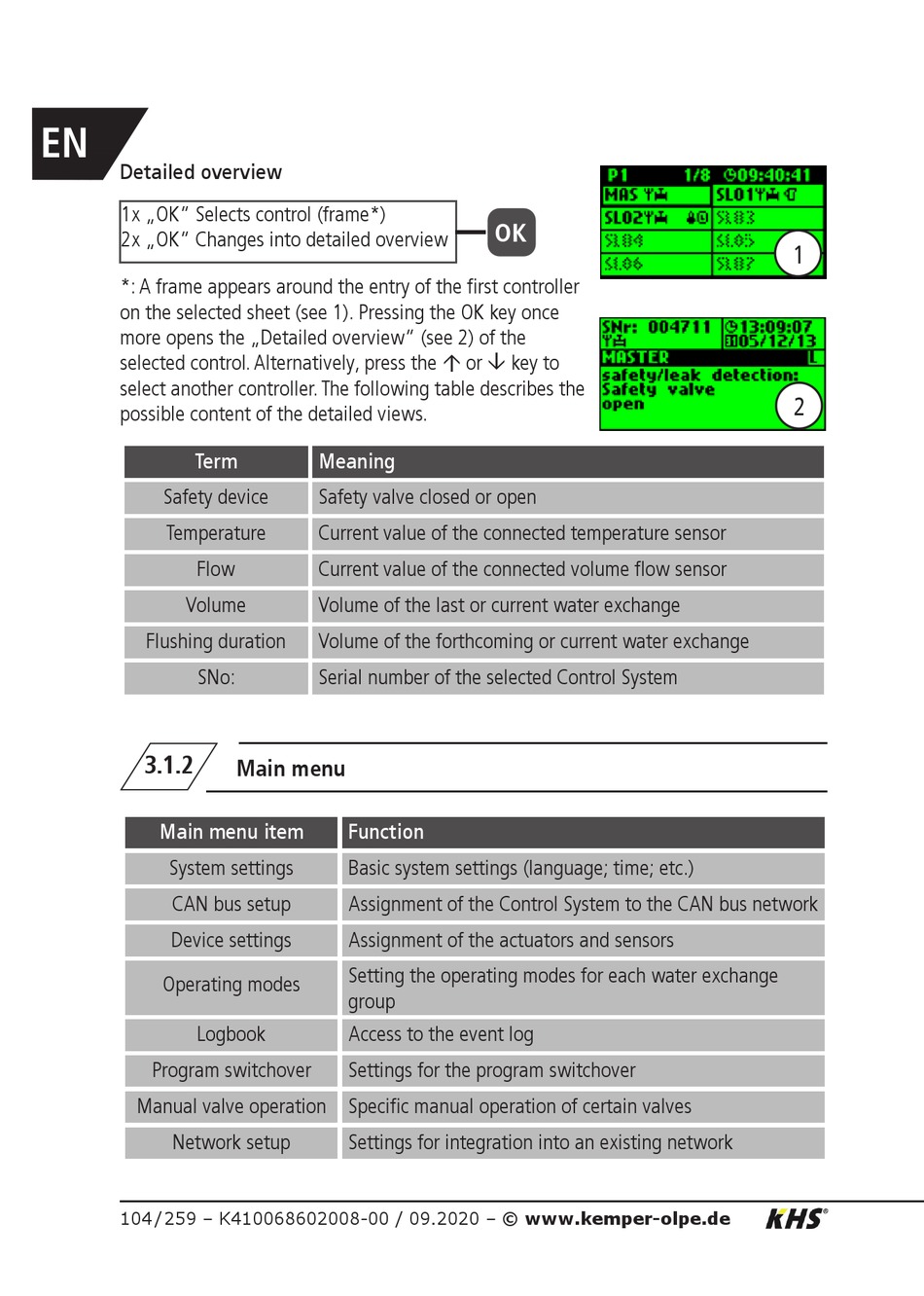

Detailed overview

1x „OK" Selects control (frame*)
2x „OK" Changes into detailed overview
*: A frame appears around the entry of the first controller
on the selected sheet (see 1). Pressing the OK key once
more opens the „Detailed overview" (see 2) of the
selected control. Alternatively, press the  or  key to
select another controller. The following table describes the
possible content of the detailed views.
Term
Safety device
Temperature
Flow
Volume
Flushing duration
SNo:
3.1.2
Main menu item
System settings
CAN bus setup
Device settings
Operating modes
Logbook
Program switchover
Manual valve operation Specific manual operation of certain valves
Network setup
104 / 259 – K410068602008-00 / 09.2020 – © www.kemper-olpe.de
Meaning
Safety valve closed or open
Current value of the connected temperature sensor
Current value of the connected volume flow sensor
Volume of the last or current water exchange
Volume of the forthcoming or current water exchange
Serial number of the selected Control System
Main menu
Function
Basic system settings (language; time; etc.)
Assignment of the Control System to the CAN bus network
Assignment of the actuators and sensors
Setting the operating modes for each water exchange
group
Access to the event log
Settings for the program switchover
Settings for integration into an existing network
OK
1
2
