(2) Release testing / stop button.
Short acoustic signal, all devic-
es of the shared radio group
(3) Perform similar actions for other
radio groups.
5 Successful connection test of the single
device and the shared radio group.

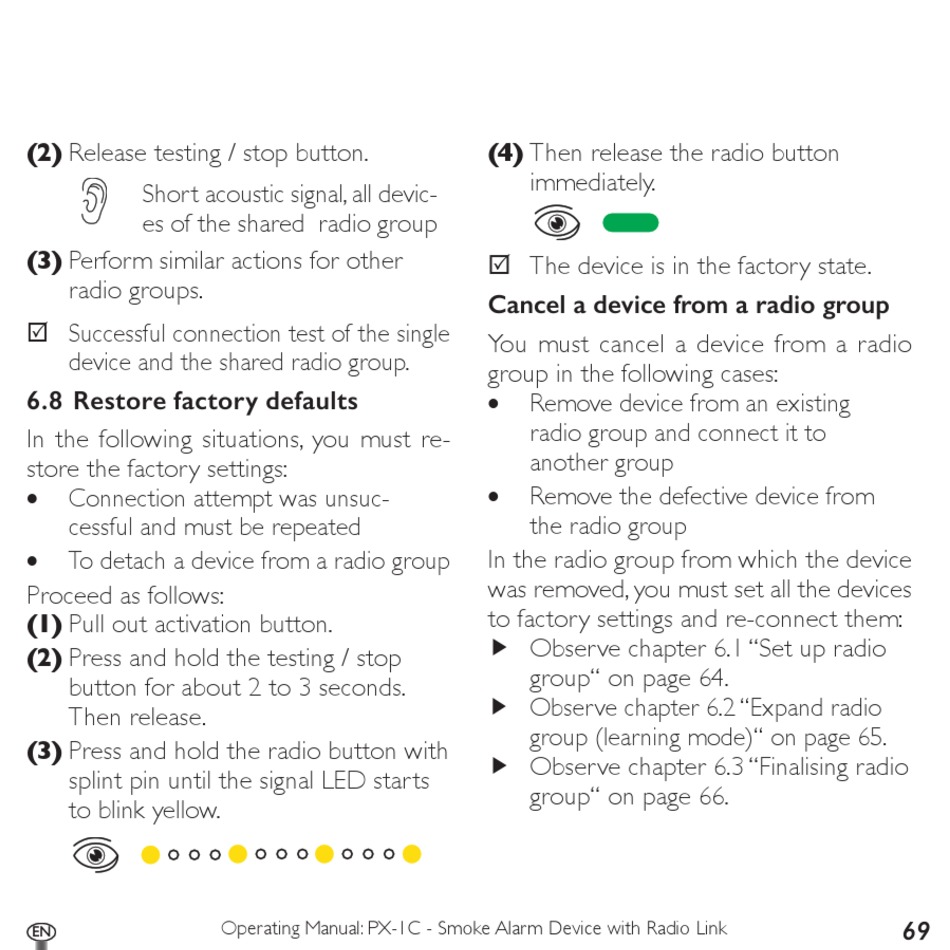

6.8 Restore factory defaults
In the following situations, you must re-
store the factory settings:
Connection attempt was unsuc-
•
cessful and must be repeated
To detach a device from a radio group
•
Proceed as follows:
(1) Pull out activation button.
(2) Press and hold the testing / stop
button for about 2 to 3 seconds.
Then release.
(3) Press and hold the radio button with
splint pin until the signal LED starts
to blink yellow.
EN
EN
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
(4) Then release the radio button
immediately.
5 The device is in the factory state.
Cancel a device from a radio group
You must cancel a device from a radio
group in the following cases:
Remove device from an existing
•
radio group and connect it to
another group
Remove the defective device from
•
the radio group
In the radio group from which the device
was removed, you must set all the devices
to factory settings and re-connect them:
f Observe chapter 6.1 "Set up radio
group" on page 64.
f Observe chapter 6.2 "Expand radio
group (learning mode)" on page 65.
f Observe chapter 6.3 "Finalising radio
group" on page 66.
69
