Example
Flat 1 Corridor
Flat 3

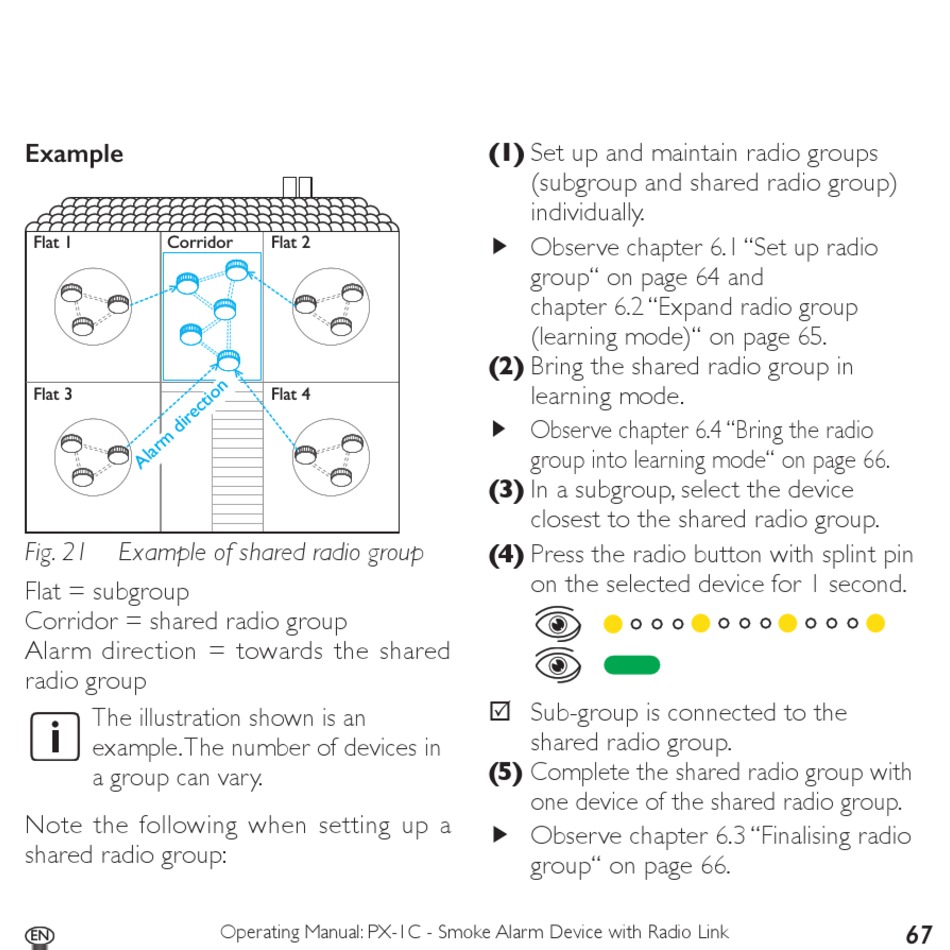

Fig. 21 Example of shared radio group
Flat = subgroup
Corridor = shared radio group
Alarm direction = towards the shared
radio group
The illustration shown is an
example. The number of devices in
a group can vary.
Note the following when setting up a
shared radio group:
EN
EN
Flat 2
Flat 4
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
(1) Set up and maintain radio groups
(subgroup and shared radio group)
individually.
f Observe chapter 6.1 "Set up radio
group" on page 64 and
chapter 6.2 "Expand radio group
(learning mode)" on page 65.
(2) Bring the shared radio group in
learning mode.
f Observe chapter 6.4 "Bring the radio
group into learning mode" on page 66.
(3) In a subgroup, select the device
closest to the shared radio group.
(4) Press the radio button with splint pin
on the selected device for 1 second.
5 Sub-group is connected to the
shared radio group.
(5) Complete the shared radio group with
one device of the shared radio group.
f Observe chapter 6.3 "Finalising radio
group" on page 66.
