Note the following for straight mounting
surface less than 1 m long and 1 m wide:
f Observe chapter "Rooms with
straight ceilings (slope angle < 20°)"
on page 58).
> 20°

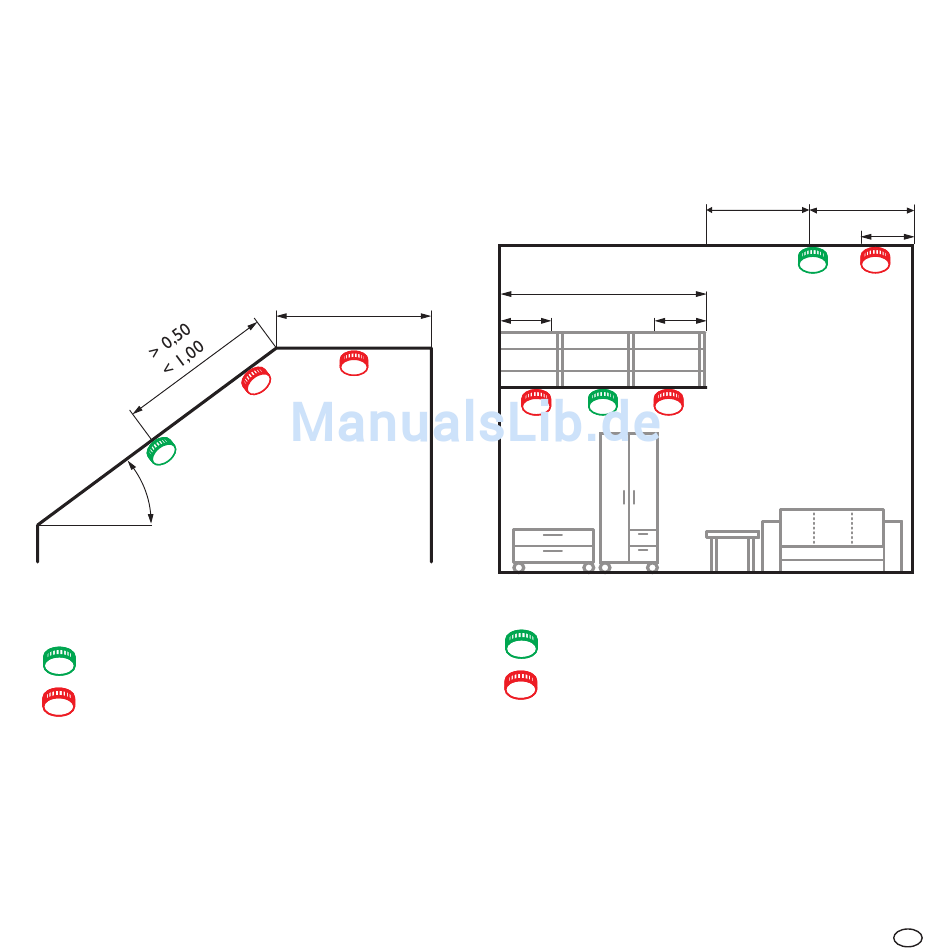

Fig. 19 Straight mounting surface less
than 1 m long and 1 m wide
Allowed
Not allowed
Note the following for straight mounting
surface less than 1 m long and 1 m wide:
f Observe chapter "Rooms with
slanted ceilings (slope angle > 20°)"
on page 59).
60
< 1,00
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
4.4 Rooms with a platform or gallery
>16 m² / >2 m
0,5 0,5
Fig. 20 Rooms with a platform or gallery
Allowed
Not allowed
Note the following for rooms with plat-
forms or galleries (area greater than
16 m , at least 2 m long and wide):
2
f Mount additional device under the
platform / gallery.
1/2 1/2
0,5
