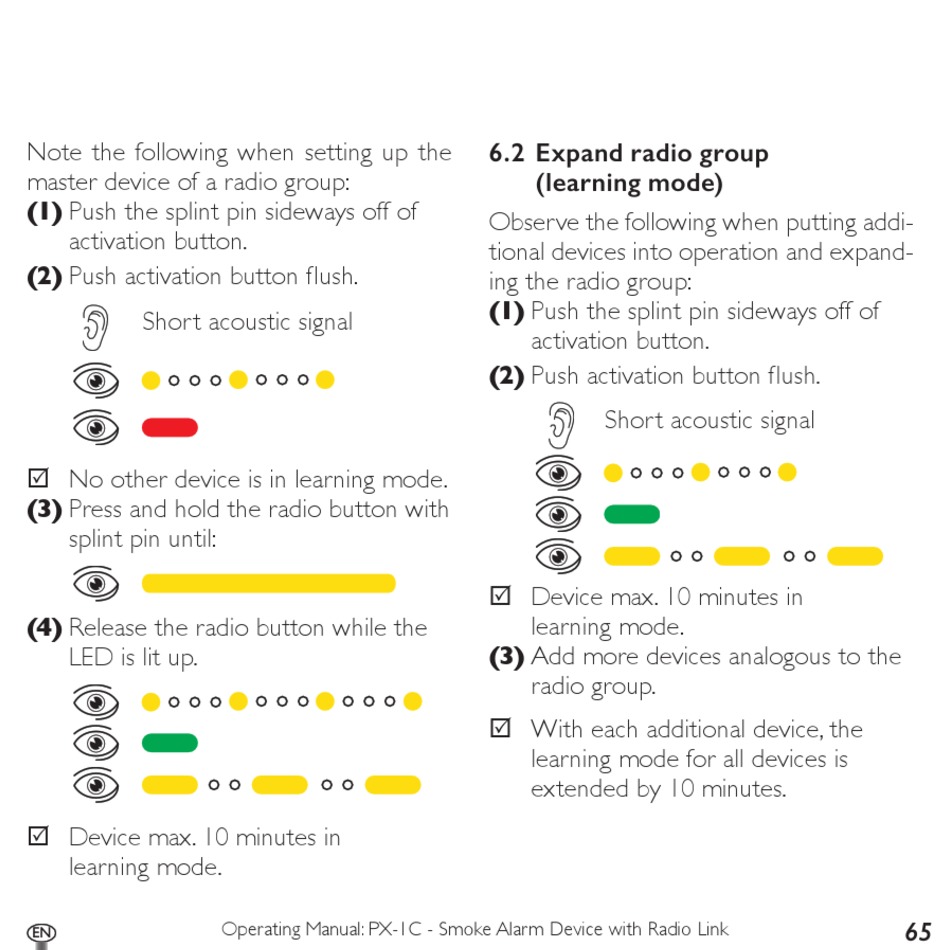

pyrexx PX-IC Betriebsanleitung Seite 65

Note the following when setting up the
master device of a radio group:
(1) Push the splint pin sideways off of
activation button.
(2) Push activation button flush.
Short acoustic signal
5 No other device is in learning mode.
(3) Press and hold the radio button with
splint pin until:
(4) Release the radio button while the
LED is lit up.
5 Device max. 10 minutes in
learning mode.
EN
EN
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
6.2 Expand radio group
(learning mode)
Observe the following when putting addi-
tional devices into operation and expand-
ing the radio group:
(1) Push the splint pin sideways off of
activation button.
(2) Push activation button flush.
Short acoustic signal
5 Device max. 10 minutes in
learning mode.
(3) Add more devices analogous to the
radio group.
5 With each additional device, the
learning mode for all devices is
extended by 10 minutes.
65
