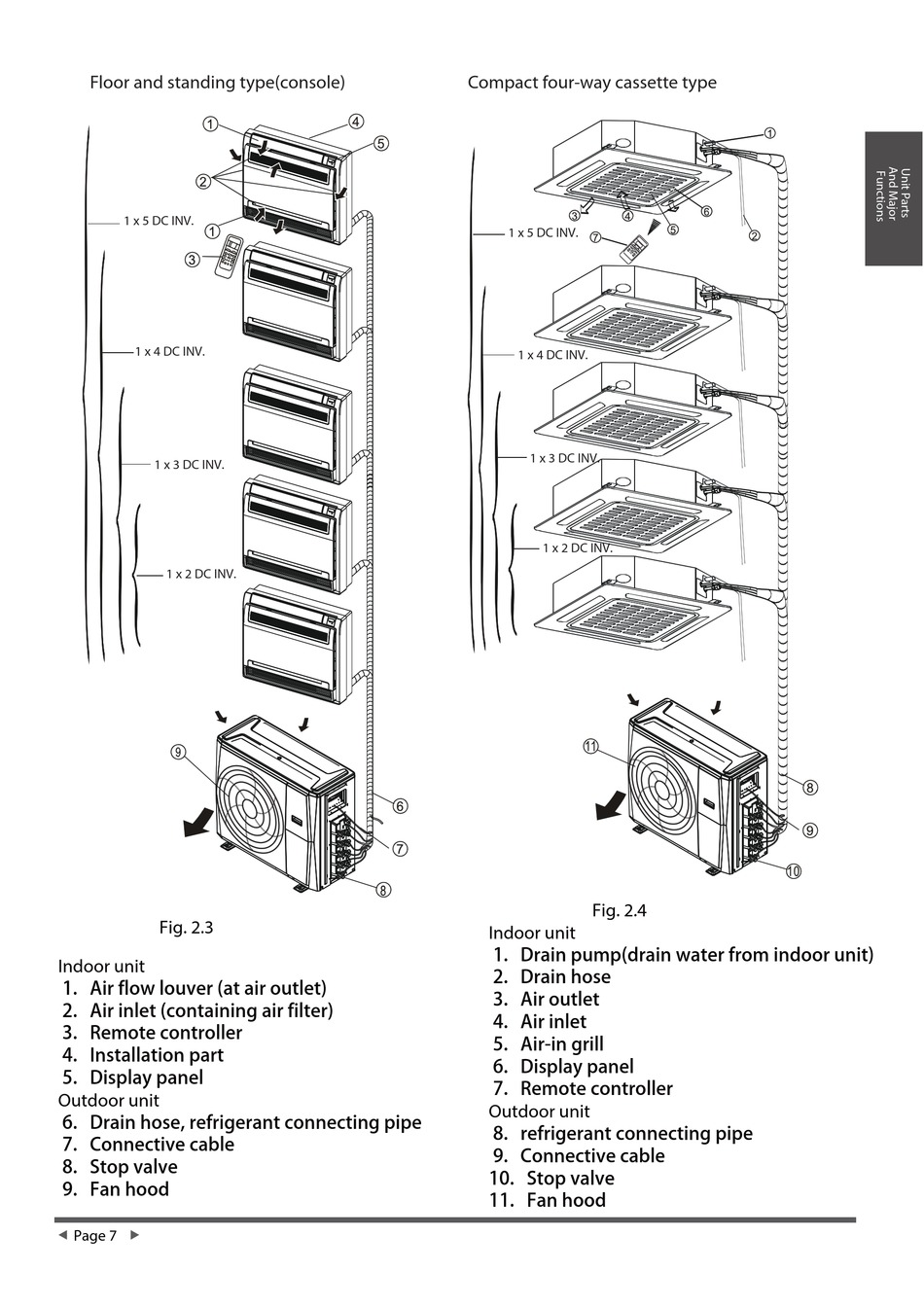

Floor and standing type(console)
1 x 5 DC INV.
1 x 4 DC INV.
1 x 3 DC INV.
1 x 2 DC INV.
Fig. 2.3
Indoor unit
1. Air flow louver (at air outlet)
2. Air inlet (containing air filter)
3. Remote controller
4. Installation part
5. Display panel
Outdoor unit
6. Drain hose, refrigerant connecting pipe
7. Connective cable
8. Stop valve
9. Fan hood
 
Page 7
Compact four-way cassette type
1 x 5 DC INV.
1 x 4 DC INV.
1 x 3 DC INV.
1 x 2 DC INV.
Fig. 2.4
Indoor unit
1. Drain pump(drain water from indoor unit)
2. Drain hose
3. Air outlet
4. Air inlet
5. Air-in grill
6. Display panel
7. Remote controller
Outdoor unit
8. refrigerant connecting pipe
9. Connective cable
10. Stop valve
11. Fan hood
