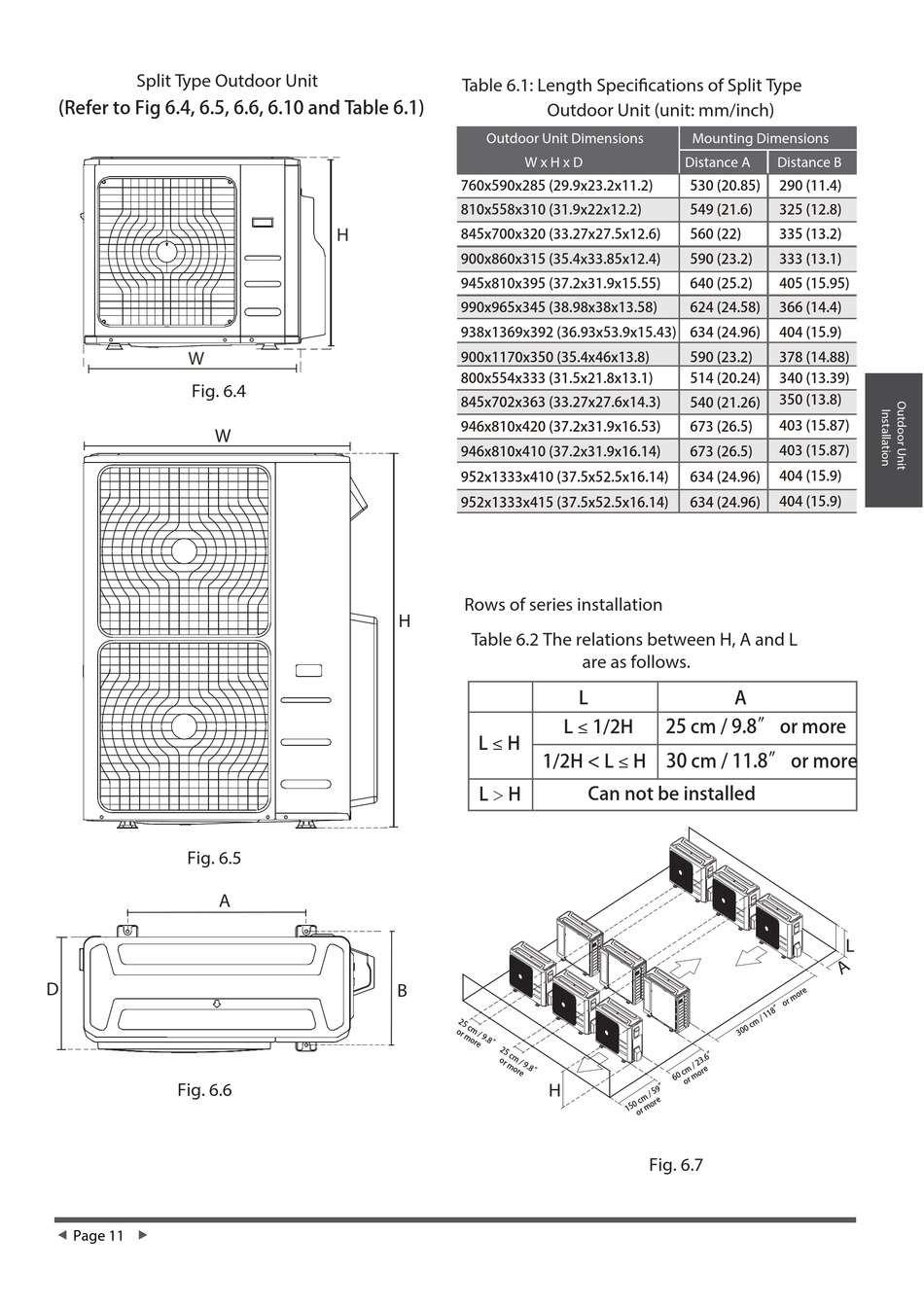

Split Type Outdoor Unit
(Refer to Fig 6.4, 6.5, 6.6, 6.10 and Table 6.1)
W
Fig. 6.4
W
Fig. 6.5
A
D
Fig. 6.6
 
Page 11
Table 6.1: Length Specifications of Split Type
Outdoor Unit Dimensions
760x590x285 (29.9x23.2x11.2)
810x558x310 (31.9x22x12.2)
H
845x700x320 (33.27x27.5x12.6)
900x860x315 (35.4x33.85x12.4)
945x810x395 (37.2x31.9x15.55)
990x965x345 (38.98x38x13.58)
938x1369x392 (36.93x53.9x15.43)
900x1170x350 (35.4x46x13.8)
800x554x333 (31.5x21.8x13.1)
845x702x363 (33.27x27.6x14.3)
946x810x420 (37.2x31.9x16.53)
946x810x410 (37.2x31.9x16.14)
952x1333x410 (37.5x52.5x16.14)
952x1333x415 (37.5x52.5x16.14)
Rows of series installation
H
Table 6.2 The relations between H, A and L
L ≤ H
L > H
B
Outdoor Unit (unit: mm/inch)
Mounting Dimensions
W x H x D Distance A
530 (20.85)
549 (21.6)
560 (22)
590 (23.2)
640 (25.2)
624 (24.58)
634 (24.96)
590 (23.2)
514 (20.24)
540 (21.26)
673 (26.5)
673 (26.5)
634 (24.96)
634 (24.96)
are as follows.
L
L ≤ 1/2H
25 cm / 9.8" or more
1/2H < L ≤ H
30 cm / 11.8" or more
Can not be installed
H
Fig. 6.7
Distance B
290 (11.4)
325 (12.8)
335 (13.2)
333 (13.1)
405 (15.95)
366 (14.4)
404 (15.9)
378 (14.88)
340 (13.39)
350 (13.8)
403 (15.87)
403 (15.87)
404 (15.9)
404 (15.9)
A
L
