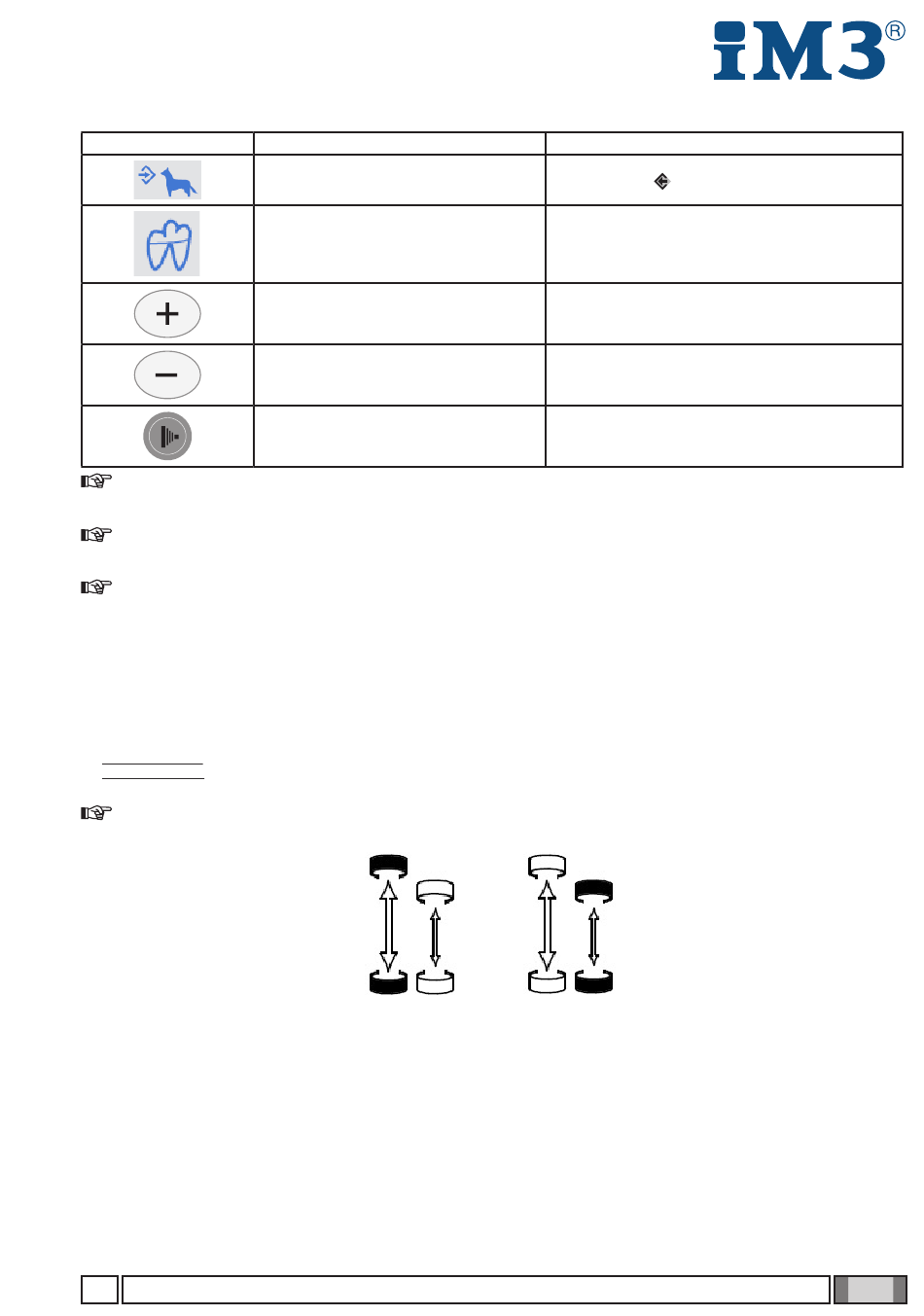

The main functions of the keys on the handheld vary according to how they are pressed:
KEY
NOTE: "Dead man" function: the system that starts x-ray exposure with the dedicated key on the wireless handheld allows x-rays
to be emitted only when the user presses and holds down the exposure key. X-ray emission will stop if the key is released ahead
of time.
NOTE: The function related to pressing the key briefly is performed by pressing the key which will activate the function assigned to
it. On the other hand, to perform the function carried out when the key is held down longer, press the key until the relative function
is started. The buzzer will ring shortly to signal the function has started.
NOTE: Warm-up: When the equipment has not been used for a prolonged period (more than 3 months) or when turned on for the
first time, a number of emissions with short times (0.01-0.02 sec.) are recommended and then some pictures with 0.1 sec. intervals
to better stabilize operation of the x-ray tube before using it.
3.4.

Checking the parameters

Before actually taking an exposure, make sure the exposure parameters for the examination in progress are correctly set.
• Checking the selected body build.
- "SMALL" selected: indicates the x-ray unit is set for patients with small builds.
- "LARGE" selected: Indicates the x-ray unit is set for patients with average-large builds.
NOTE: After the change has been made, the preset exposure times will automatically be modified.
Average/large build
EN
BRIEFLY PRESSED (less than 3 sec.)
Changes over from LARGE to SMALL and vice
versa (takes place when key is released).
Changes amongst the various types of teeth to se-
lect the area to be examined.
Increases the exposure times in steps, according
to the set scale.
Increases the exposure times in steps, according
to the set scale.
NO EFFECTS ARE OBTAINED IF THE KEY IS
PRESSED LESS THAN A SECOND.
selected
OPERATING INSTRUCTIONS
PRESSED LONGER (more than 3 sec.)
Saves the selected setting (exposure time, sensitivity, etc...).
The memo icon ( ) lights up when the data item can be
saved.
It displays the values corresponding to the tooth exposure ti-
mes in mGy and in mGy*cm2 if pressed again.
Increases the scroll speed of the values in increasing order.
Increases the scroll speed of the values in decreasing order.
STARTS X-RAY EXPOSURE (the button has to be held down
while the x-rays are being emitted, "dead man" function).
Small build
selected
9 9
