3. Operation

3.1. Turning the x-ray unit on and off

3.1.1. Turning on the basic X-ray unit

The control unit is turned on and shut off with switch (A).
The switch lights up to signal the control unit is energized.
NOTE: The technical specifications of the switch are given
in paragraph 1.2.2.

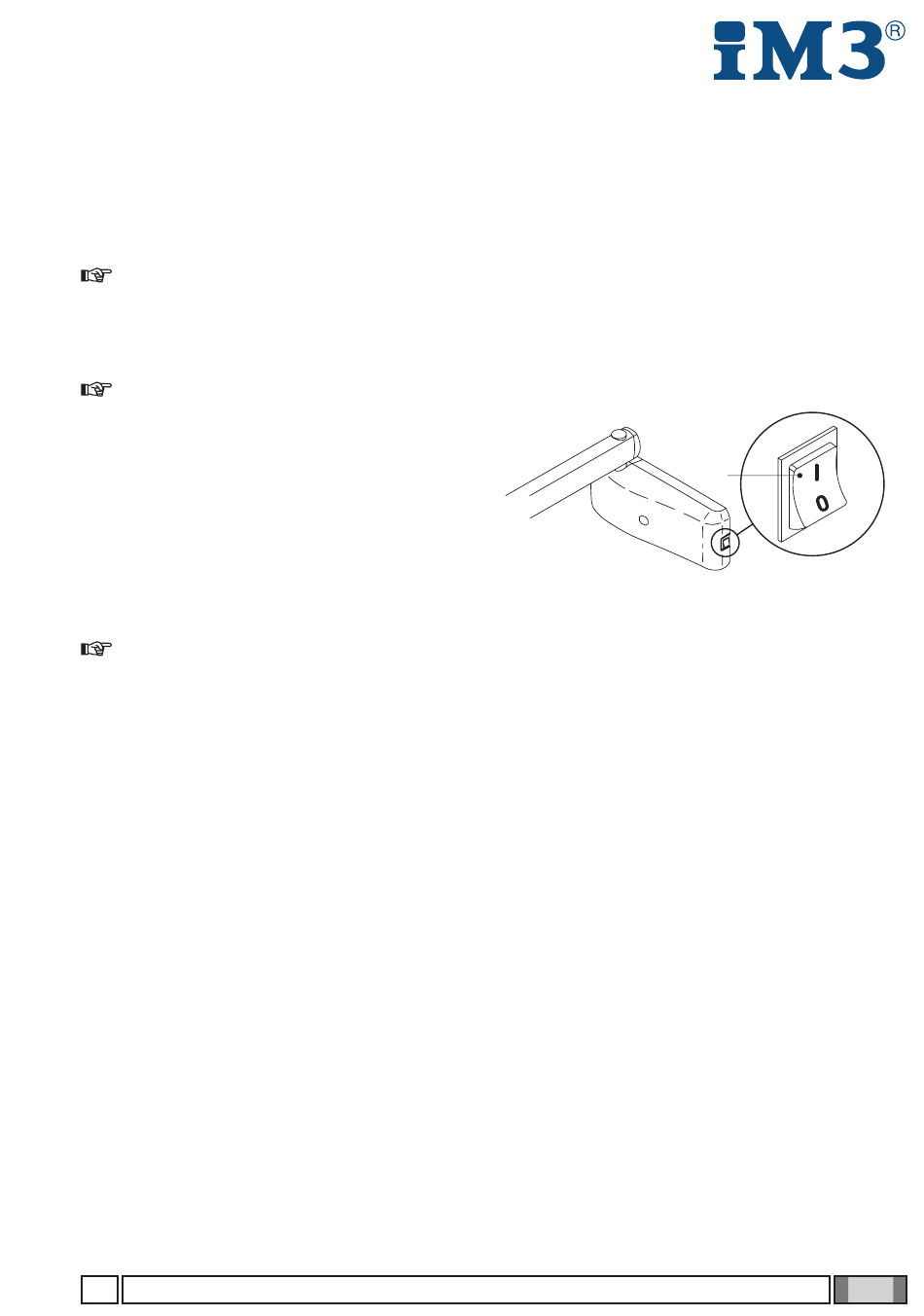

The control unit is turned on and off with the main switch
(A), as illustrated in the figure below. The switch lights up
when the control unit is energized. Whenever turned on,
the equipment performs an operational test that takes a few
seconds. A beep is provided at the end of the test.
NOTE: The exposure time and the parameters displayed
when the unit is turned on are the last ones set before the
central control unit was turned off. If the central control
unit is left untouched for a few minutes it will go into stand-
by mode. Simply press any key on the control panel to
reactivate it.

3.1.2. Turning on the handheld

The handheld is turned on by pressing any key, except for the one for
x-ray emission. A buzzer rings to confirm the apparatus has been turned
on. The unit will be in the standard configuration described in detail in
paragraph 3.1.3 and then search for the base it works with.
If the base is off, the handheld will not indicate the field nor status
"ready". If the base is latter turned on, the handheld will detect it within
thirty seconds or by pressing any function key on the pushbutton panel.
NOTE:
To optimize the range of the handheld while it is being used,
keep it away from walls and metal instruments and above
all, do not cover its antenna found on top of the screen. In
addition, performance may be reduced if the handheld is
moved too quickly while x-rays are being taken. Error E 31
may be displayed if out of range.
