• Once the temperature has been reached, wait the pause time for cooling signaled by symbol
• At this point the exposure function will be disabled until the screen shows "READY" again.
• As soon as "READY" appears on the handheld, another exposure can be taken.
5.

Advanced options

The handheld allows the user to view, edit and set some operating parameters by simply combining the keys provided. Follow the steps given below
to access:
Key combination
+
+
+

5.1. Setting the safety unlock mode

The x-ray unit has a safety unlock for the ball joint.
The default setting allows the ball joint to be disengaged by simply touching one of the keys present on the front of the head. To prevent accidental
contact with the keys from unexpectedly disengaging the ball joint (and therefore causing undesired movement of the head), the safety unlock mode
can be activated. In this mode, the ball joint is disengaged only if both keys are activated at the same time.
To set the safety unlock mode, press keys
. Scroll the options to select "ON" and press key .

5.2. Setting the operating mode

The x-ray unit features the following operating modes:
• En60: all the x-rays are taken at 60KV and 7mA.
• En63: all the x-rays are taken at 63KV and 6mA.
• En65: all the x-rays are taken at 65KV and 6mA.
• AUTO: the system automatically selects the best setting from amongst En60, En63 and En65 for each tooth-patient size combination.
NOTE: the current setting is displayed on the handheld for approximately 1 second for each tooth-patient size selected before the
relative exposure time is shown.
To set the operating mode, press keys
. Scroll the options to find the desired operating mode and then press key
14 14

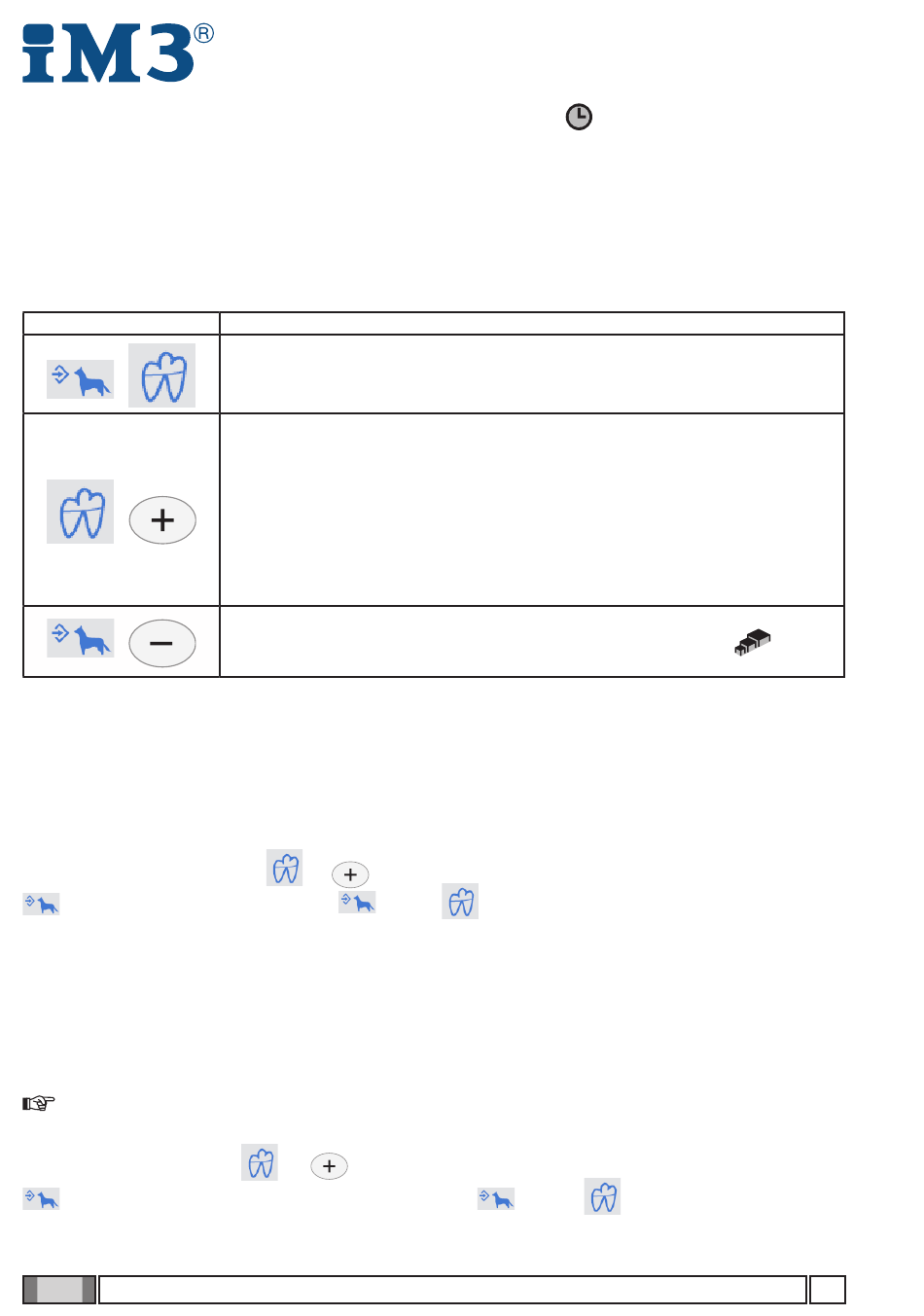

Description of command
Press these two keys to adjust the sensitivity levels (determined based on the table given below and type of
sensor/receiver used), modifying the current value from the minimum to the maximum allowable one (on a
scale from 3 to 25), with keys "+" and "-". Press key "size" to confirm the desired level and go back to the
main screen.
This menu is not available in USER mode.
Hold down these two keys to go to the set up menu (from P 01 to P 07).
Press key "Build" to make the selection. Once within the individual configurations, they can be scrolled with keys
"+" and "-" and selected by pressing key "Build" again. Key "tooth" quits set up without saving the setting.
The configurations are given in detail below:
P 01: Sets the stand by time (from a minimum of 5 to a maximum of 30 minutes).
P 02: Assigns an identification tag to the x-ray unit's base (from 1 to 5 or none).
P 03: Shows the list of software versions-
P 04: Handheld code display
P 05: Activates/deactivates the safety unlock mode
P 06: Selects the operating mode (En60, En63, En65 and AUTO).
P 07: Sets the type of removable cone used
Activating/deactivating the USER mode Icon comes on to signal USER mode is activated.
and to go to the set up menu. Scroll the parameters up to parameter P05 and press key
Press key
and to go to the set up menu. Scroll the parameters up to parameter P06 and then press key
OPERATING INSTRUCTIONS
.
(see section 5.1)
to quit the set up menu.
. Press key to quit the set up menu.
