9. Dismantling the equipment when no longer used

As set out in Directives 2002/95/ EC, 2002/96/ EC and 2003/108/ EC, on the restrictions of the use of certain hazardous substances in electrical and
electronic equipment along with collection, treatment, recycling and disposal of waste electrical and electronic equipment the latter must be treated
as municipal waste, therefore sorted and collected separately. When new equipment of equivalent type is purchased the waste equipment should be
returned to the distributor on a one-to-one basis for disposal.
As far as reuse, recycling and other forms of waste recovery mentioned above are concerned, the manufacturer is responsible for the actions specified
by individual local laws.
Efficient collection of sorted waste separately to recycle and treat waste electrical and electronic equipment aids in preventing negative environmental
impacts while protecting human health. In addition it facilitates recycling of the materials used to construct the equipment.
The crossed out wheeled bin placed on the equipment indicates that the waste equipment must be collected separately from other waste.
ATTENTION!
Illegal waste disposal carries heavy fines defined by local laws.

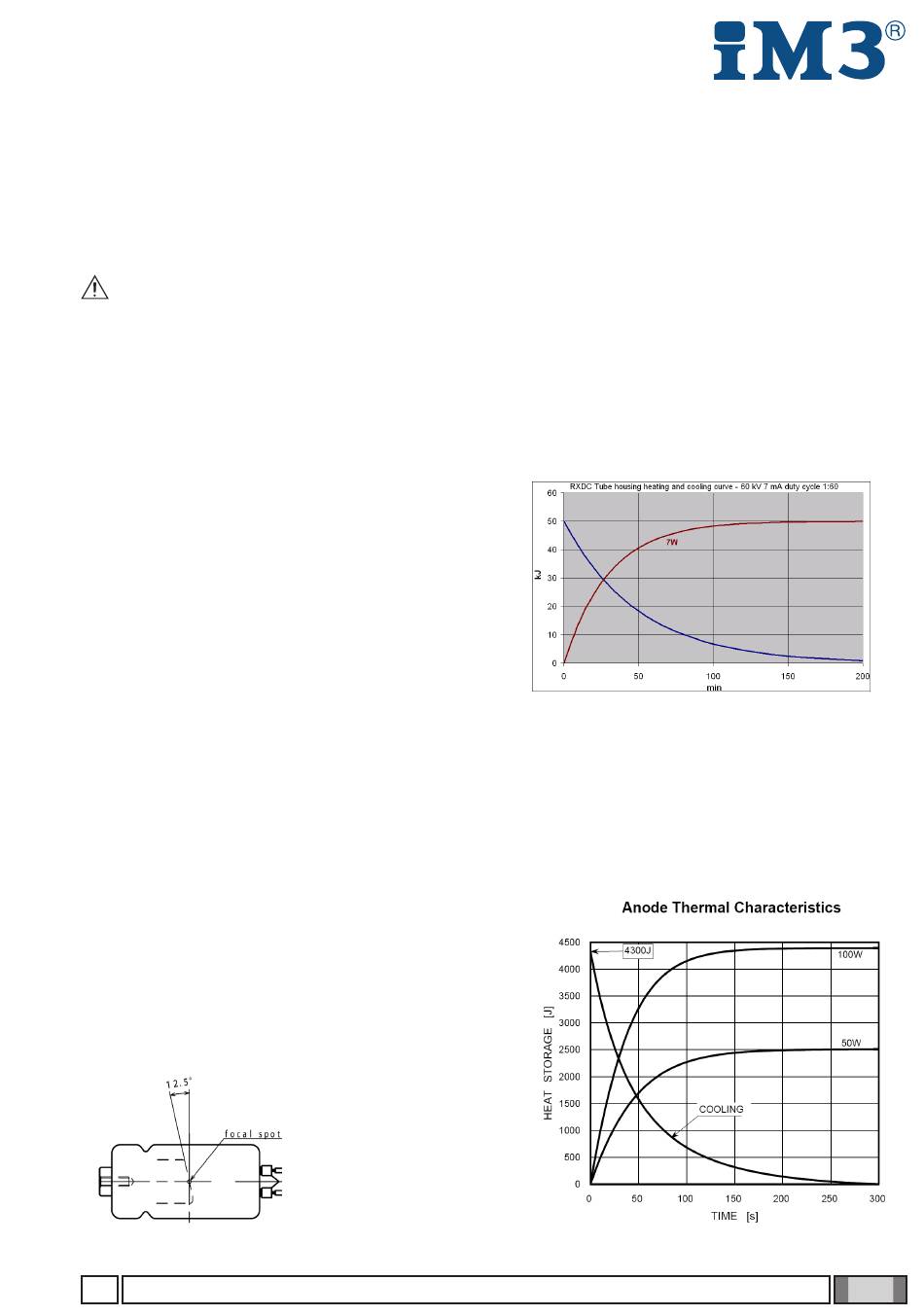

10. Technical specifications

SPECIFICATIONS
• Rated voltage: 230Vac/115Vac (according to the model).
• Max. mains voltage fluctuation: ±10%.
• Maximum current: 6A for the 230Vac version; 10A for the 115Vac version at
60KV 7mA
• Frequency: 50/60Hz.
• Maximum absorbed power: 1,4KVA.
• Apparent line resistance:: 0,5Ω(230Vac), 0,2Ω(115Vac).
• Fuses: 6.3A T for the 230Vac version; 10A T for the 115Vac version
• Generator: constant potential type.
• High nominal voltage: 60 / 63 / 65KV.
• Nominal current: 6 / 7mA.
• Power requirements at 0.1 sec: 420W (60KV 7mA), 378W (63KV 6mA),
390W (65KV 6mA).
• Current reference time: 0.7 mAs (7mA – 0.1s) / 0.6 mAs (6mA – 0.1s).
• Focal spot : 0,4mm
• Total filtration: 2.5mm Al @ 65KV.
• Half-value layer (HVL): >2mm Al @ 65KV.
• Leaked radiation: <0,25mGy / h at 1 metre from focusing point at 65KV 6mA,
duty cycle 1:60
• Ability to be reproduced: 0,05.
• Electrical classification: Class I - Type B, intermittent service.
• Set exposure time: from 0.010 to 1,000 seconds
• Accuracy of times indicated: ±10%.
• mGy display precision: ±30%.
WEIGHTS
• Weight of the unit with packaging: 38Kg max.
• Weight of the hand-held control panel: 0,3 Kg.
RADIOGENIC TUBE F.s.=0,4 mm
• Radiogenic tube: TOSHIBA D-041.
• Focal spot: 0,4 mm in compliance with IEC 336 / 1993.
• Tolerance for position of the focal spot along the reference axis: ± 2%.
• Nominal high voltage and maximum allowable current: (65KV, 7mA) ± 10%.
• Anode construction material: Tungsten (W).
• Anode inclination: 12,5°.
• Anode thermal load: 4,3 KJ (6 KHU).
• Maximum continous heat dissipation: 100 W.
• Operating cycle: 1:60 (1 second exposure - 60 seconds pause time).
