CONE TECHNICAL SPECIFICATIONS
• SSD=30cm (12"), X-ray beam less than or equal to Ø55mm.
•
HANDHELD BATTERIES
• Type 2 x AA Alkaline 1.5 V
TECHNICAL FACTOR MEASURE
The high voltage value is measured with a non-invasive instrument.
The anode current is controlled inside with measurement resistors and circuits to obtain very precise measurements. Operation of the circuits is
checked at the time of testing. Once assembled, the anode current can no longer be directly measured.
The exposure time should be evaluated by measuring the time that elapses from the moment in which high voltage exceeds 75% of the nominal va-
lue to the moment in which it drops below this value. Considering the high gradient of the rising and trailing edges of the anode voltage and squaring
due to inherent filtration, use of a threshold ranging from 25% to 75% may be considered non-influential.

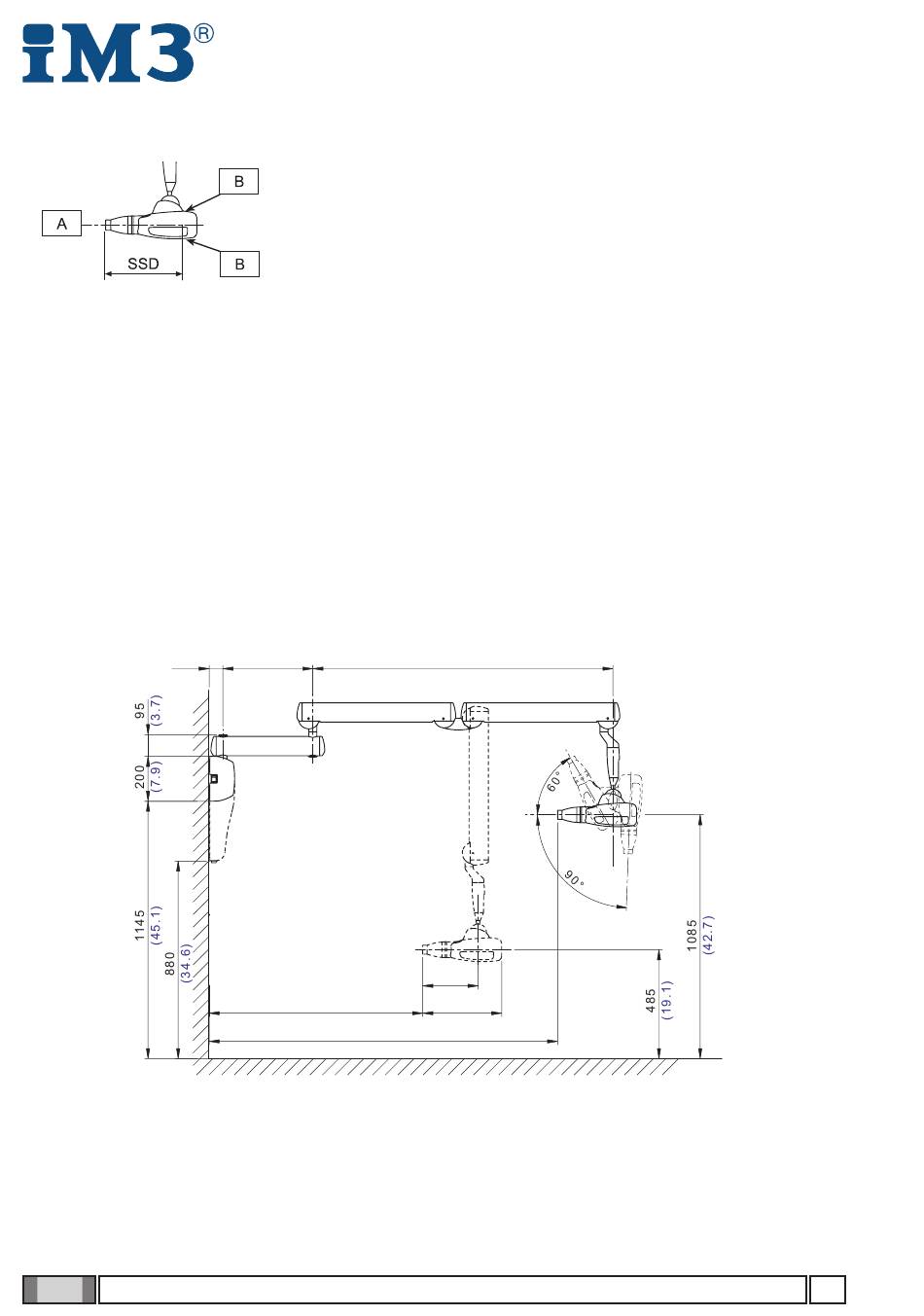

11. Dimensions

All dimensions are expressed in millimeters (inches).
60
( 2. 4 )
18 18
A – REFERENCE AXIS
B – FOCAL SPOT IDENTIFICATION
400 / 600 / 900
(15.7/23.6/35.4)
950 / 115 0 / 14 50
(3 7.4 / 4 5.3 / 57. 1)
155 0 / 17 50 / 205 0
( 61. 0 / 68 .9 / 80. 7)
OPERATING INSTRUCTIONS
1340
(52. 8)
245
(9.6)
350
(13.8)
