2.2 User interface

The Eve Single Pro-line DE has a colour display which informs the user on the progress of the charging by using status
indications.
2.2.1 Status indications on Eve Single Pro-line DE
models
General information on charging station
The charging station ID: Identification is determined by
1
the reseller or operator of the central management
system. Use this ID to convey to a helpdesk for which
charging station you need support.
Date and time: these are set through a central
2
managemant system (automatically) or during
installation, using the Service Installer application.
If the product does not have a current time, this field is
hidden.
Status and information screen
Status and information screen: the charging station
informs the user of its current status and provides the user
with a response to the actions performed. The following
information is available:
Status information.
3
Maximum charging capacity of the outlet.
4
Current charging capacity to the connected
5
vehicle.
Status indicator (refer to paragraph 2.2.2).
6
Energy picked up during the current transaction.
7
Duration of the current transaction.
8
Instruction field
During a charging session the public key is shown on
9
the display.
User instructions will be displayed in this location.
10
Where an error occurs, an error code and instruction will
be shown (see Appendix A for more information).
A full progress bar indicates the necessary steps are
11
completed and charging will start.

2.2.2 Status indicator symbols

Charge pass accepted,
cable connected
--kW
--kW --.--kWh
--.--h
Charging transaction
active, with charging speed
indication
Eve Single Pro-line DE manual | Version 1.0 | February 2020
ALFEN
5
akux Imzb fq2u rt7d qoly 7ipe 6ez4 ke2b nevf b3I3

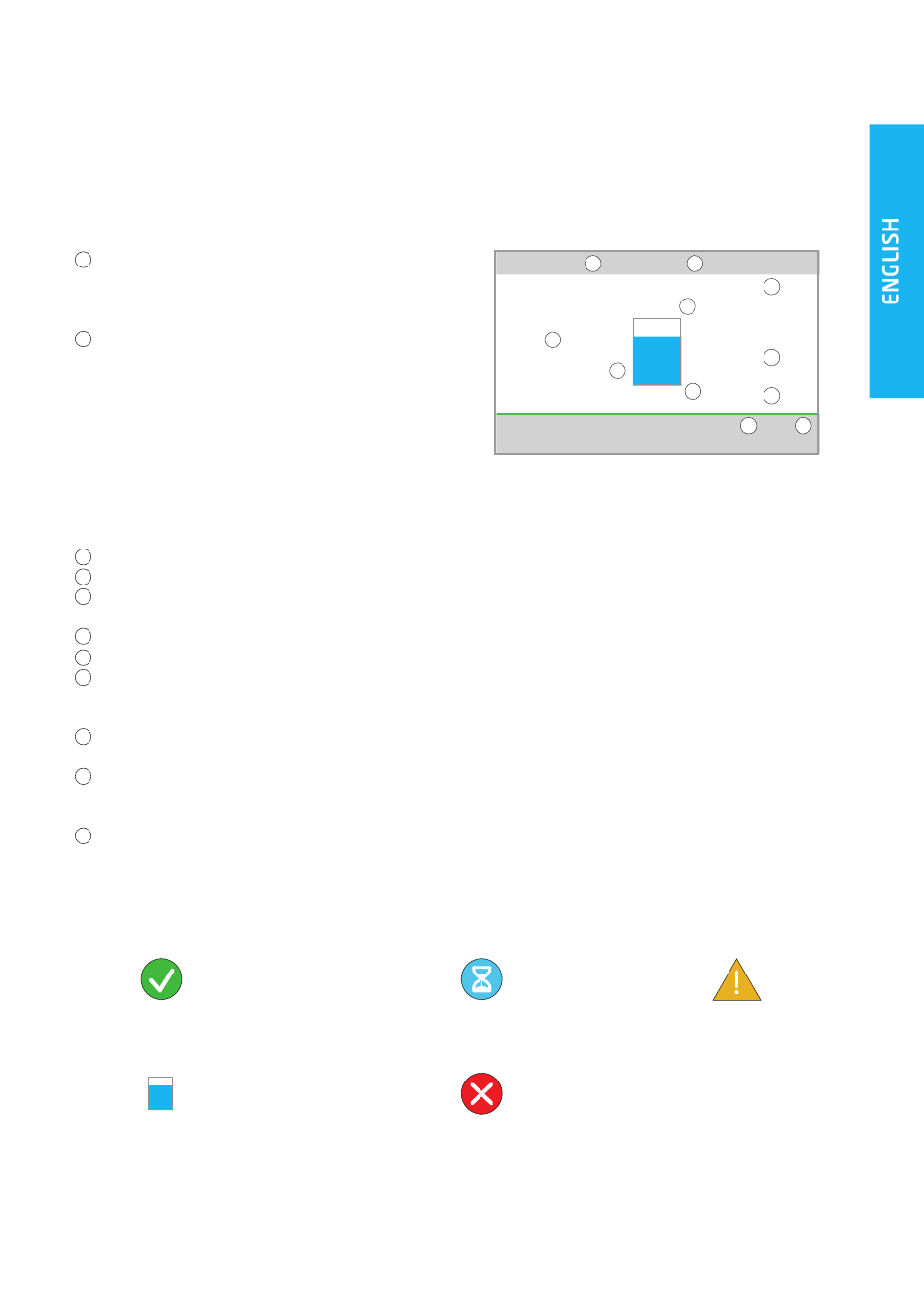

Figure 1: Display of Eve Single Pro-line DE during charging with
type 2 Socket
Communicating with vehicle
or charging complete
Error, notification with error
code
2. PRODUCT
22/01/2019 12:30
1 2
Fahrzeug wird geladen
22kW
4
18.1kW
22.67kWh
6
8
01:23h
Um Laden zu stoppen
Ladekabel abziehen
Warning, notification with
error code
3
7
9
10 11
9
