APPENDIX B: DEFAULT SELECTIONS FOR
OPTIONAL FACTORY SETTINGS

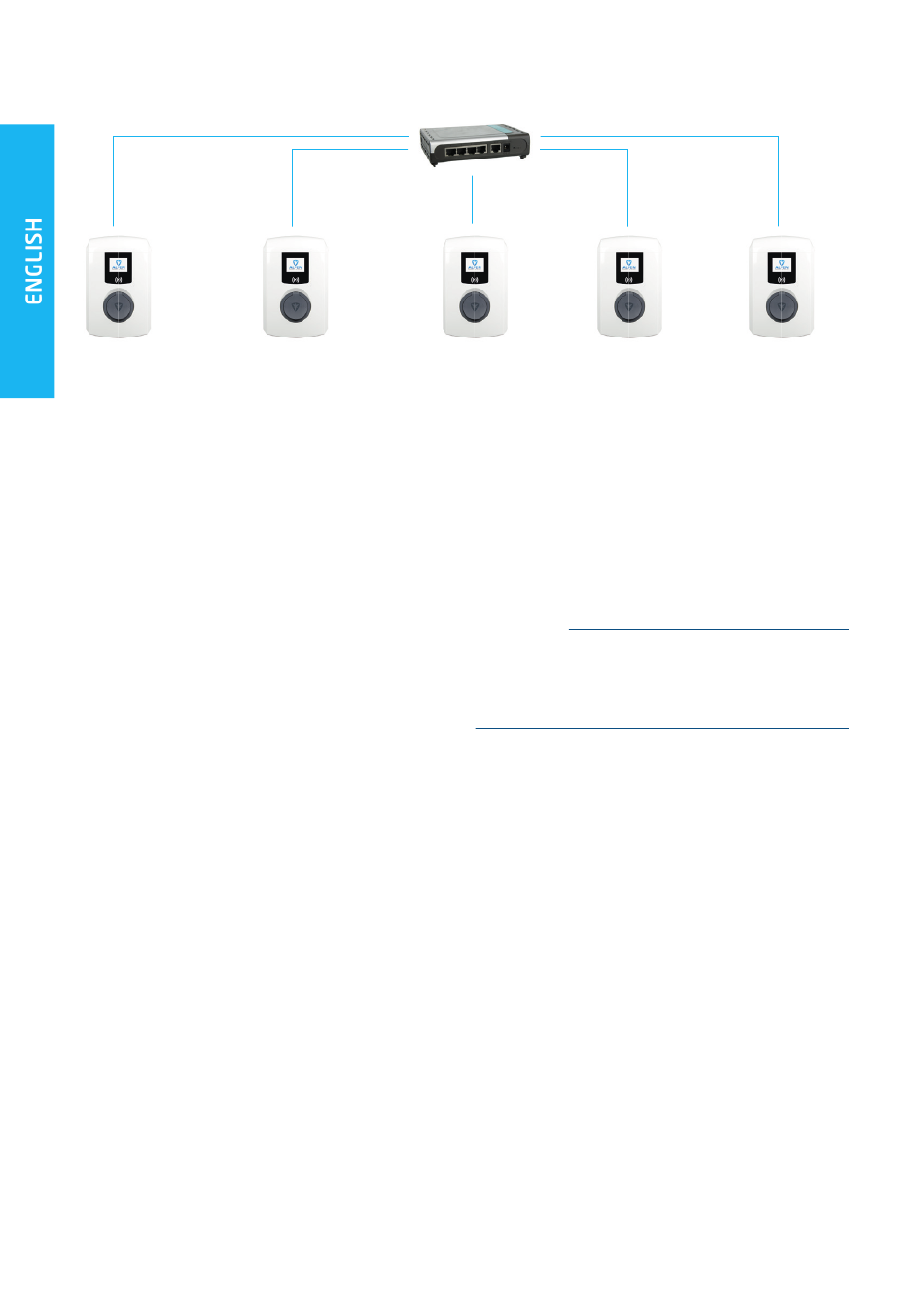

Figure 10: Smart Charging Network with Eve Single Pro-line DE models
To ensure the correct operation of an SCN, it is important
that all settings are correctly confi gured. As soon as the
communication for the charging stations is installed, the
charging plaza will at least have the following settings:
• Total capacity for all charging stations combined.
• Maximum charging current per outlet: this is determined
by the group in the local installation and the maximum
charging current of the charging station.
• Minimum charging current per outlet; This setting is:
- a security setting; when a charging station loses net
work connection, all charging stations will use this
value. The charging station that lost connection will
continue to charge on this minimal charging current
while the other charging stations reserve this value,
and will temporarily not utilize this.
- Minimum speed as a preferred setting; as soon as an
extra outlet is used for charging and the remaining
capacity is not enough to supply the minimum, the
outlets used will alternate; one will charge while the
other pauses, in 15 minute intervals.
• Alternation period (pause) in the event of insuffi cient
capacity; by default, this is 15 minutes. The administra-
tor can change this, if desired.
Preconditions for a properly functioning Smart Charging
Network:
• All charging stations are in the same netwerk (subnet, IP
range) By default, this is 169.254.x.x.
• CAT5 UTP/Ethernet cable (minimal), CAT6 for cable runs
over 100m.
• Minimum 10Mbps network
• UDP port: 36549, inbound-outbound.
• Use the DHCP server, if possible.
• Without a DHCP server, the charging stations obtain an
IP address via Auto-IP.
• All charging stations are fed from the same point, there
is no layered electricity grid.
32
• An (existing) switch or router with a suffi cient amount
of connection points is available to connect all charging
stations together.
- Looping through from charging station to charging
station
is not possible.
- Tip: Always make sure one port is available to connect
a laptop with the Service Installer application.
Otherwise, make sure the laptop is in the same subnet
as the charging stations.
REMARK
If network components like a switch or router are to be
installed outdoors, we strongly advise purchasing the
components accordingly and installing them in a suitable
installation cabinet.
Adding a charging station to the Smart Charging
Network
With the Service Installer application, all charging stations
in the Smart Charging Network will be set up at the same
time. All charging stations within the same subnet will be
identifi ed by the Service Installer application.
You can initialise the Smart Charging Network from the
Service Installer. Select the charging station, navigate
through the 'Device' menu to 'Add to new SCN' . Next,
follow these steps:
• Name your SCN (charging plaza).
• Next, click on another charging station and click '+' .
The charging station will be added to the desired SCN.
The charging station will assume the network settings.
• Repeat step 2 until all charging stations are added to
the SCN.
Eve Single Pro-line DE manual | Version 1.0 | February 2020
