Preparing the charging station
The front cover is firmly attached to the charging station
and is secured with two screws on the top, two in the
middle and two on the bottom. Prior to the installation,
the white front casing must be removed from the charging
station. This is done as follows:
1 Place the charging station on the floor, front cover
down. Use some soft flooring or protect the casing to
prevent scratches or damage to the charging station.
2. Loosen the six screws with the included Torx T20
wrench or T20 screwdriver.
3. Store these screws in a safe place as you will need
them later.
4. Put the charging station onto its back.
5. Now carefully pull the front cover upwards to lift it off
the charging station.
Installation on a mounting post

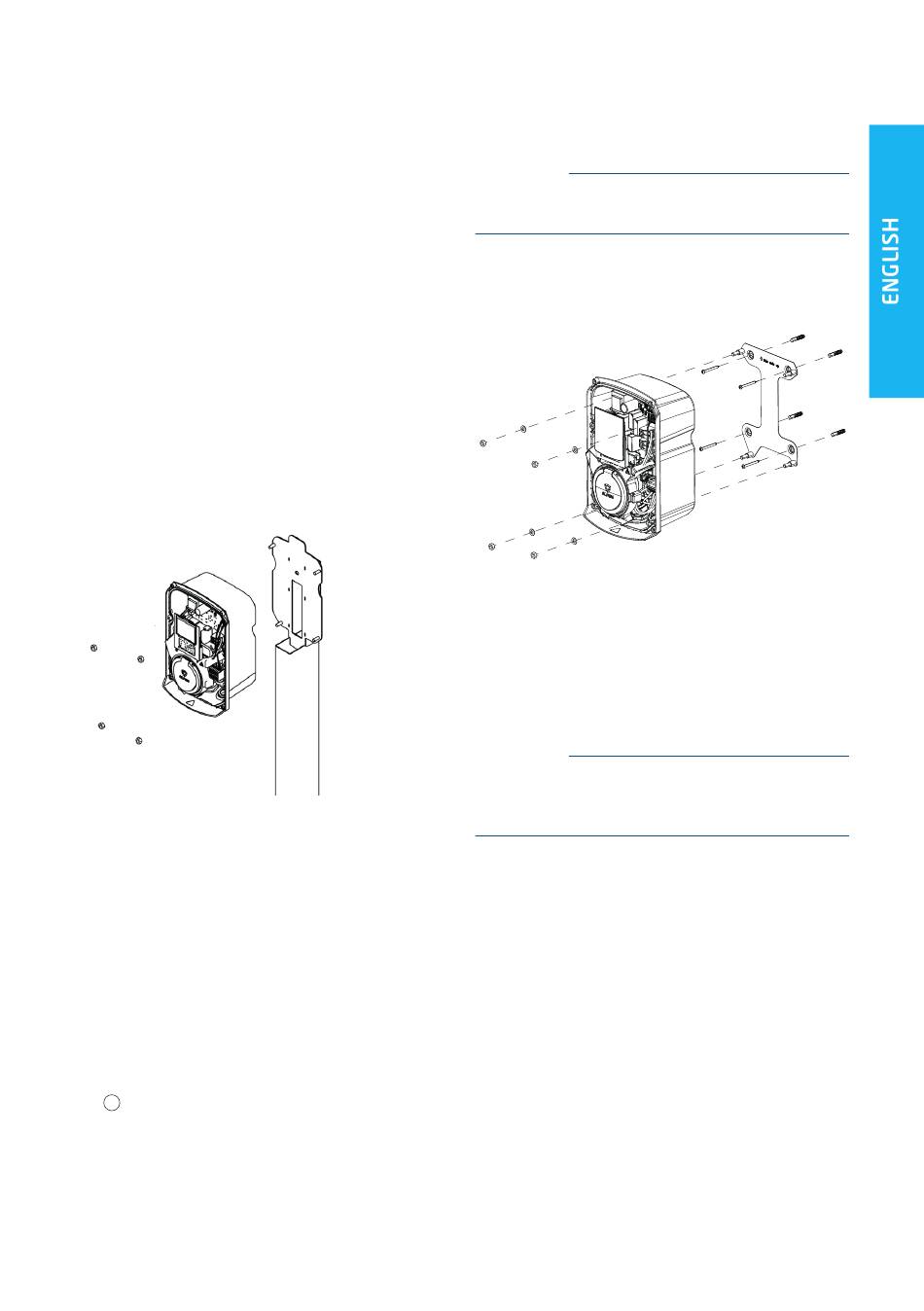

Figure 4: Post-mounted installation
1. Carefully remove the frame from the rear of the casing
as it is not required for installation on the mounting
post.
2. Place the Eve Single Pro-line DE over the threaded
ends on the mounting post. Even though the product
will be supported by the post directly, hold the charg
ing station to prevent the station from falling and
getting damaged.
3. Attach the Eve Single Pro-line DE to the pole with the
M8 nuts included in the package. Place the
yellow/green earth wire under the head of the nut
on the bottom right before fixing the nut into place
b (pp. 2-3)
10
Eve Single Pro-line DE manual | Version 1.0 | February 2020
3. ASSEMBLY AND CONNECTING
Wall mounting the charging station
REMARK
Always allow 50cm free space around the charging station
to allow for simple placing and removal of the case.
To properly install the charging station, use the frame as a
template for the drill holes.
Figure 5: Wall mounting with included frame
1. Remove the strips of adhesive tape to take the frame
off the rear of the casing.
2. Hold the frame in the desired location.
3. Use a spirit level to check if the frame is straight.
4. Mark the drilling holes through the holes in the frame.
REMARK
Check the stated sizes with a tape measure. The distances
between the drilling holes are: Horizontal, on top: 132mm/
horizontal, bottom: 150mm/Vertical: 210.5mm
5. Drill the holes on the marked locations.
6. Put the (nylon) plugs into the four drill holes.
7. Attach the frame of the charging station to the wall
with the screws (5 x 50mm) included in the package.
8. Place the Eve Single Pro-line DE onto the frame. Even
though the product will be directly supported by the
frame, hold it firmly to prevent the station from falling
and becoming damaged.
9. Attach the Eve Single Pro-line DE to the subframe
using the M8 washers and M8 nuts included in the
package. Place the yellow/green earth wire under the
washer and M8 nut on the bottom right before fixing
the nut into place.
