3. ASSEMBLY AND CONNECTING

4.1 Electrical installation

WARNING
Read and follow all of the safety instructions in this manual!
DANGER!
The electrical system must be disconnected from every
power source before performing any installation or
maintenance work!
1. Loosen the guide tube (M32) on the bottom, remove
the cable gland and disassemble it.
2. Place the ring over the power cable/charging cable.
3. Feed the power cable/charging cable into the charging
station and slide the cable gland (and, if needed, the
fi ller washer) and the nut over the cable.
4. Remove the insulation with a wire stripper to reveal
the wire cores far enough to fi t them into the
terminal block.
5. Attach the power cables to the connection clamps of
the fi lter block (see fi gure 8).
For installation of the model with socket, continue to
step 11.
6. Remove the cap (
7. Repeat the previous steps 2 - 4 for the charging cable
included in the package.
8. Remove the transparent subframe by removing the
three Torx T20 screws. (See fi gure 6)

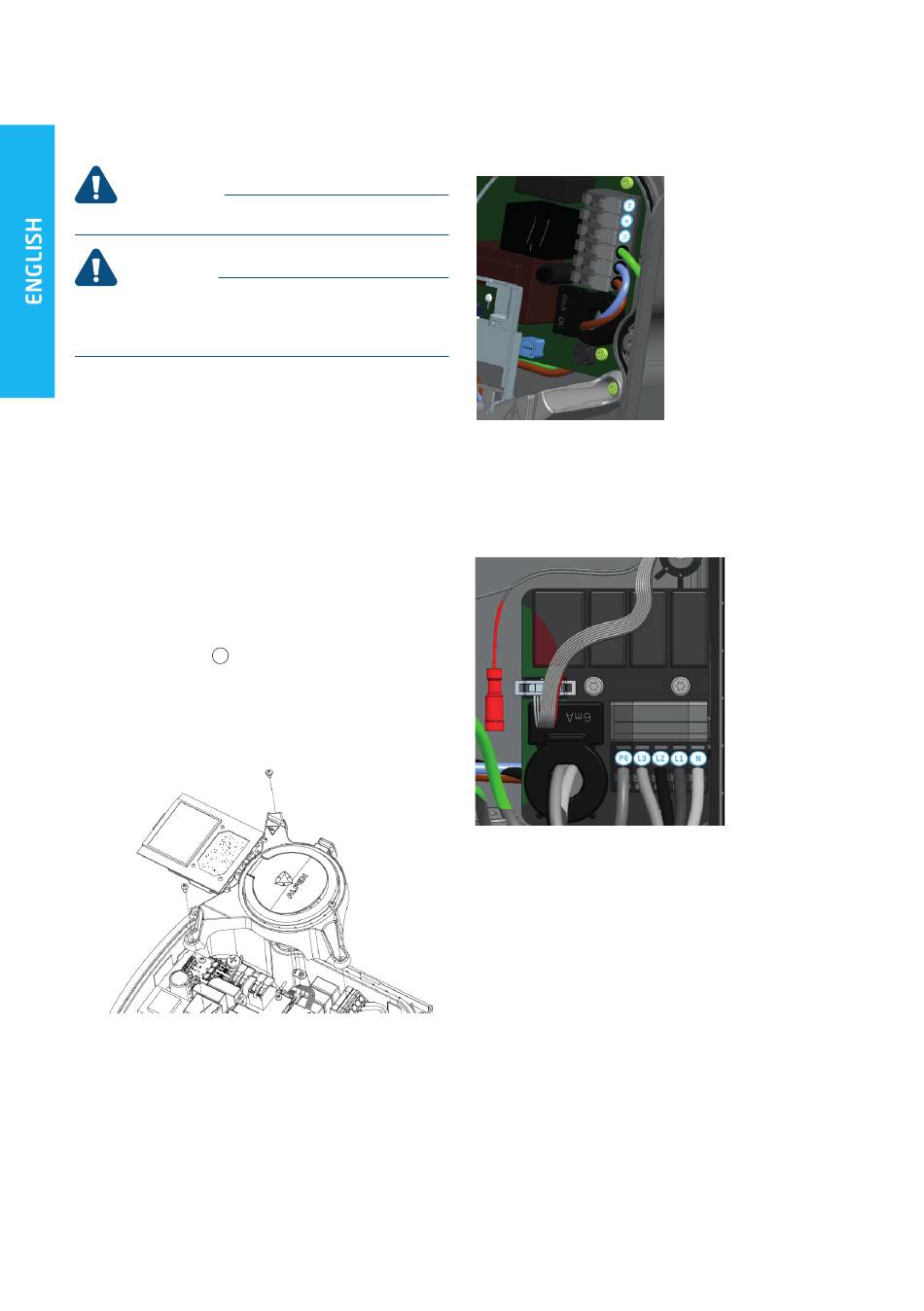

Figure 6: Detach subframe
9. Push the charging cable further in and connect the
wires to the outgoing clamps on the platform. See
fi gure 7 for the location on the 3-phase Pro-line
model. With the 1-phase model, only the connection
points for N and L1 are available.
22
on page 2).
14
Figure 7: Attaching individual charging cable wires..
10. Attach the Control Pilot (CP) connector to the red
connection cable. This is right next to the connection
terminal for the power cables. See fi gure 8.
Figure 8: Connection clamps power cable and Control Pilot (CP)
connector for the charging cable (red) to Pro-line
11. Tighten the cable guide tube fi rmly so that the power
cable/charging cable does not have any slack.
12. Reattach the transparent subframe if you took it off
(tethered models only)
13. Press the front cover back onto the charging station.
14. Screw the front cover back onto the charging station
with the Torx T20 wrench. Use all six screws for this.
