12 V - 15 V= are safely disconnected.
Cut the rubber gasket you find in the top
part of the device. Insert the ribbon cable
(found in your display module's box) through
the electronics box rubber gasket into the
module housing. Later, you will use the ribbon
cable's pin header inside the module housing
to establish a connection to the display
module.
Now connect the ribbon cable's pin header
(inside the electronics box) to the correspon-
ding port of the Electronics Add-On Voice /
Display / Language.
Electronics Add-On Voice / Display / Real Time Clock
fastening materials included
www.behnke-online.com
Instructions Electronic Add-On Voice / Display / Real Time Clock
Connect the Electronics Add-On Voice /
Display / Real Time Clock to the correspon-
ding main board port.
Use the screws found in the box to fasten
the Electronics Add-On Voice / Display / Real
Time Clock onto the intended stud bolts of the
electronics box.
Now connect the ribbon cable's pin header
(inside the module housing) to the correspon-
ding port of the display module (back side).
Now connect the a/b telephone line as well as
the power supply 12 V - 15 V=.

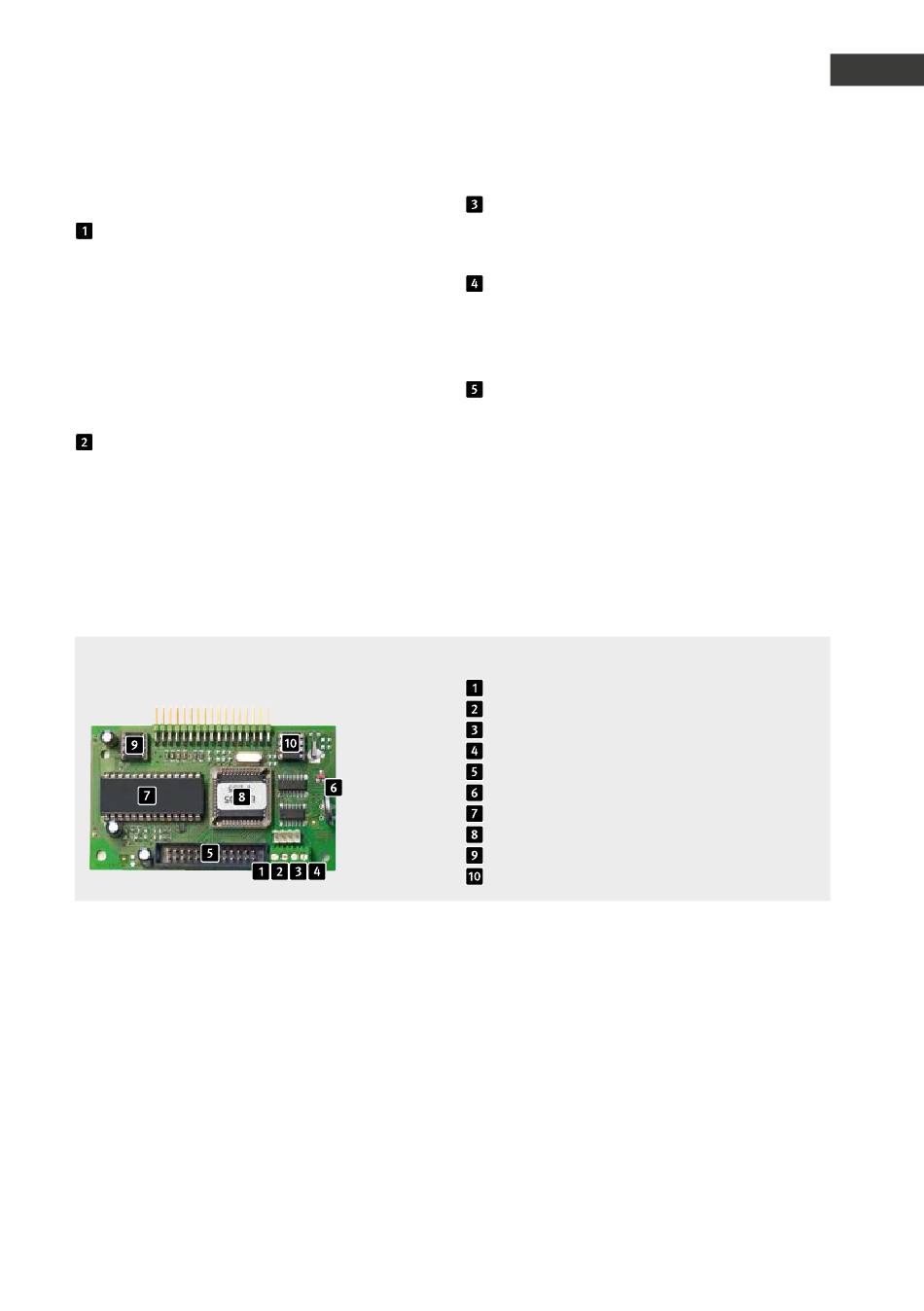

Serial Port
TXD
DTR
GND
RXD
Cable for display module connection
Battery for Real Time Clock
Voice-messaging chip
CPU
EEprom
Real Time Clock
